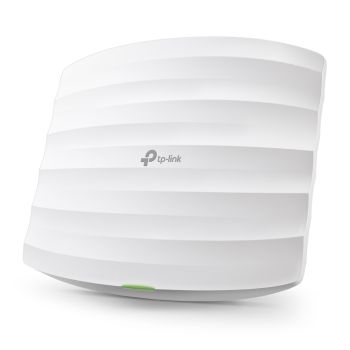

TP-Link EAP225
Omada AC1350 Wireless MU-MIMO Gigabit Deckenmontage-Access Point content_copy

Merkmale

Abmessungen (BxTxH): 18 x 18 x 4,75 cm

Gesamtdatenrate von bis zu 1167 Mbit/s

PoE-Unterstützung nach IEEE802.3af für einfache, kostengünstige Installation ohne Verlegen neuer Kabel

Simultanes Dualband: 300 Mbit/s WLAN-Geschwindigkeit auf 2,4 und 867 Mbit/s auf 5 GHz

Unterstützt PoE nach 802.3af für einfache, kostengünstige Installation ohne Verlegen neuer Kabel

Multi-SSID stellt für verschiedene Benutzergruppen verschiedene VLAN-Zugänge bereit

QoS stellt sicher, dass auch zeitkritische Anwendungen wie Streaming oder Telefonie flüssig ablaufen

Datenübertragungsrate1200 Mbps

Frequenzband2.4 GHz,5 GHz

4 interne Antennen

Ein-/Ausschalter

LED-Anzeigen: Leistung, WLAN

1 Ethernet-LAN-Anschluss (RJ-45)

DC-Anschluss

Auch im Standalone-AP-Modus einsetzbar (erfordert keinen Controller)

Einfache Montage an der Wand oder der Decke





Lieferumfang

AC1200-Dualband-Gigabit-WLAN-Accesspoint zur Deckenmontage EAP225

Spannungsadapter

Montagekit

Installationsanleitung



An Affordable Business-Class

802.11ac MU-MIMO Wi-Fi Solution


Superior Wi-Fi Speeds with MU-MIMO Technology

Outfitted with the latest 802.11ac Wave 2 MU-MIMO technology, the EAP225 easily delivers dual-band Wi-Fi speeds of up to 1350 Mbps to multiple devices at the same time.


Cloud Centralized Management

• Anytime, Anywhere

Omada Hardware Controller OC200 and Omada Software Controller make it easy to manage and monitor the whole Omada network in real-time, while cloud service enables remote and secure access no matter where you find yourself.


Secure Guest Network with Facebook Wi-Fi and SMS Authentication

Captive portal helps maintain only authorized guests to use the network, presenting devices with a convenient, user-friendly authentication method to grant Wi-Fi access. The addition of SMS and Facebook authentication simplifies the captive portal even further to simplify connectivity and boost your business.


Multiple PoE Options for Easy Installation

EAP225 supports both 802.3af PoE and Passive PoE power supply, can be either powered by a PoE switch or the provided PoE adapter, making deployment effortless and flexible.


Easy Management with the Omada App

Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.


Meet Our New Hero Product!

The OC200 Omada Hardware Controller is dedicated to providing centralized management for the whole Omada network.

Antenna
Antenna type	Internal
Antenna direction type	Omni-directional
Antenna features	Integrated antenna
Antennas quantity	5
Antenna gain level (max)	5 dBi
Certificates
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS
Design
Placement	Ceiling, Wall
Product colour	White
Cable lock slot type	Kensington
LED indicators	Power, WLAN
Cable lock slot
On/off switch
Reset button
Features
Maximum data transfer rate	1350 Mbit/s
Maximum data transfer rate (2.4 GHz)	450 Mbit/s
Maximum data transfer rate (5 GHz)	867 Mbit/s
Ethernet LAN data rates	10,100,1000 Mbit/s
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af
Cabling technology	10/100/1000Base-T(X)
MIMO type	Multi User MIMO
Virtual LAN features	VLAN mapping
Transmitting power (CE)	23 dBm
Transmitting power (FCC)	24 dBm
2.4 GHz
5 GHz
6 GHz
MIMO
Wi-Fi Multimedia (WMM)/(WME)
VLAN support
Rate limiting
Band steering
Airtime Fairness (ATF)
Quality of Service (QoS) support
BeamForming
Logistics data
Harmonized System (HS) code	85176990
Management features
Web-based management
Syslog
Mobile network
SIM card slot
Operational conditions
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 90%
Packaging content
Quantity per pack	1 pc(s)
AC adapter included
PoE adapter included
Mounting kit
Quick start guide
Packaging data
Package width	228 mm
Package depth	340 mm
Package height	65 mm
Package weight	910 g
Package type	Box
Performance
Compatible operating systems	Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Linux
Ports & interfaces
Ethernet LAN (RJ-45) ports	1
DC-in jack
Power
Power over Ethernet (PoE) type supported	Passive PoE
Output voltage	12 V
Output current	1.5 A
Power consumption (typical)	10.15 W
Power over Ethernet (PoE)
Security
Security algorithms	64-bit WEP, 128-bit WEP, 152-bit WEP, SSID, WPA, WPA-PSK, WPA2, WPA2-PSK
Service Set Identifier (SSID) features	Multiple SSIDs
Number of SSID supported	16
MAC address filtering
Access Control List (ACL)
Sustainability
Sustainability compliance
Weight & dimensions
Width	205.5 mm
Depth	181.5 mm
Height	37.1 mm

---
