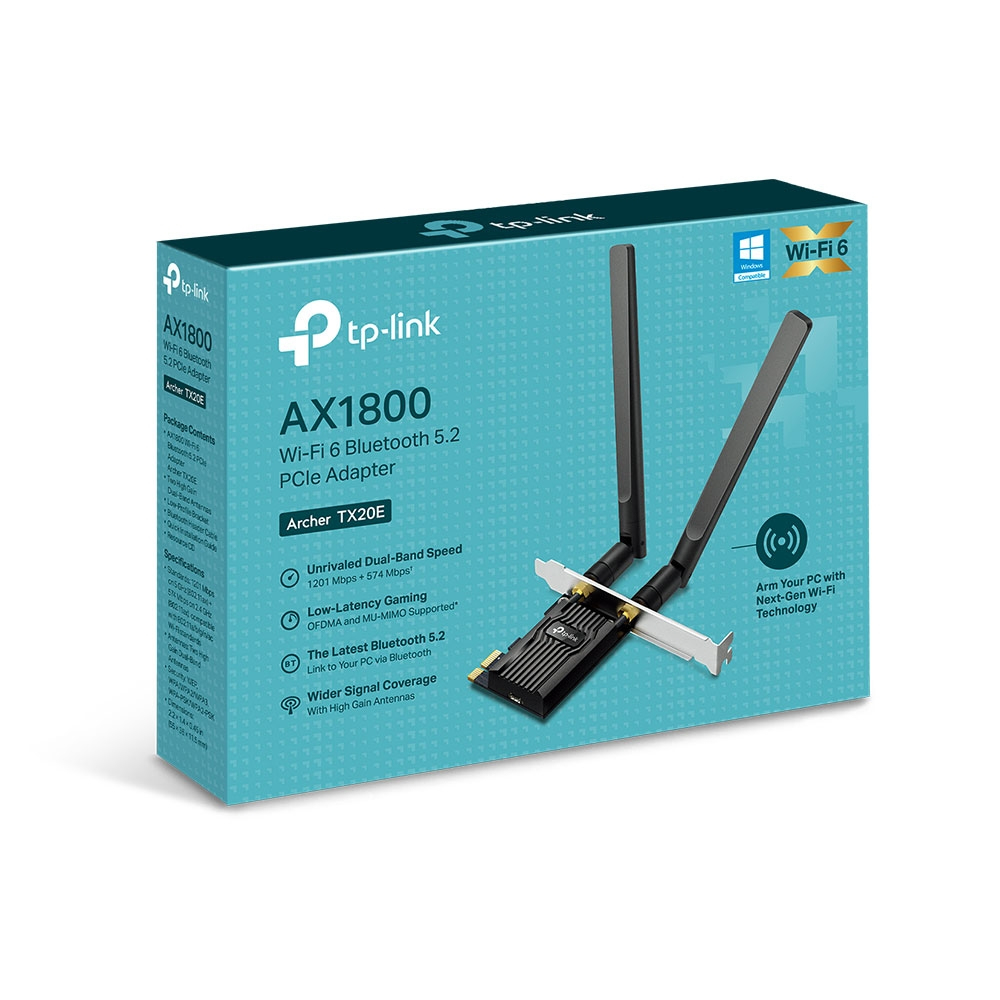

TP-LINK WLAN 1775MBit AX1800 Wi-Fi 6 Bluetooth 5.2 PCIe Adapter LP inkl. Low-Profile Slotblech
|
37,90 EUR |
|
|
( 45,10 EUR incl. VAT ) ≈ £32.10 | ≈ $42.41 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| End-Of-Life: | 06. Sep 2026 |
|---|---|
| Datasheet: | file_download Download |
| Lieske Part No.: | 1130198 |
| Mfg Part No: | ARCHER TX20E |
| UPC/EAN: | 4897098688809 |
| Weight: | 0.254 kg |
| Type: | WRLS |
Further Wireless DSL Router from TP-LinkFurther products in category Wireless DSL Router
All products of TP-Link
Product information for TP-Link ARCHER TX20E:
Forget about buying a new PC. The TX20U Plus delivers powerful dual-band WiFi 6 directly to your device - for exceptional connectivity and speeds of up to 1800 Mbps.
Highlights
- Fully featured Wi-Fi 6
- Warp speed up to 1800 Mbit/s
- Excellent coverage
- Bluetooth 5.2
- State-of-the-art security
- data stick
- ear category (ElektroG): relevant, category 6: small IT devices - and telecommunications technology, small devices for IT and telecommunications technology B2C
- Operating temperature max: 40 °C
- Operating temperature min: 0 °C
- Area of application: Indoor
- Connection: USB
- Number of USB ports: 1
- Number Antenna connections: 2
- Antenna technology: external
- Reception standard: WLAN
- WLAN standard: IEEE 802.11a - WiFi 2, IEEE 802.11b - WiFi 1, IEEE 802.11g - WiFi 3, IEEE 802.11n - WiFi 4, IEEE 802.11ac - WiFi 5, IEEE 802.11ax - WiFi 6
- Color: Black
- Height: 11.5 mm
- Length/Depth: 36 mm
- Width: 55 mm
- TP-Link AX1800 Wi-Fi 6 Bluetooth 5.2 PCIe adapter Archer TX20E
- 2x dual-band antenna
- low-profile mount
- quick start guide
Product type
Specifications
Connections
Antenna
Data transmission
Basic features
Scope of delivery
| Design | |
| Component for | PC/Server |
| Product colour | Black |
| Antenna design | External |
| Transmitting power (CE) | 23 dBm |
| Transmitting power (FCC) | 27 dBm |
| Operating modes | Infrastructure mode |
| Internal | |
| Antenna | |
| Plug and Play | |
| Network | |
| Maximum data transfer rate | 1800 Mbit/s |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| WLAN data transfer rates supported | 11,54,300,574,867,1200 Mbit/s |
| Modulation | 16-QAM, 64-QAM, 256-QAM, 1024-QAM, CCK, DBPSK, DQPSK, OFDM |
| Security algorithms | 64-bit WEP, 128-bit WEP, 802.1x RADIUS, WPA, WPA-PSK, WPA2, WPA2-PSK, WPA3 |
| Bluetooth version | 5.2 |
| Wi-Fi | |
| Bluetooth | |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Packaging content | |
| Mounting brackets included | |
| Resource CD | |
| Bluetooth header cable | |
| Quick installation guide | |
| Packaging data | |
| Package width | 201.5 mm |
| Package depth | 152.5 mm |
| Package height | 41.5 mm |
| Package weight | 220 g |
| Ports & interfaces | |
| Connectivity technology | Wireless |
| Host interface | PCI Express |
| Interface | WLAN / Bluetooth |
| Sustainability | |
| Sustainability compliance | |
| System requirements | |
| Windows operating systems supported | Windows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home x64, Windows 10 Pro x64, Windows 10 x64, Windows 11 Enterprise x64, Windows 11 x64 |
| Technical details | |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
| Weight & dimensions | |
| Width | 120.8 mm |
| Depth | 78.5 mm |
| Height | 20.9 mm |
