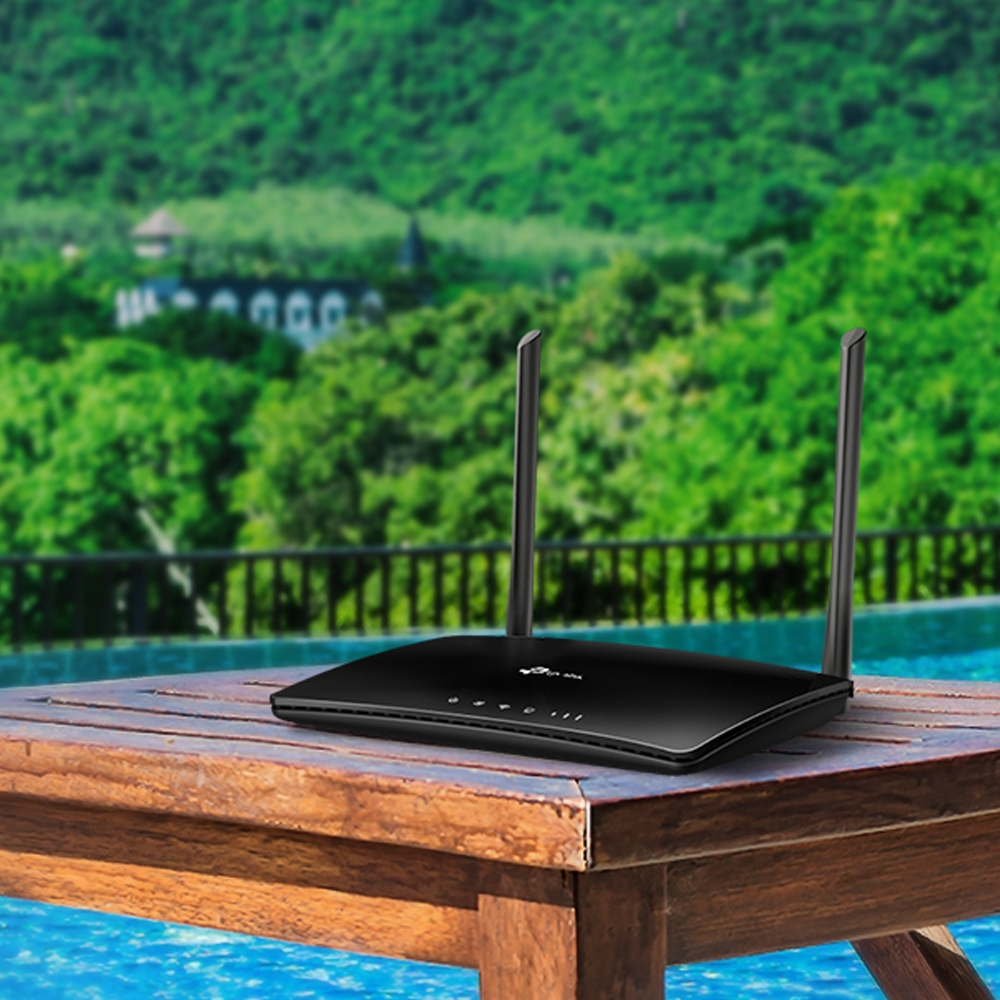

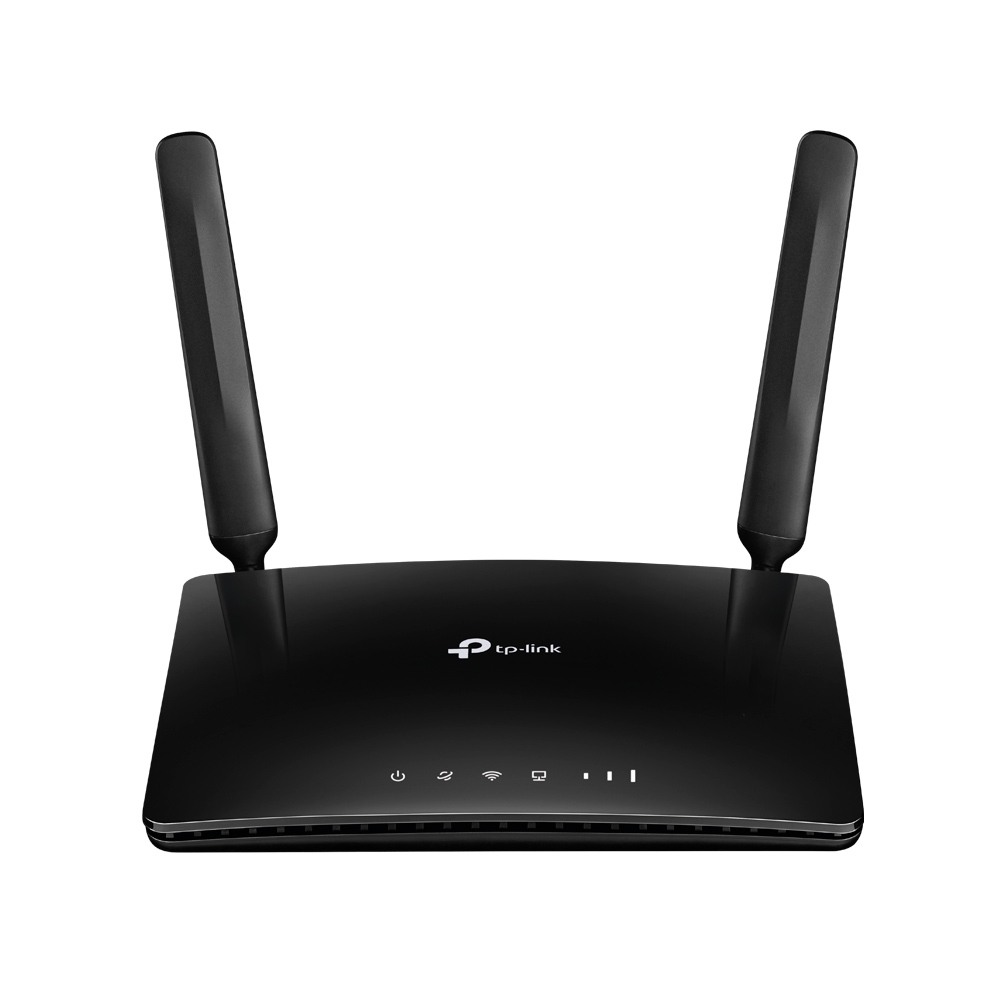

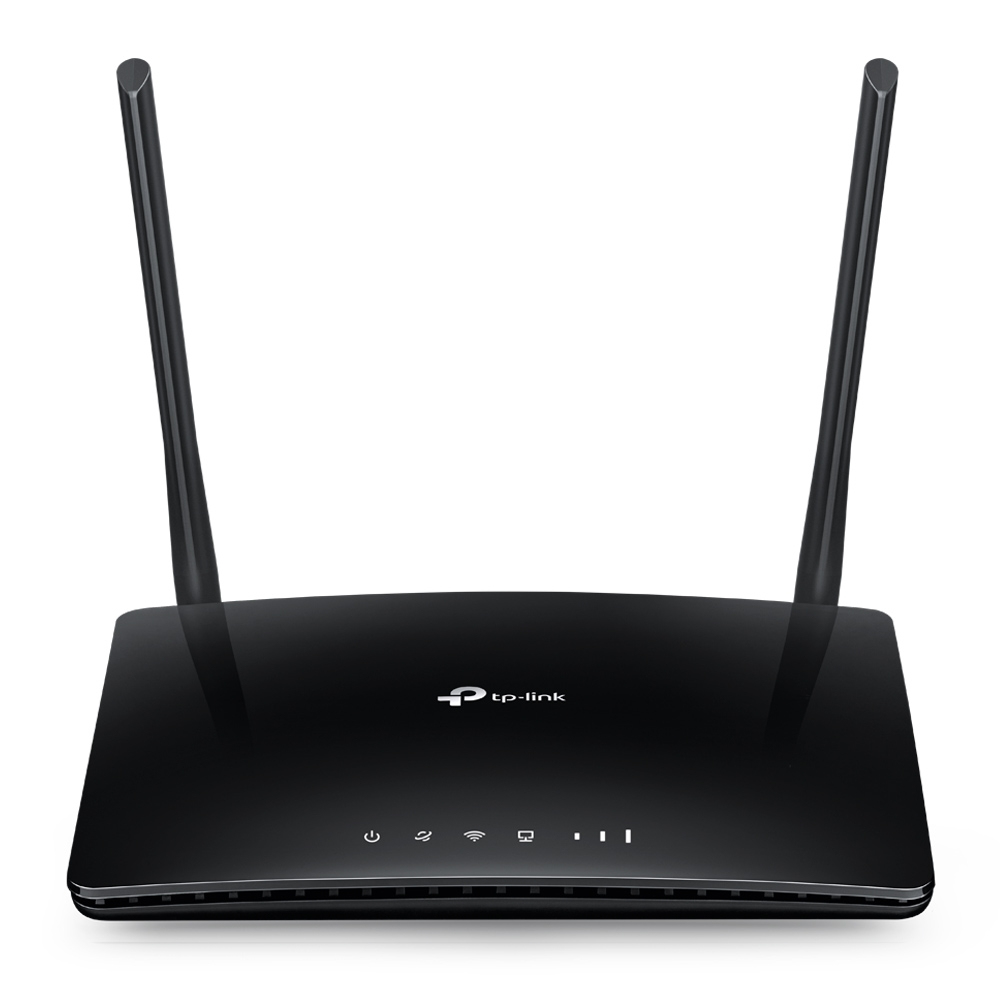

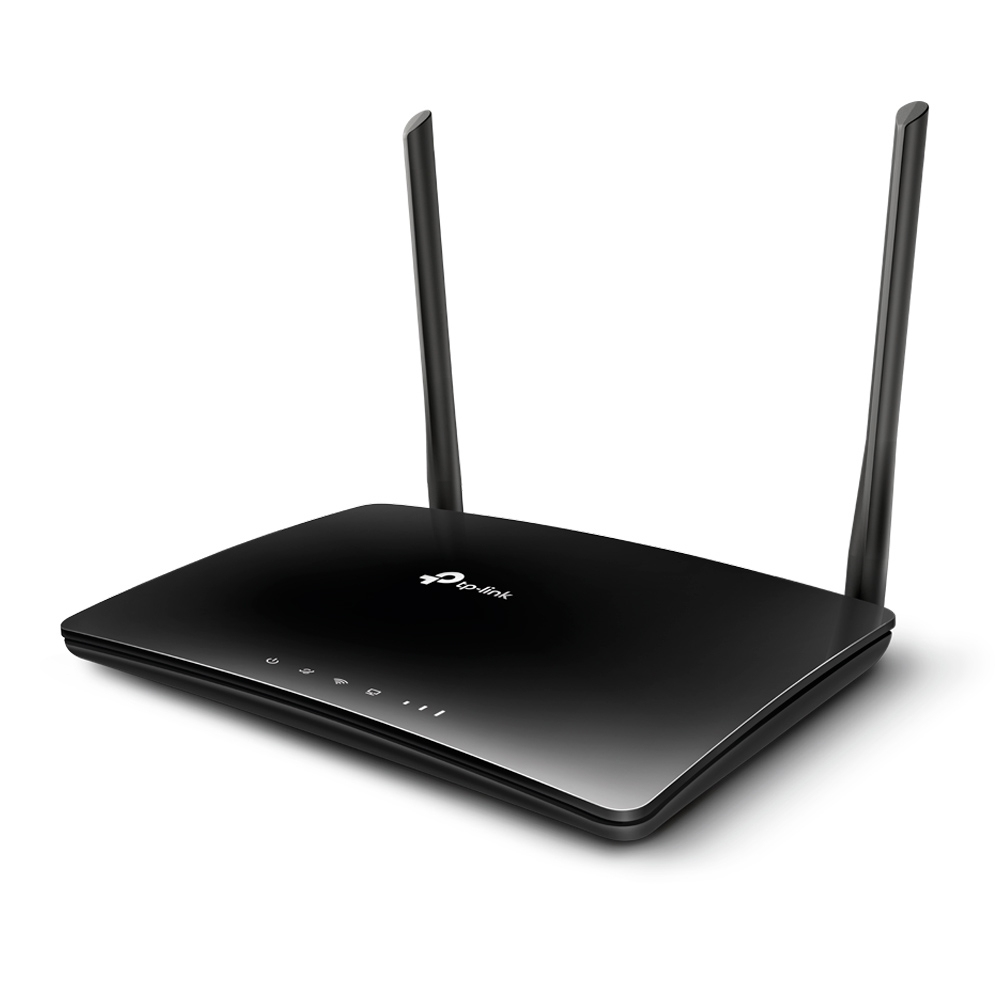

TP-LINK Archer MR200 IEEE 802.11n Cellular Modem/Wireless Router - 4G - LTE 800 - LTE content_copy

Shares your 4G LTE network with multiple Wi-Fi devices and enjoy download speeds of up to 150Mbps Powerful, integrated antennas provide stable wireless connections and better coverage Requires no configuration, just insert a SIM card and turn it on to enjoy a fast wireless connection Creates simultaneous dual band Wi-Fi networks, with maximum speeds of up to 300Mbps on the 2.4GHz band and 433Mbps on the 5GHz band Offers options and flexibility with the LAN/WAN port, allowing you to choose your connection type Share Your 4G LTE Network Take full advantage of your cutting-edge 4G LTE network with the Archer MR200, which can achieve download speeds of up to 150Mbps. The Archer MR200 allows you to share your 4G LTE network with multiple Wi-Fi devices so you can enjoy uninterrupted HD movies, rapid file downloads, and video chats that won't freeze up.

Great Coverage and Dual Band Wi-Fi The 4G LTE router creates a simultaneous dual band Wi-Fi network that can deliver data at speeds of up to 733Mbps. The two distinct wireless networks, utilizing the 2.4GHz and 5GHz bands, provide optimized performance and minimize signal interference. The incorporation of advanced antennas and the latest wireless technology allows you to enjoy stable connections and incredible coverage.

No Configuration Required With an integrated 4G LTE modem and a built-in SIM card slot, all you need to do insert a SIM card and turn on the Archer MR200. Enjoying fast, stable Wi-Fi on a 4G LTE network has never been easier Wi-Fi Where You Need It The Archer MR200 offers unmatched convenience and versatility. The ability to quickly establish powerful wireless networks can be tremendously important. The Archer MR200 is the perfect solution whether you're at home or working in a remote location. Just plug it in to boost on-site productivity and stay connected in a diverse range of environments. From the exhibition center to the RV, the Archer MR200 has you covered.

Available WAN Connection as Backup With the inclusion of the WAN/LAN port, the Archer MR200 can also support a wide variety of connection types, including cable, fiber, and DSL modems.

Antenna
Antenna design	External
Antennas quantity	2
Transmit power	0 dBmW
Certificates
Certification	CE, RoHS
Design
Product colour	Black
LED indicators	LAN, Power, WAN, WLAN
Product type	Tabletop router
On/off switch
Features
Processor model	Qualcomm Atheros
Built-in processor
Plug and Play
Management features
Web-based management
Quality of Service (QoS) support
Reset button
Mobile network
Mobile network generation	4G
3G standards	DC-HSPA+, HSPA, HSPA+, UMTS
4G standard	LTE
4G bands supported	800,900,1800,1900,2100,2300,2500,2600 MHz
3G bands supported	900,2100 MHz
3G
4G
Network
Ethernet LAN interface type	Fast Ethernet
Ethernet LAN data rates	10,100 Mbit/s
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
VPN tunnels quantity	10
VPN support	PPTP VPN, IPSec VPN, OpenVPN
Receiver sensitivity	5GHz: 11a 54M: -74dBm 11ac HT20: -67dBm 11ac HT40: -64dBm 11ac HT80: -60dBm 11n HT20: -71dBm 11n HT40: -70dBm 2.4G: 11g 54M: -73dBm 11n HT20: -73dBm 11n HT40: -67dBm
Ethernet LAN
Port forwarding
Dynamic DNS (DDNS)
VPN Passthrough
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Packaging content
Cables included	LAN (RJ-45)
AC adapter included
Quick installation guide
Quick start guide

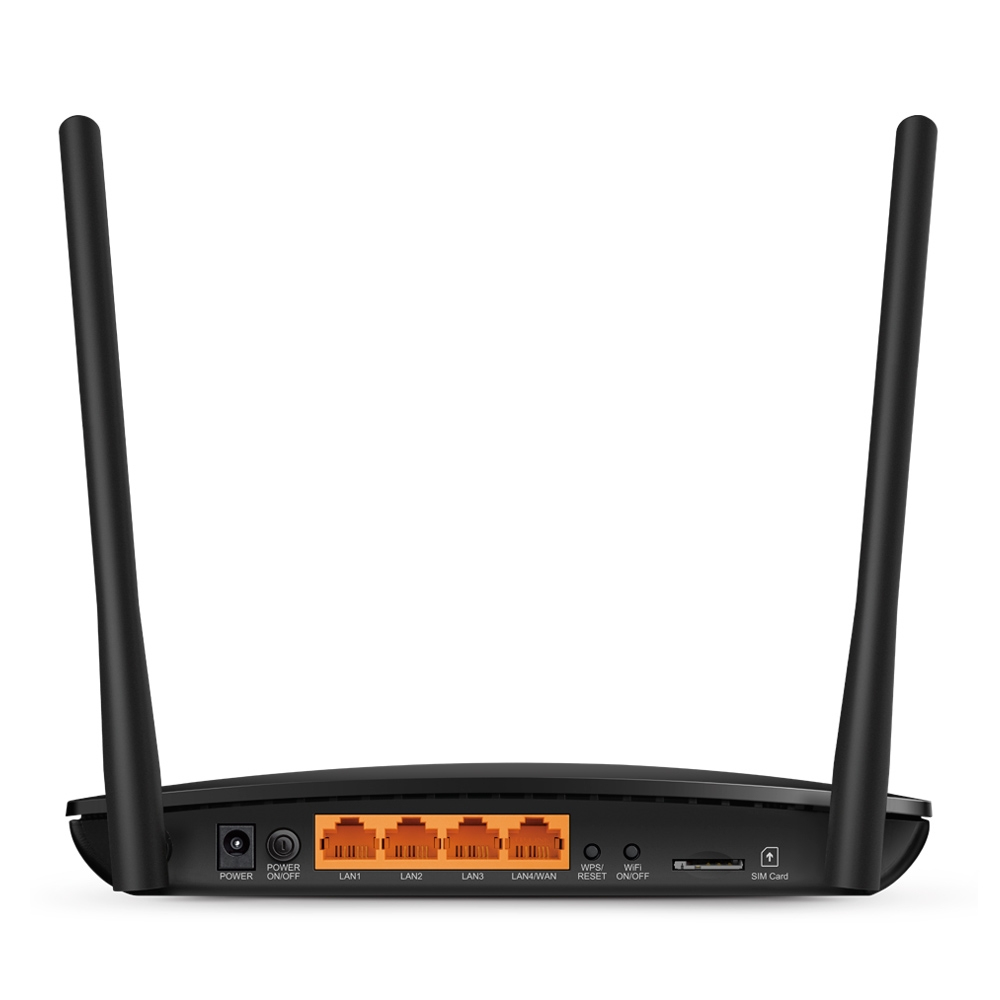

Ports & interfaces
Ethernet LAN (RJ-45) ports	4
USB port
Memory card slot(s)
DC-in jack
Power
Power source type	DC
Output voltage	12 V
Output current	1 A
Protocols
Supported network protocols	IPv4, IPv6
DHCP client
DHCP server
Universal Plug and Play (UPnP)
Security
Security algorithms	64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Firewall
Guest access
Stateful Packet Inspection (SPI)
DoS attack prevention
Filtering
MAC address filtering
IP address filtering
URL filtering
DMZ support
System requirements
Browser supported	Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0
Windows operating systems supported	Windows 10, Windows 2000, Windows 7, Windows 8, Windows 8.1, Windows 98SE, Windows NT, Windows Vista, Windows XP
Linux operating systems supported
Mac operating systems supported
WAN connection
WAN connection type	RJ-45
Ethernet WAN
DSL WAN
SIM card slot
3G/4G USB modem compatibility
Weight & dimensions
Width	202 mm
Depth	145 mm
Height	34 mm
Wireless LAN features
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	733 Mbit/s
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
WLAN data transfer rate (first band)	300 Mbit/s
WLAN data transfer rate (second band)	433 Mbit/s

---
