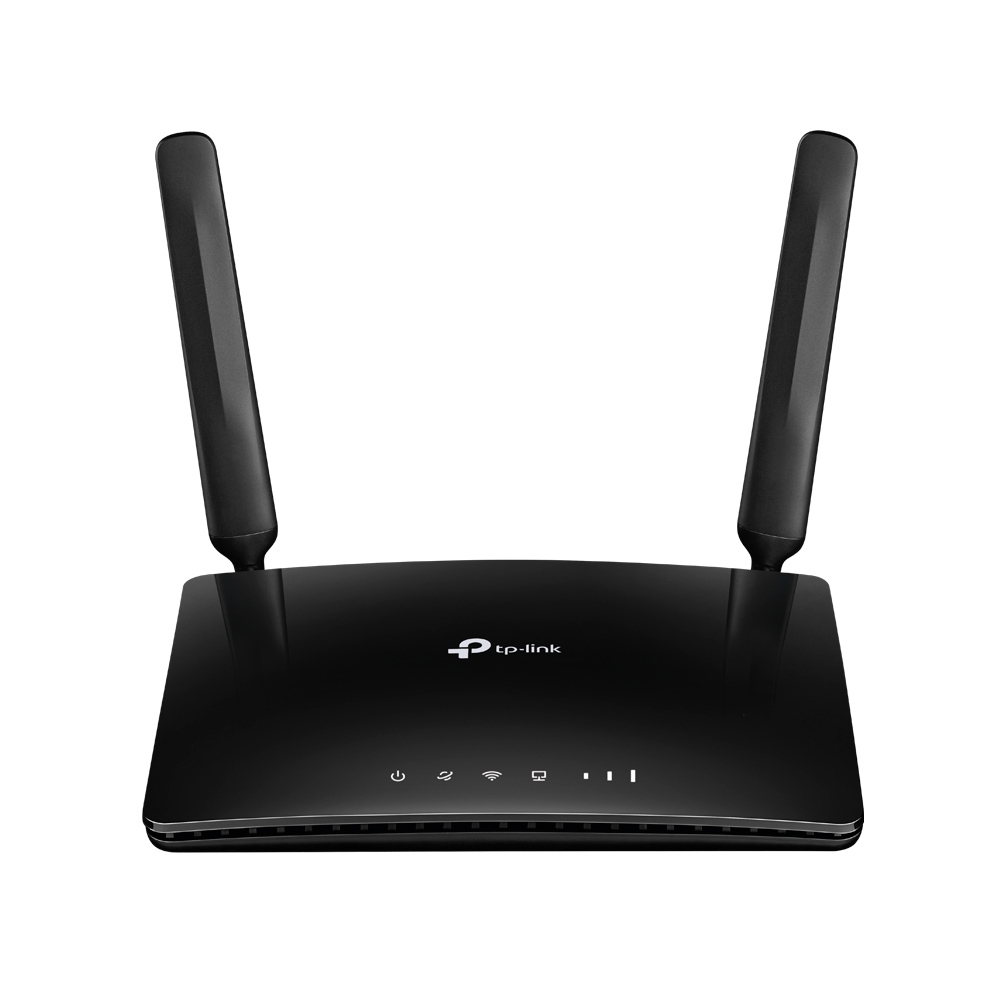

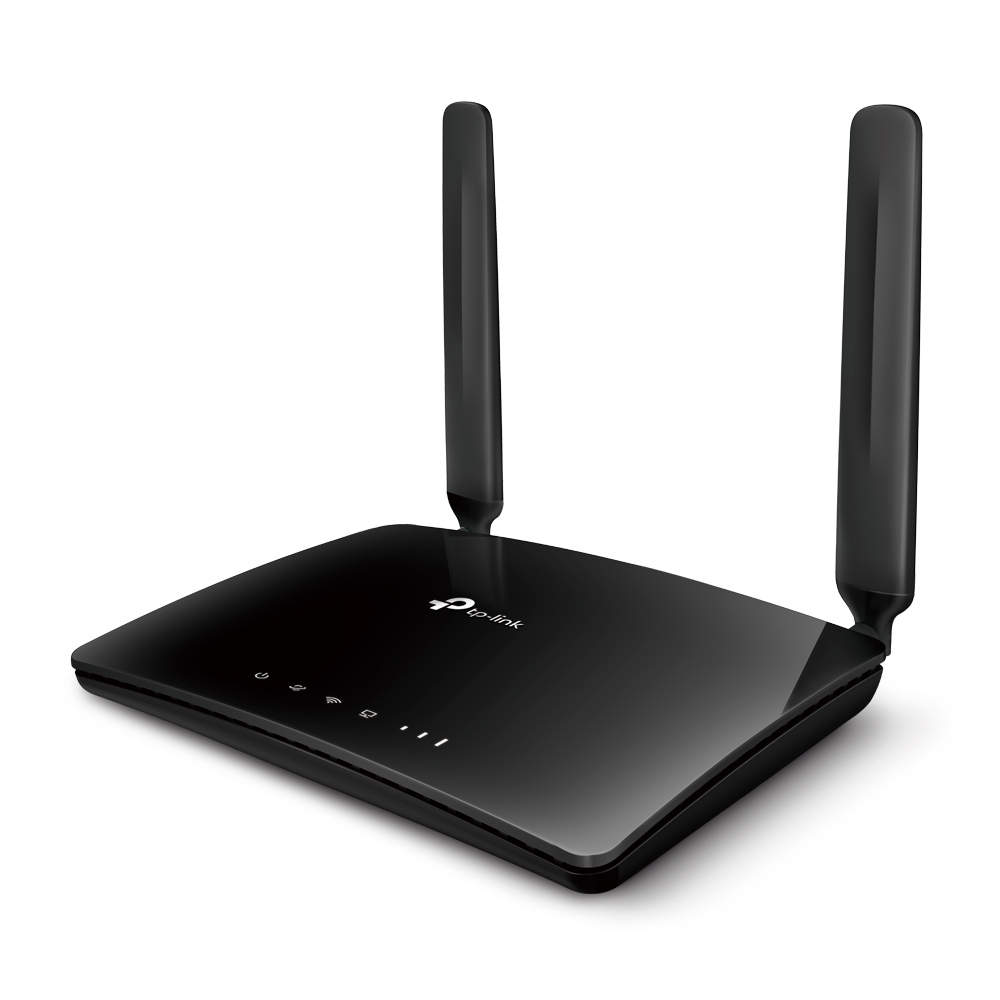

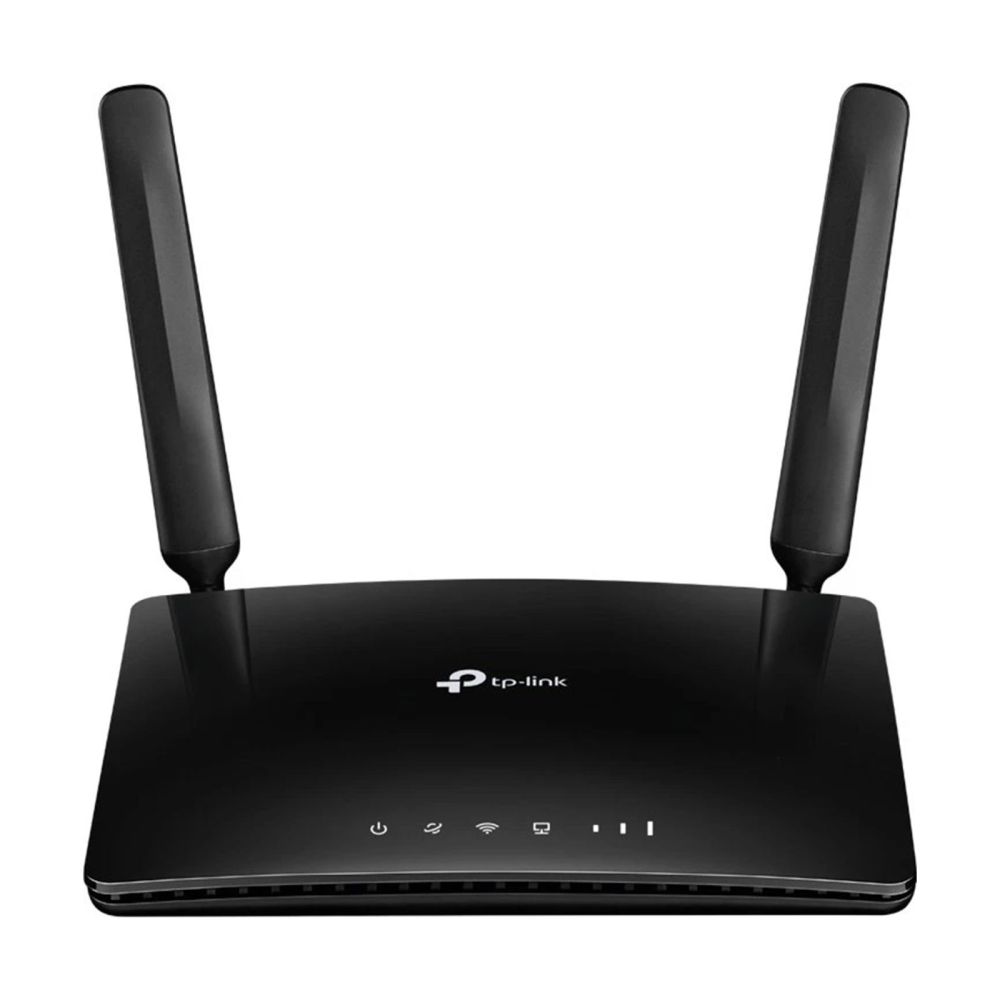

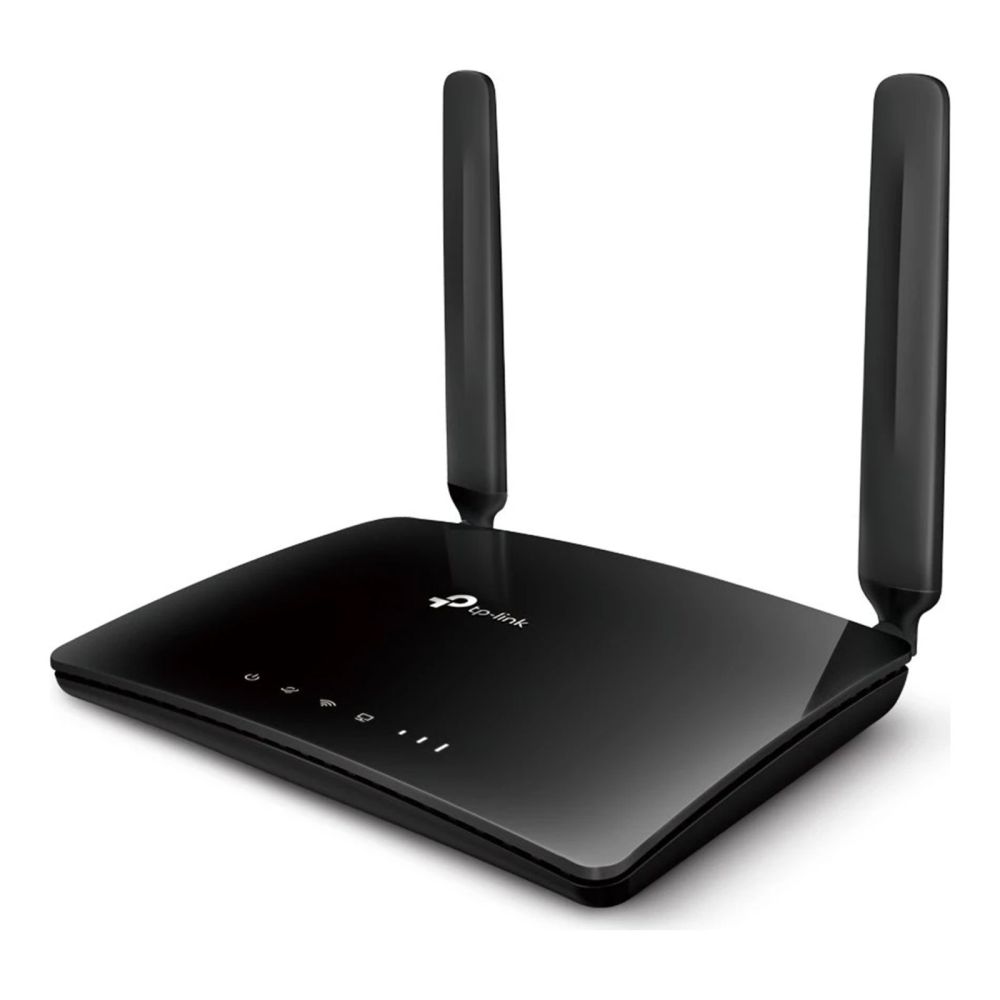

TP-Link Archer MR200 AC750 WLAN LTE Router (3G & 4G) content_copy

The 4G LTE router from TP-Link offers you a wide range of possible uses, whether in the office, on the go or at home. Thanks to the SIM card slot, you are mobile exactly where you need it.

Highlights

• Share your 4G LTE network with multiple WiFi devices
• Download speeds of up to 150 Mbit/s and uploads of up to 50 Mbit/s
• Integrated and powerful antennas for a stable WiFi connection and good coverage
• Ready to use: Simple Insert the SIM card and start surfing
• 733 Mbit/s dual-band Wi-Fi
• Backwards compatible: 4G/3G and 2G
• Wi-Fi speeds of up to 733 Mbit/s in the 2.4 GHz and 5 GHz bands
• 802.11 ac standard: three times faster data transfer than 802.11n
• Less susceptible to interference thanks to the additional 5 GHz band
• IP QoS: Automatic prioritization of streams and games
• LAN/WAN port: Allows connection to standard cables, fiber optic or xDSL modems
• On/Off Off switch for WLAN
• Secure guest access
• Set access guidelines for connected devices
• Bandwidth management
• Encryption for secure networks: WPA-PSK/WPA2-PSK

Product type

• Stationary router
• ear category (ElektroG): relevant, category 6: small IT devices - and telecommunications technology, small devices for IT and telecommunications technology B2C

Specifications

• Area of application: Indoor

Power supply

• Power supply: external

Data transmission

• WLAN standard: IEEE 802.11b - WiFi 1, IEEE 802.11g - WiFi 3, IEEE 802.11 n - WiFi 4

Basic features

• Color: Black
• Height: 141 mm
• Length/Depth: 33.6 mm
• Width: 202 mm

Scope of delivery

• TP-LINK Archer MR200 AC750 WLAN LTE router
• 2 antennas
• RJ45 Ethernet cable
• Voltage adapter
• Quick installation instructions
• Micro and Nano SIM card adapters

Antenna
Antenna design	External
Antennas quantity	2
Transmit power	0 dBmW
Detachable antenna(s)
Certificates
Certification	CE, FCC, RoHS
Design
Product colour	Black
Product type	Tabletop router
On/off switch
Logistics data
Harmonized System (HS) code	85176990
Management features
Web-based management
Wi-Fi Multimedia (WMM)/(WME)
Quality of Service (QoS) support
Reset button
WPS push button
Mobile network
Mobile network generation	4G
2G standards	Edge, GPRS, GSM
3G standards	DC-HSPA+, HSPA, HSPA+, UMTS
4G standard	LTE
GSM bands supported	850,900,1800,1900 MHz
4G bands supported	800,900,1800,2100,2600 MHz
3G bands supported	900,2100 MHz
SIM card type	MicroSIM
3G
4G
Network
Ethernet LAN interface type	Fast Ethernet
Ethernet LAN data rates	10,100 Mbit/s
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
VPN server	PPTP VPN, IPSec VPN , OpenVPN
VPN support	PPTP, L2TP, IPSec
Receiver sensitivity	5GHz: 11a 54M: -74dBm 11ac HT20: -67dBm 11ac HT40: -64dBm 11ac HT80 : -60dBm 11n HT20: -71dBm 11n HT40: -70dBm 2.4G: 11g 54M: -76dBm 11n HT20: -73dBm 11n HT40: -67dBm
Ethernet LAN
Port triggering
Dynamic DNS (DDNS)
VPN Passthrough
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Other features
Input current	1 A
Packaging content
Cables included	LAN (RJ-45)
AC adapter included
Quick start guide
Packaging data
Package width	307 mm
Package depth	223 mm
Package height	70 mm
Package weight	620 g
Package type	Box
Micro to standard SIM card adapter
Nano to standard SIM card adapter

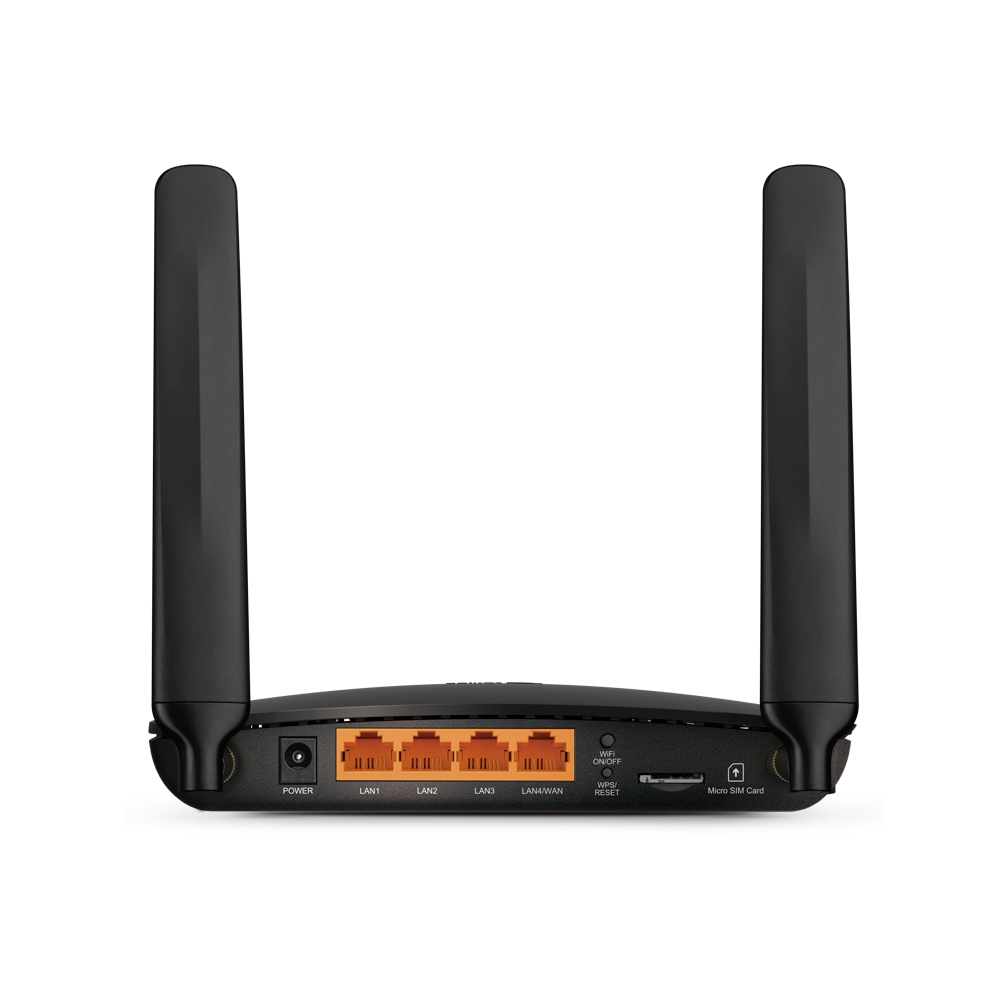

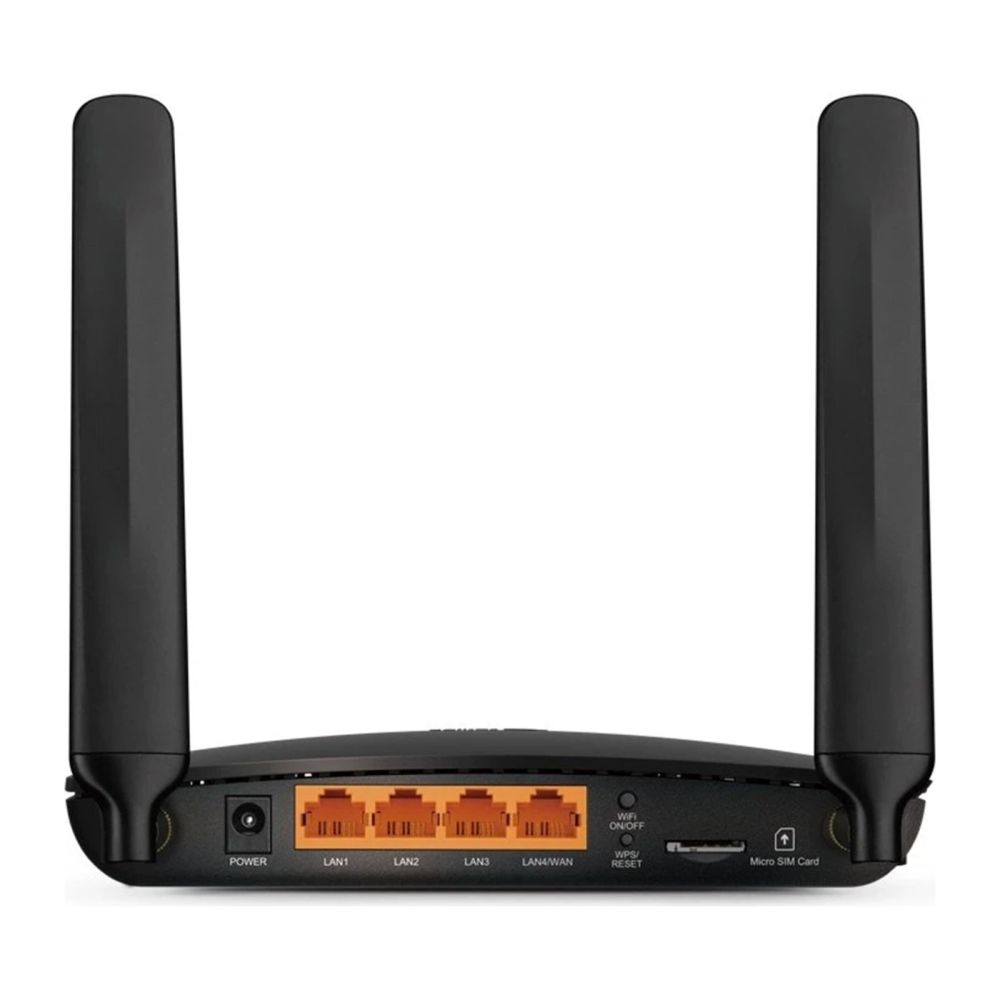

Ports & interfaces
Ethernet LAN (RJ-45) ports	4
USB port
Memory card slot(s)
DC-in jack
Power
Power source type	AC
Output voltage	12 V
Output current	1 A
Protocols
Data link protocols	IPv4, IPv6
DHCP client
DHCP server
Universal Plug and Play (UPnP)
Security
Security algorithms	64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Firewall security	DoS, SPI
Firewall
Guest access
Access Control List (ACL)
Stateful Packet Inspection (SPI)
DoS attack prevention
Filtering
MAC address filtering
IP address filtering
System requirements
Windows operating systems supported	Windows 10, Windows 2000, Windows 7, Windows 8, Windows 8.1, Windows 98SE, Windows NT, Windows Vista, Windows XP
Linux operating systems supported
Mac operating systems supported
WAN connection
Ethernet WAN
DSL WAN
SIM card slot
3G/4G USB modem compatibility
Weight & dimensions
Width	202 mm
Depth	141 mm
Height	33.6 mm
Wireless LAN features
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	433 Mbit/s
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
WLAN data transfer rate (first band)	300 Mbit/s
WLAN data transfer rate (second band)	433 Mbit/s

---
