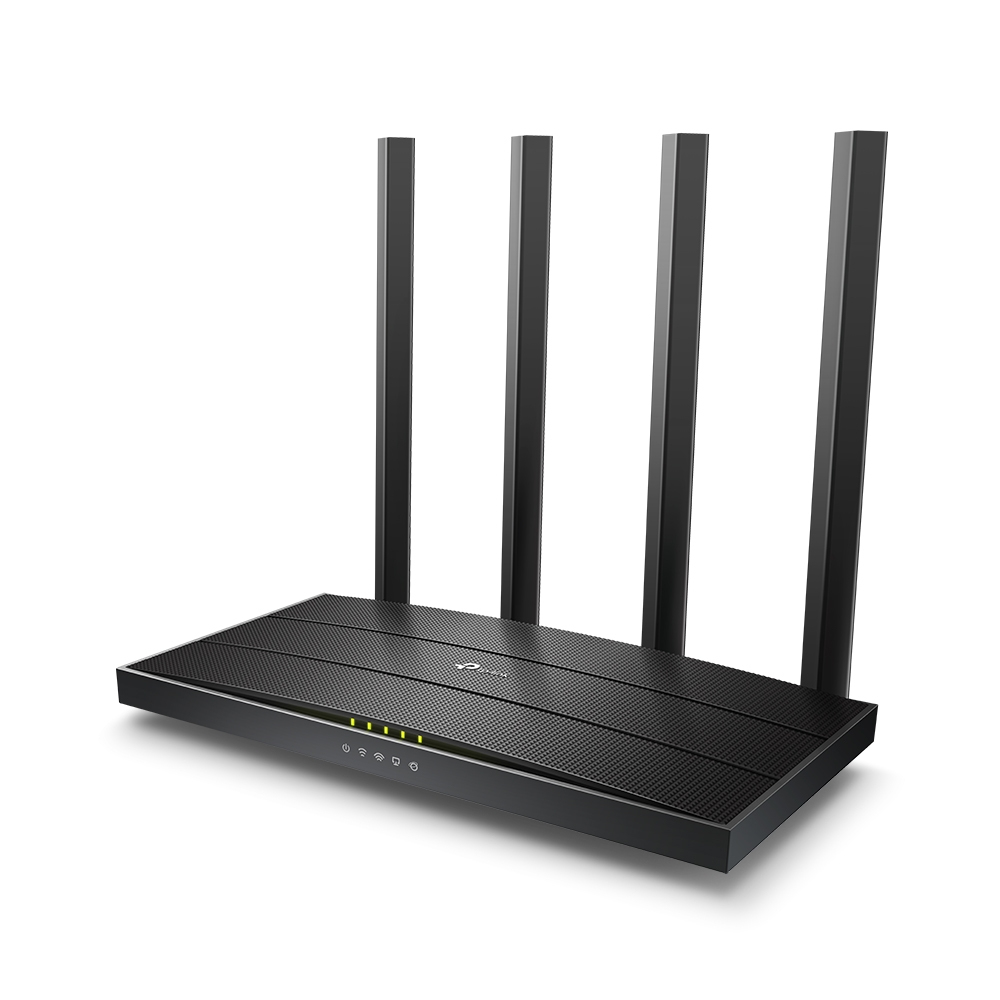

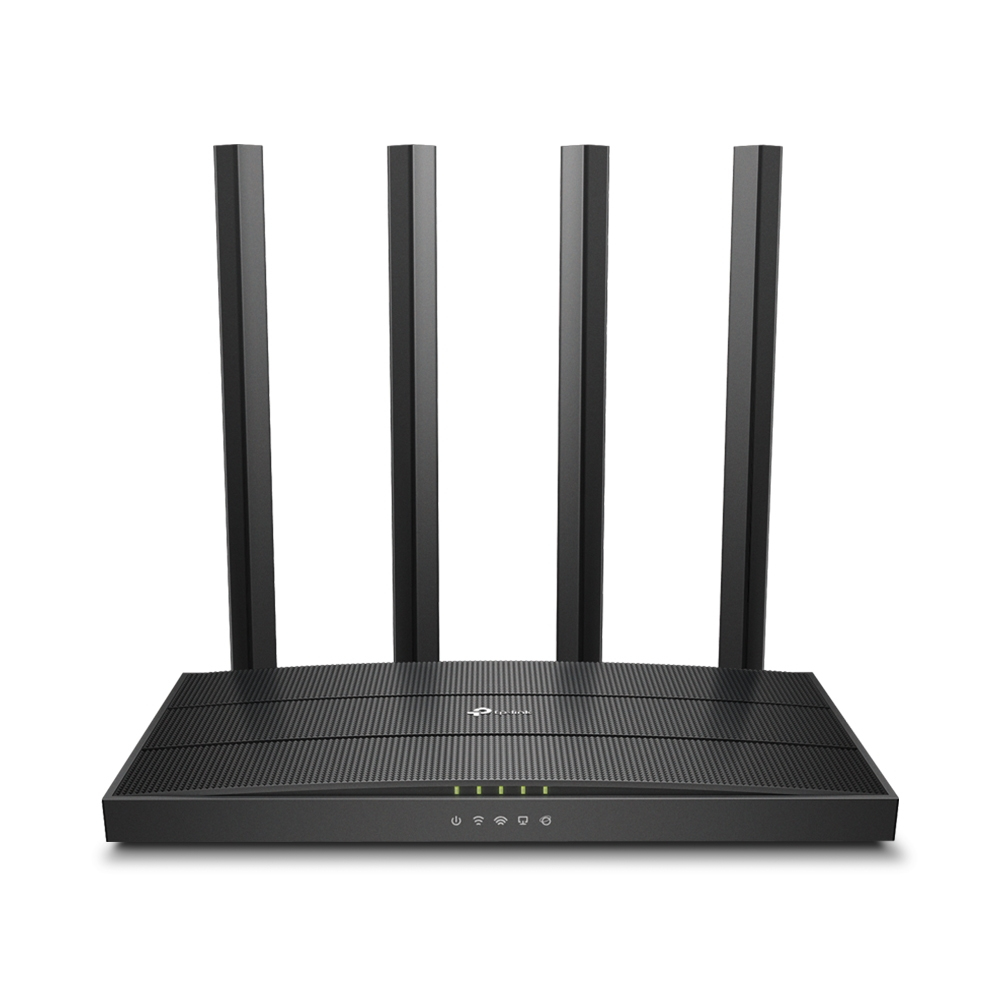

TP-Link ARCHER C80 V1
Archer C80 AC1900 MU-MIMO WLAN-Router content_copy

Leistungsmerkmale


Tabletop-Router Schwarz

Dual-Band (2,4 GHz/5 GHz) Wi-Fi 5 (802.11ac) 1300 Mbit/s

Gigabit Ethernet

Ethernet-WAN

Anzahl Ethernet-LAN-Anschlüsse (RJ-45): 4

Quality of Service (QoS) Support

MU-MIMO-Technologie


Maximum Wi-Fi Performance with Three Streams

With 3×3 MIMO, Archer C80 is capable of transmitting and receiving data on three streams. 3×3 capable computers— like Macs—pair perfectly with C80 to perform at max with much higher efficiency than 2×2 MIMO routers.


Incredible 802.11ac Wave2 Home Wi-Fi

Archer C80 delivers high-performance and affordable home Wi-Fi with total speeds up to 1900 Mbps. Handle simple tasks like sending e-mails or web browsing on the 2.4 GHz band and bandwidth-intensive tasks like online gaming or 4K/8K UHD streaming on the 5 GHz band—all lag-free.


Broader Coverage throughout Your Home

Access your entertainment from every corner of your home with 4 external high-performance antennas. Beamforming technology detects devices and concentrates wireless signal strength towards them, even if they are far away or low-powered.


Connect More Devices Simultaneously

Archer C80 helps your devices achieve optimal performance by making communication more efficient with MU-MIMO technology. Multiple devices are able to send and receive data on the best available band. Enjoy non-stop entertainment on all your devices—lag free.


Increased Efficiency in Wi-Fi Distribution

Smart Connect helps your router automatically switch each device's connection to the best available Wi-Fi band while Airtime Fairness prevents older devices from slowing down your network. With both, everyone can enjoy a smoother, lag-free W-Fi experience.

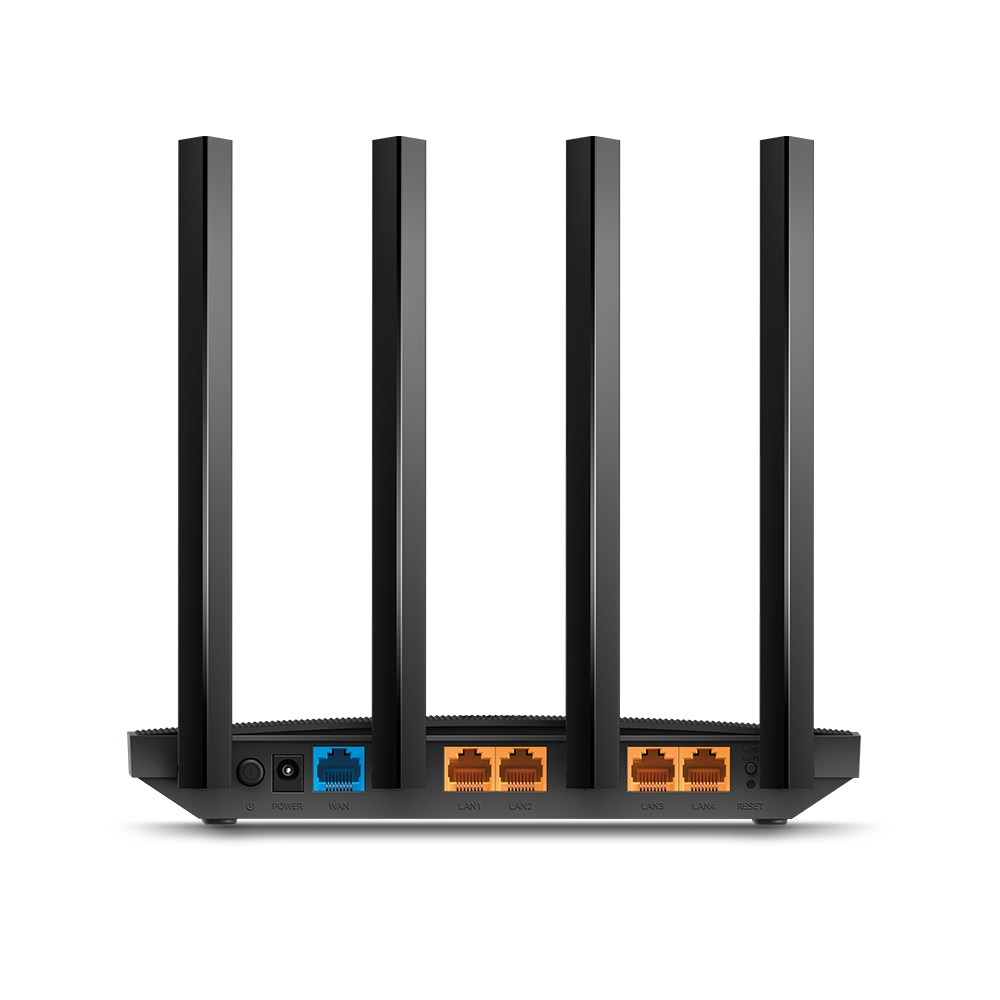

Full Gigabit Ports

Gigabit Ethernet ports (1 WAN+ 4 LAN) deliver maximum wired speeds. Plug in your PCs, smart TVs, and game consoles for fast and reliable connections.


Personalize Your Home Network

Archer C80 provides a wealth of advanced tools for personalized management.


Parental Controls

Block inappropriate content and set daily limits for how much time your children spend online with Parental Controls.


Guest Network

Guest Network creates a separate Wi-Fi for guests, ensuring your privacy is secure.


Easy Setup at Your Fingertips

Set up Archer C80 in minutes via its intuitive web interface or the powerful Tether app. Tether also lets you manage its network settings from any Android or iOS device.

Antenna
Antenna design	External
Antennas quantity	4
Transmit power	CE: <20dBm(2.4 GHz), <23dBm(5.15 GHz~5.25 GHz), FCC:<30dBm(2.4 GHz & 5 GHz)
Detachable antenna(s)
Design
Product colour	Black
LED indicators	LAN, Power, Status, WLAN, WPS
Product type	Tabletop router
Wall mountable
On/off switch
Management features
Reset button
WPS push button
Network
Ethernet LAN interface type	Gigabit Ethernet
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN
Port forwarding
Dynamic DNS (DDNS)
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Packaging content
Cables included	AC, LAN (RJ-45)
AC adapter included
Quick installation guide
Packaging data
Package width	350 mm
Package depth	240 mm
Package height	82 mm
Package weight	250 g
Ports & interfaces
Ethernet LAN (RJ-45) ports	5
USB port
Memory card slot(s)
DC-in jack
Power
Power source type	DC
Output voltage	12 V
Protocols
DHCP client
DHCP server
Universal Plug and Play (UPnP)
Security
Security algorithms	64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Firewall
Guest access
Access Control List (ACL)
Stateful Packet Inspection (SPI)
MAC address filtering
DMZ support
System requirements
Browser supported	Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Window
Mac operating systems supported	MacOS
Linux operating systems supported
Mac compatibility
WAN connection
WAN connection type	RJ-45
Ethernet WAN
SIM card slot
Wireless LAN features
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	1300 Mbit/s
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
WLAN data transfer rate (first band)	1300 Mbit/s

---
