TP-Link WLAN router Archer AX73 (AX5400/Triple-Core) content_copy

Built on next-generation 802.11ax Wi-Fi-6 technology, the Archer AX73 takes your Wi-Fi to the next level while being backwards compatible with 802.11a/b/g/n/ac Wi-Fi standards. Enjoy stable WiFi connections, even in the kitchen and bedroom. 6 high-performance antennas, beamforming and 4T4R structures work together to adapt WiFi coverage to your home and focus signal strength on your devices. Dramatically improved speeds enable streaming, fast downloading and gaming at the same time. Not fast enough yet? Switch to 5GHz at full speed up to 5400Mbps to stream multiple 8K videos without lag.

Highlights

• Gigabit WiFi for 8K streaming
• 5400 Mbit/s WiFi for faster surfing, streaming and downloads
• Latest WiFi 6 technology
• Connect more than 200 devices - Supports MU-MIMO and OFDMA to reduce congestion and increase average throughput
• 6 × antennas with beamforming technology ensure wide coverage
• HomeShield - TP-Link's premium security services protect your home network

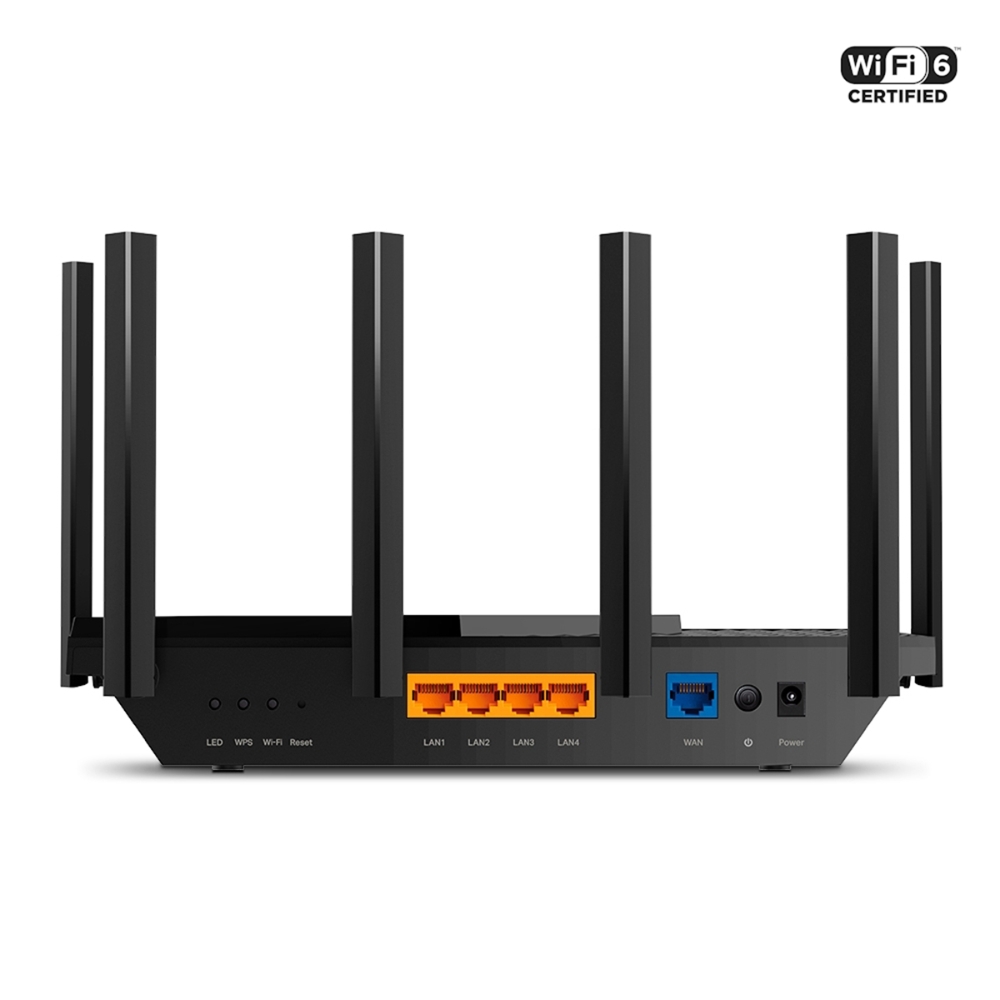

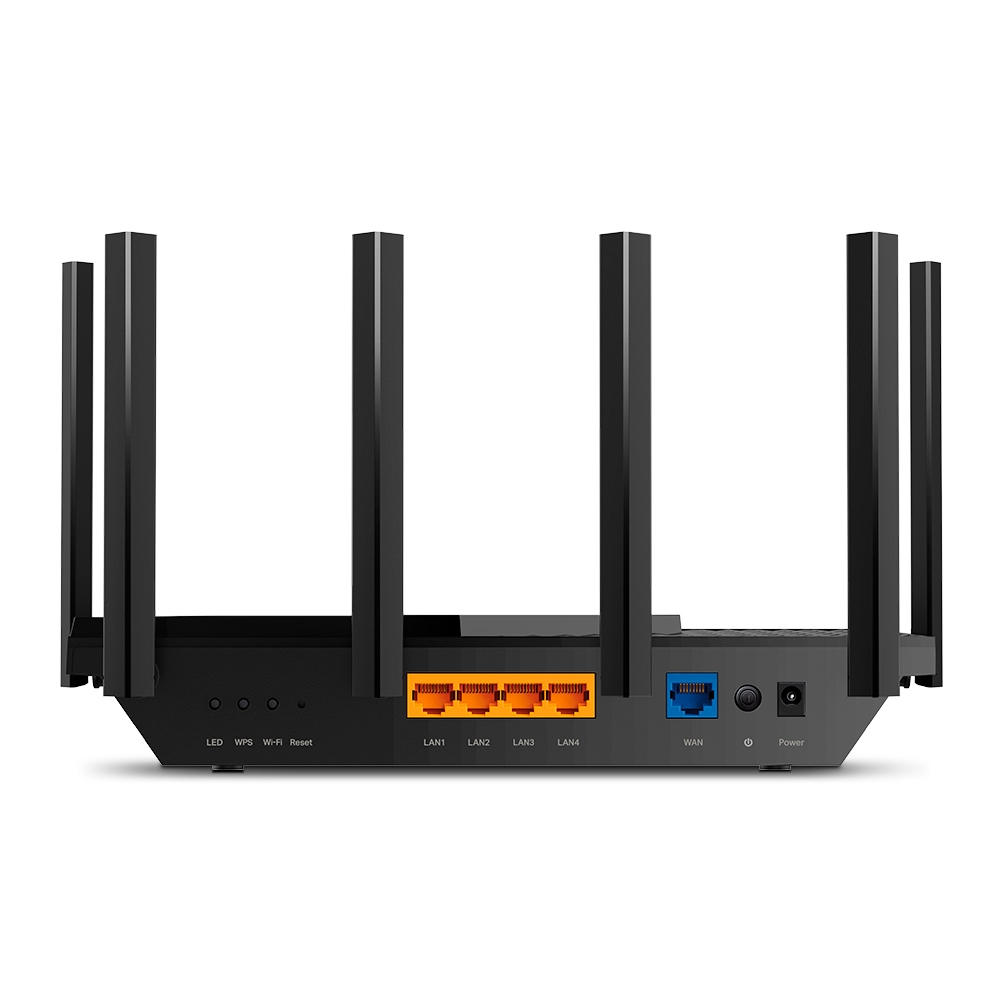

• 1 × Gigabit WAN port, 4 × Gigabit LAN ports
• USB 3.0 port allows easy sharing of media and the Creation of private clouds
• Easy setup in a few minutes with the TP-Link Tether app

Product type

• Stationary router
• ear category (ElektroG): relevant, Category 6: small IT and telecommunications devices, Small IT and telecommunications devices TK-Technik B2C

Specifications

• Area of application: Indoor

Connections

• Connection: USB
• USB standard: USB 3.0 (USB 3.2 Gen 1)
• Total number of copper ports: 5

Functions

• DHCP server
• VPN
• Media server

Power supply

• Power supply: external

data transmission

• WLAN
• WLAN standard: IEEE 802.11a - WiFi 2, IEEE 802.11b - WiFi 1, IEEE 802.11g - WiFi 3, IEEE 802.11n - WiFi 4, IEEE 802.11ac - WiFi 5, IEEE 802.11ax - WiFi 6
• Security standard: WPA, WPA2, WPA3, WPS
• WLAN frequency band: dual band
• Bandwidth: 10/100/1000 MBit/s
• WPS

Basic properties

• Color: Black
• Height: 49.2 mm
• Length/Depth: 147.2 mm
• Width: 272.5 mm

Scope of delivery

• Wireless Router Archer AX73
• power supply
• RJ45 Ethernet cable
• Quick start guide

Antenna
Antenna design	External
Antennas quantity	6
Certificates
Compliance certificates	RoHS, Federal Communications Commission (FCC), CE
Design
Product colour	Black
Product type	Portable router
On/off switch
Features
Processor frequency	1500 MHz
Processor cores	3
Built-in processor
Firmware upgradeable
Logistics data
Quantity per pack	1 pc(s)
Harmonized System (HS) code	85176990
Country of origin	Malaysia
Management features
Web-based management
Quality of Service (QoS) support
Reset button
WPS push button
MU-MIMO technology
Network
Ethernet LAN interface type	Gigabit Ethernet
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g
Number of guest networks (2.4 GHz)	1
Number of guest networks (5 GHz)	1
Ethernet LAN
Port forwarding
Port triggering
Dynamic DNS (DDNS)
Support Samba (storage)
Built-in FTP server
Media server
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Packaging content
Cables included	LAN (RJ-45)
Packaging content	1 x TP-Link Archer AX5400 Dual-Band Gigabit Wi-Fi 6 Router, Black
AC adapter included
Quick installation guide
Packaging data
Package width	124 mm
Package depth	310 mm
Package height	38 mm
Package weight	800 g
Ports & interfaces
Ethernet LAN (RJ-45) ports	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
USB port
Power
Power source type	DC
Output voltage	12 V
Output current	2.5 A
Protocols
Supported network protocols	IPv4, IPv6
DHCP client
Universal Plug and Play (UPnP)
Security
Security algorithms	WPA, WPA-Enterprise, WPA2, WPA2-Enterprise, WPA3
Firewall
Access Control List (ACL)
Stateful Packet Inspection (SPI)
DoS attack prevention
Parental control
Filtering
MAC address filtering
IP address filtering
DMZ support
Network address translation (NAT)
Sustainability
Sustainability compliance
WAN connection
WAN connection type	RJ-45
Ethernet WAN
DSL WAN
SIM card slot
3G/4G USB modem compatibility
Weight & dimensions
Width	272.5 mm
Depth	147.2 mm
Height	49.2 mm
Wireless LAN features
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
WLAN data transfer rate (max)	5400 Mbit/s
Wi-Fi standards	Wi-Fi 4 (802.11n), 802.11b, 802.11a, 802.11g, Wi-Fi 5 (802.11ac)
WLAN data transfer rate (first band)	4804 Mbit/s
WLAN data transfer rate (second band)	574 Mbit/s
Modulation	1024-QAM, OFDM

---
