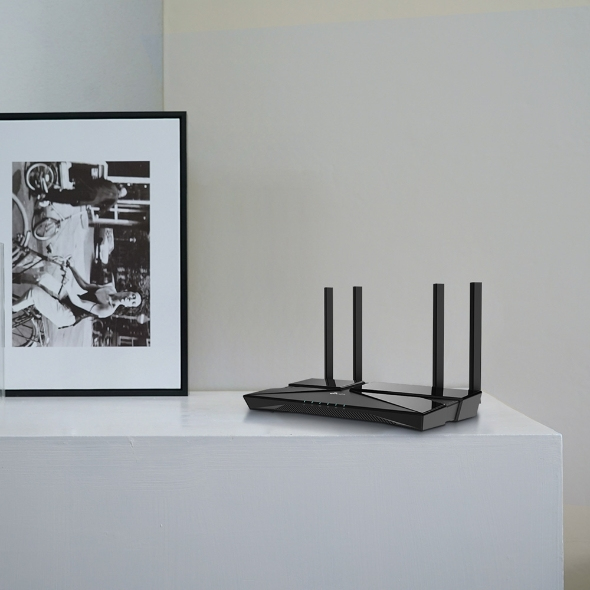

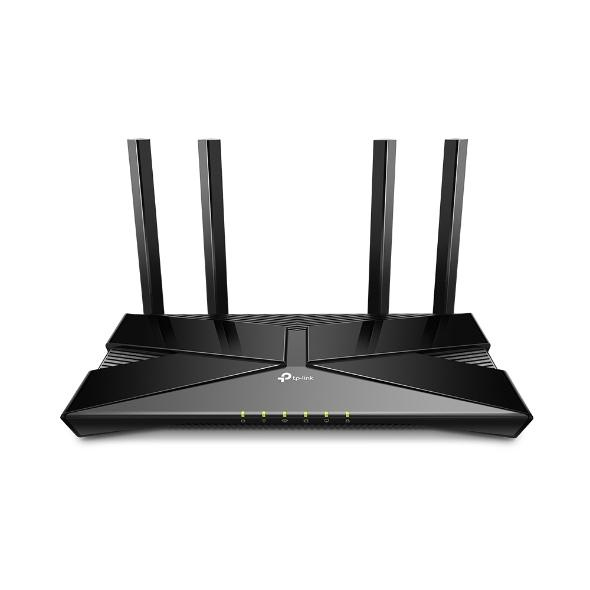

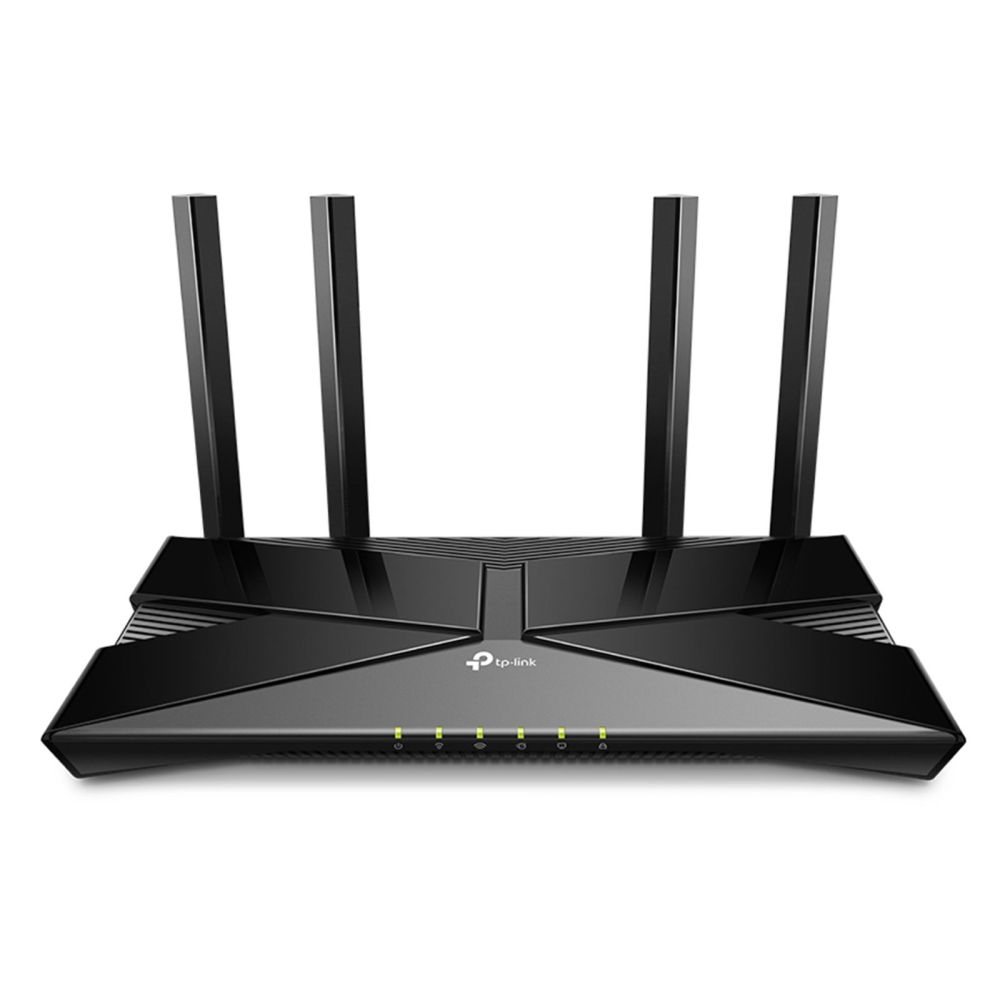

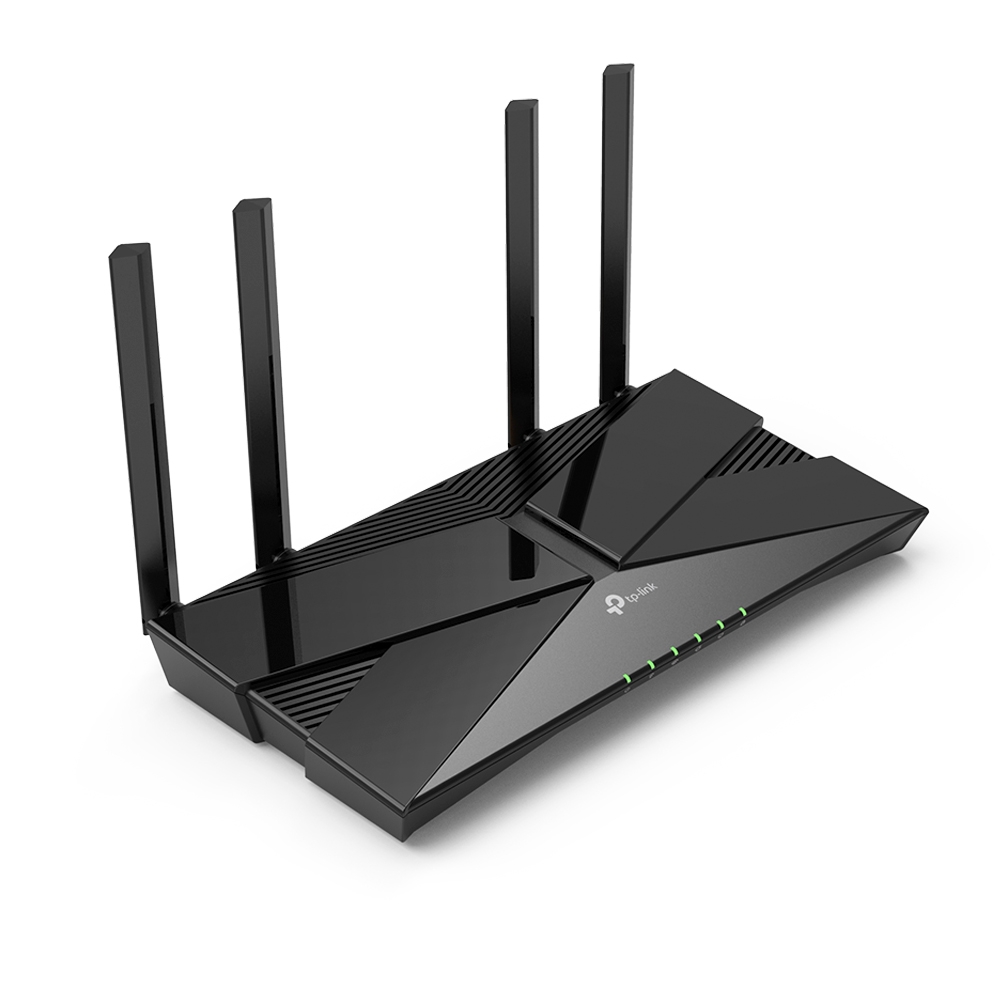

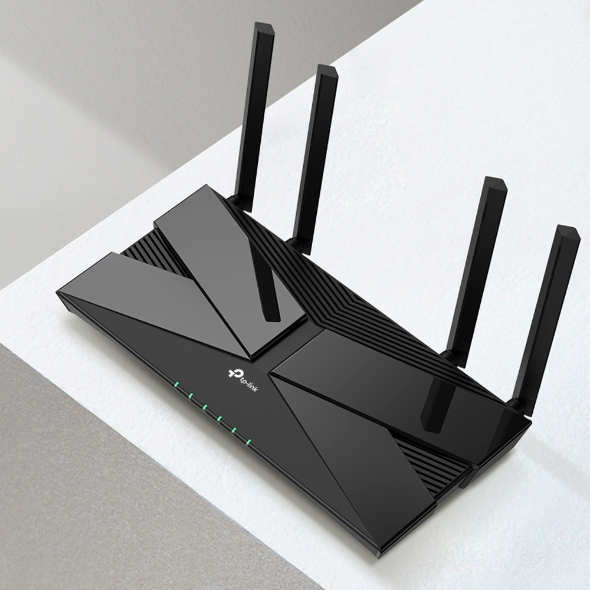

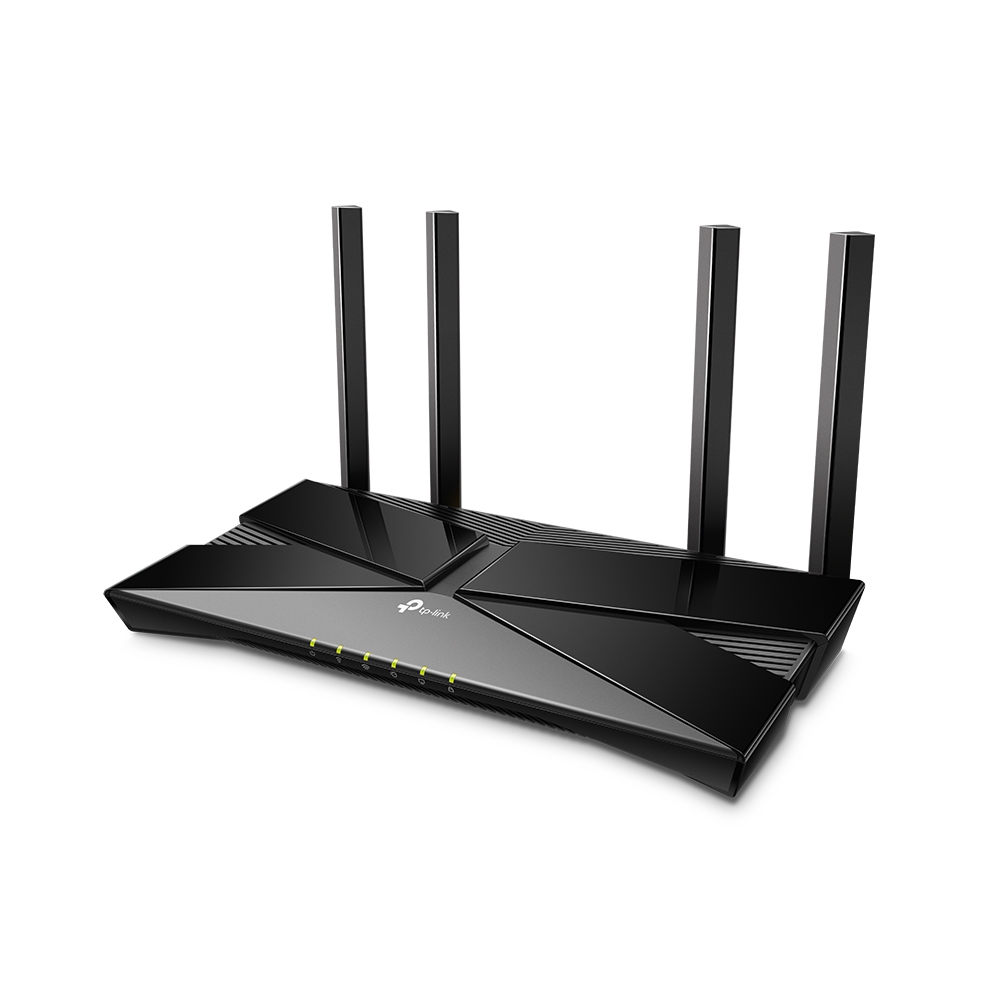

TP-Link WLAN router Archer AX23 (AX1800/Dual-Band)
|
67,12 EUR 67,13 EUR |
|
|
( 79,87 EUR incl. VAT ) ≈ £56.52 | ≈ $75.38 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |
| In Stock: 4 pieces | |
| End-Of-Life: | 19. Aug 2026 |
|---|---|
| Datasheet: | file_download Download |
| Lieske Part No.: | 1937276 |
| Mfg Part No: | Archer AX23 |
| UPC/EAN: | 4897098687048 |
| Weight: | 0.98 kg |
| Type: | WRLS |
Further Access Points from TP-LinkFurther products in category Access Points
All products of TP-Link

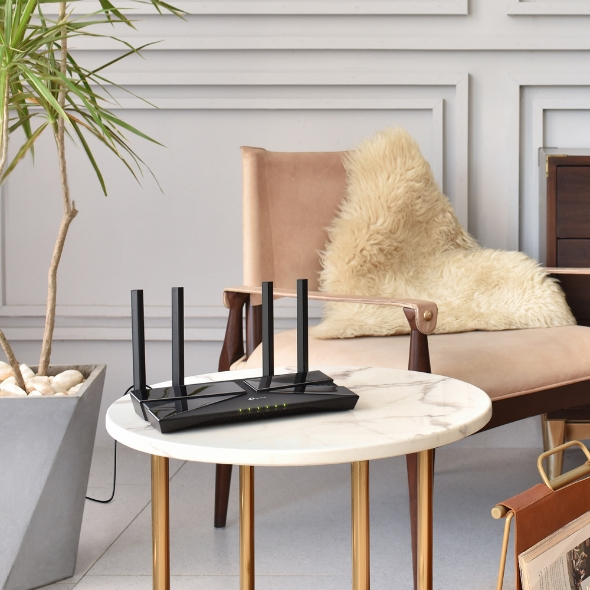

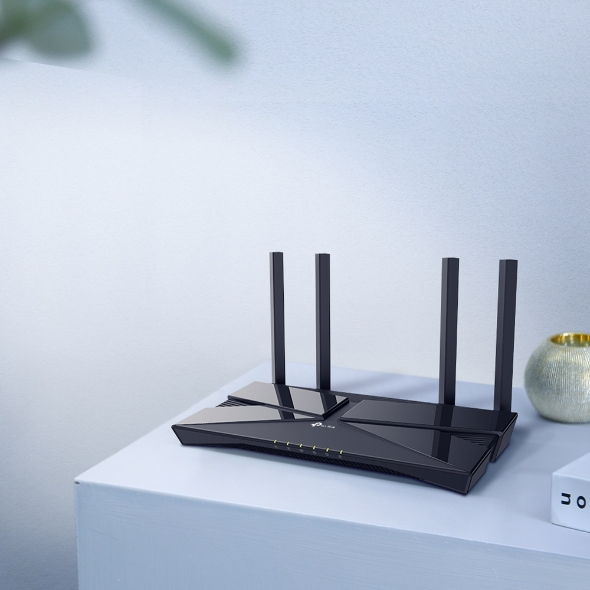

Product information for TP-Link Archer AX23:
The new TP-Link Archer AX23 AX1800 dual-band Wi-Fi 6 router, for super-fast dual-band wireless connections with speeds of up to 1.8 Gbps - perfect for 4K streaming and short download times. Thanks to advanced semiconductor design and software optimization, the Archer AX23 is TP-Link's most budget-friendly dual-band Wi-Fi 6 router ever.
Highlights
- Super-fast 1.8Gbps Wi-Fi - Enjoy smooth 4K streaming and fast downloads
- Connect more devices - Communicates with more devices via OFDMA while reducing lag
- Wider coverage - Improved algorithm, beamforming and high-performance antennas improve Wi-Fi -Coverage
- Highly efficient next-generation Qualcomm chipset delivers fast and stable Wi-Fi while saving power
- Built-in parental controls, including URL blocking, profile management, pausing and more
- Easy setup in minutes with the powerful TP-Link Tether app

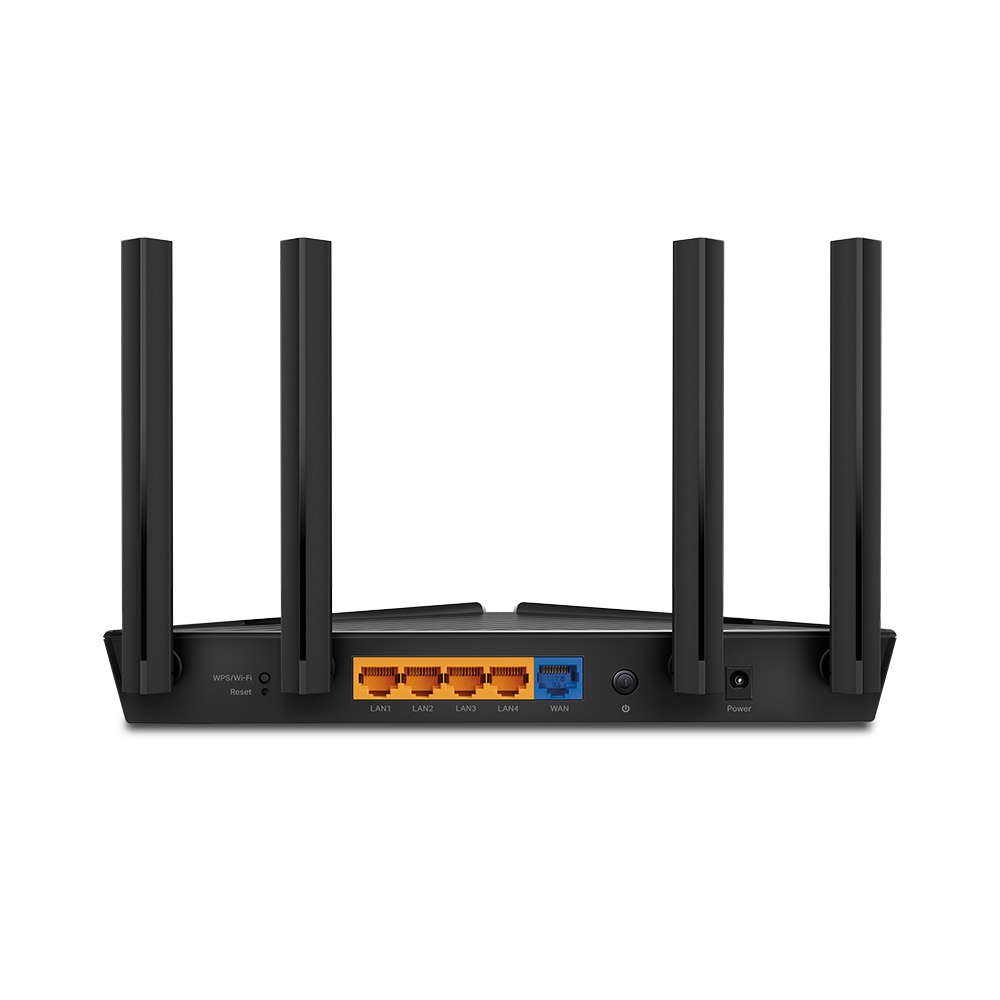

- 4x Gigabit LAN port, 1x Gigabit WAN port
- stationary router
- ear category (ElektroG): relevant, category 6: small IT and telecommunications technology devices, small IT and telecommunications technology devices B2C
- Area of application: Indoor
- Total number of copper ports: 5
- DHCP server
- VPN
- Parental control
- Power supply: external
- WLAN
- WLAN standard: IEEE 802.11a - WiFi 2, IEEE 802.11b - WiFi 1 , IEEE 802.11g - WiFi 3, IEEE 802.11n - WiFi 4, IEEE 802.11ac - WiFi 5, IEEE 802.11ax - WiFi 6
- Security standard: WPA, WPA2, WPA3
- WLAN frequency band: Dual band
- Bandwidth: 10/100/1000 MBit/s
- WPS
- Color: Black
- Height: 38.6 mm
- Length/Depth: 135 mm
- Width: 260.2 mm
- WLAN router Archer AX23
- Power supply
- RJ-45 Ethernet cable
- Quick installation instructions
Product type
Specifications
Connections
Functions
Power supply
Data transmission
Basic features
Scope of delivery
| Antenna | |
| Antenna design | External |
| Antenna connector type | SMA |
| Certificates | |
| Certification | FCC, CE, RoHS |
| Design | |
| Product colour | Black |
| Product type | Tabletop router |
| Features | |
| Processor frequency | 1500 MHz |
| Processor cores | 2 |
| Built-in processor | |
| Logistics data | |
| Export Control Classification Number (ECCN) | 5A992 |
| Harmonized System (HS) code | 8517.62 |
| Management features | |
| Web-based management | |
| Web-based setup wizard | |
| Bandwidth control | |
| Reset button | |
| WPS push button | |
| Network | |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Number of guest networks (2.4 GHz) | 1 |
| Number of guest networks (5 GHz) | 1 |
| VPN server | OpenVPN, PPTP |
| Ethernet LAN | |
| Full duplex | |
| Flow control support | |
| Port forwarding | |
| Dynamic DNS (DDNS) | |
| Static route | |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Packaging content | |
| Cables included | LAN (RJ-45) |
| AC adapter included | |
| Warranty card | |
| Quick installation guide | |
| Packaging data | |
| Package width | 500 mm |
| Package depth | 350 mm |
| Package height | 395 mm |
| Package weight | 730 g |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 4 |
| DC-in jack | |
| Power | |
| Power source type | DC |
| Output voltage | 12 V |
| Output current | 1 A |
| Protocols | |
| DHCP client | |
| DHCP server | |
| Universal Plug and Play (UPnP) | |
| Security | |
| Security algorithms | 64-bit WEP, 128-bit WEP, WMM, WPA, WPA-PSK, WPA2, WPA2-PSK |
| NAT functionality | Port Forwarding, Port Triggering, UPnP, DMZ |
| Firewall | |
| Guest access | |
| Access Control List (ACL) | |
| IP address filtering | |
| URL filtering | |
| System event log | |
| DMZ support | |
| Network address translation (NAT) | |
| System requirements | |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 2000, Windows 2000 Professional, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starte |
| Linux operating systems supported | |
| Mac operating systems supported | |
| WAN connection | |
| WAN connection type | RJ-45 |
| Ethernet WAN | |
| SIM card slot | |
| Weight & dimensions | |
| Width | 260.2 mm |
| Depth | 135 mm |
| Height | 41.6 mm |
| Wireless LAN features | |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| WLAN data transfer rate (max) | 1800 Mbit/s |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| WLAN data transfer rate (first band) | 574 Mbit/s |
| WLAN data transfer rate (second band) | 1201 Mbit/s |
| Modulation | OFDMA |
Please note...
We have listed this article as 'end-of-life', which means that it will only be sold until it is completely sold out ! Please mind that we cannot guarantee you, you will receive the article, although it may be betokened as available. You can find the date from when the article was marked end-of-life to the top.
Questions & answers
What is the delivery time of TP-Link WLAN router Archer AX23 (AX1800/Dual-Band)?
The article TP-Link WLAN router Archer AX23 (AX1800/Dual-Band) is currently in stock
According to our experience the article is ready for dispatch within 9 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of TP-Link Archer AX23 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you TP-Link WLAN router Archer AX23 (AX1800/Dual-Band) always at the best possible price. We can give you a discount of 2% on TP-Link WLAN router Archer AX23 (AX1800/Dual-Band) if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
