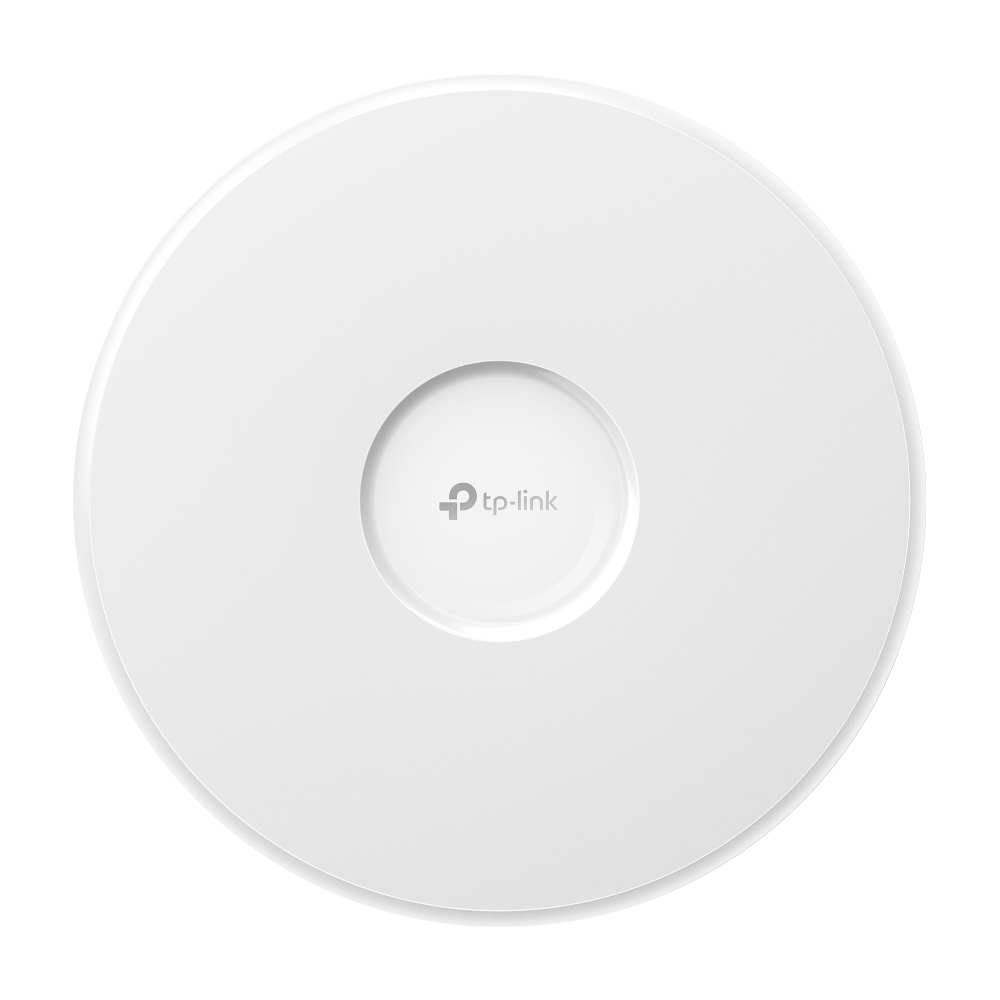

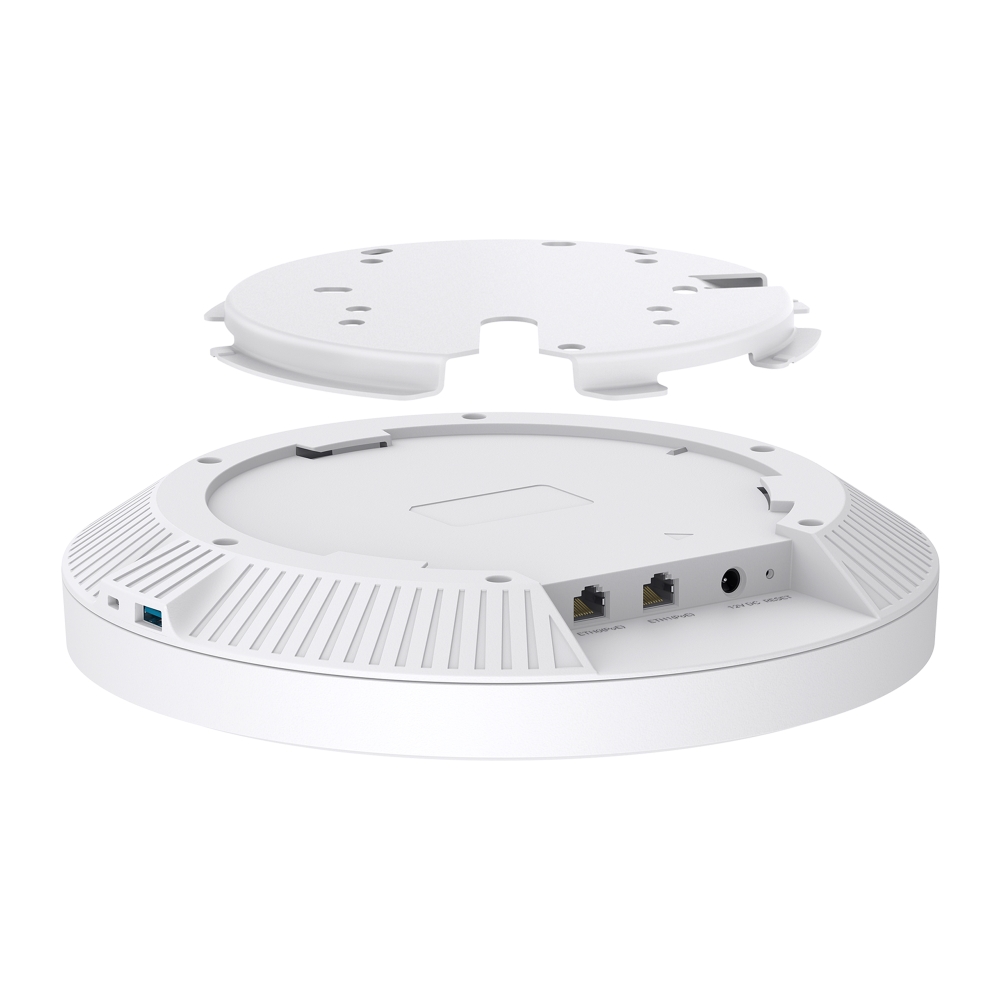

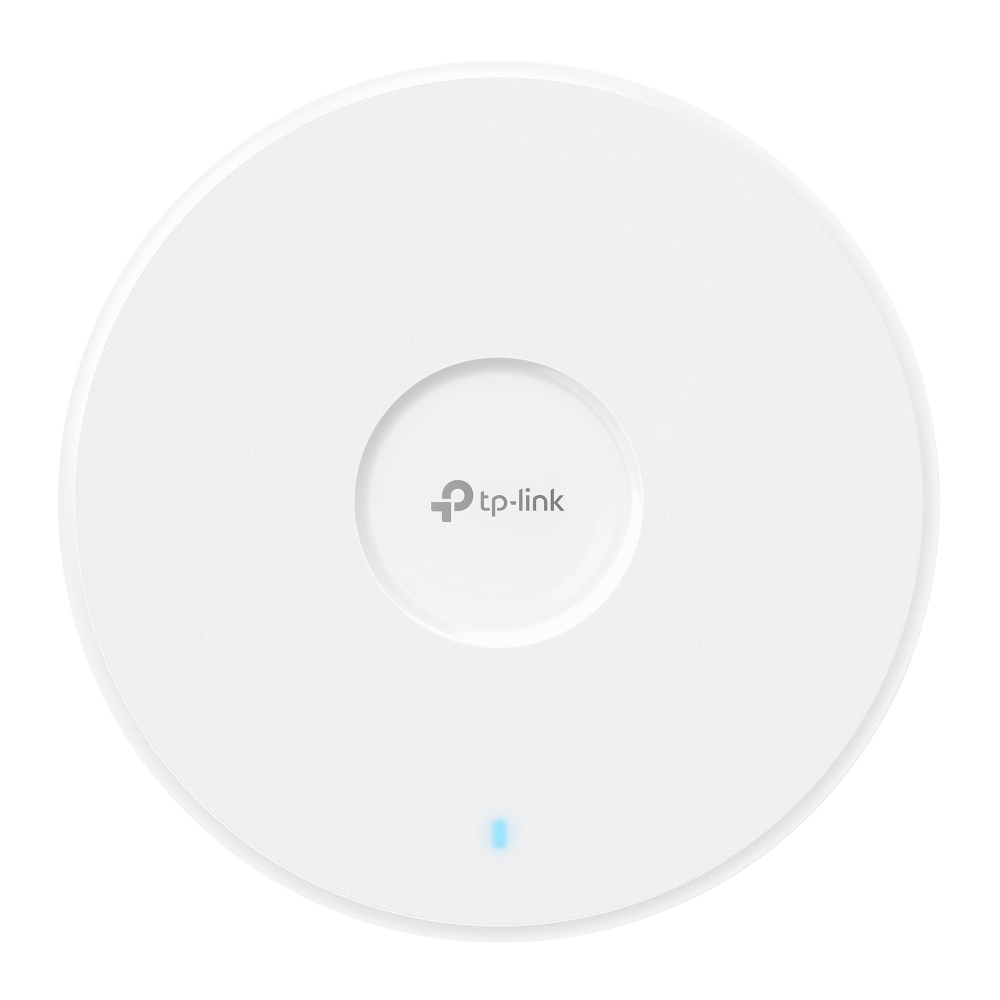

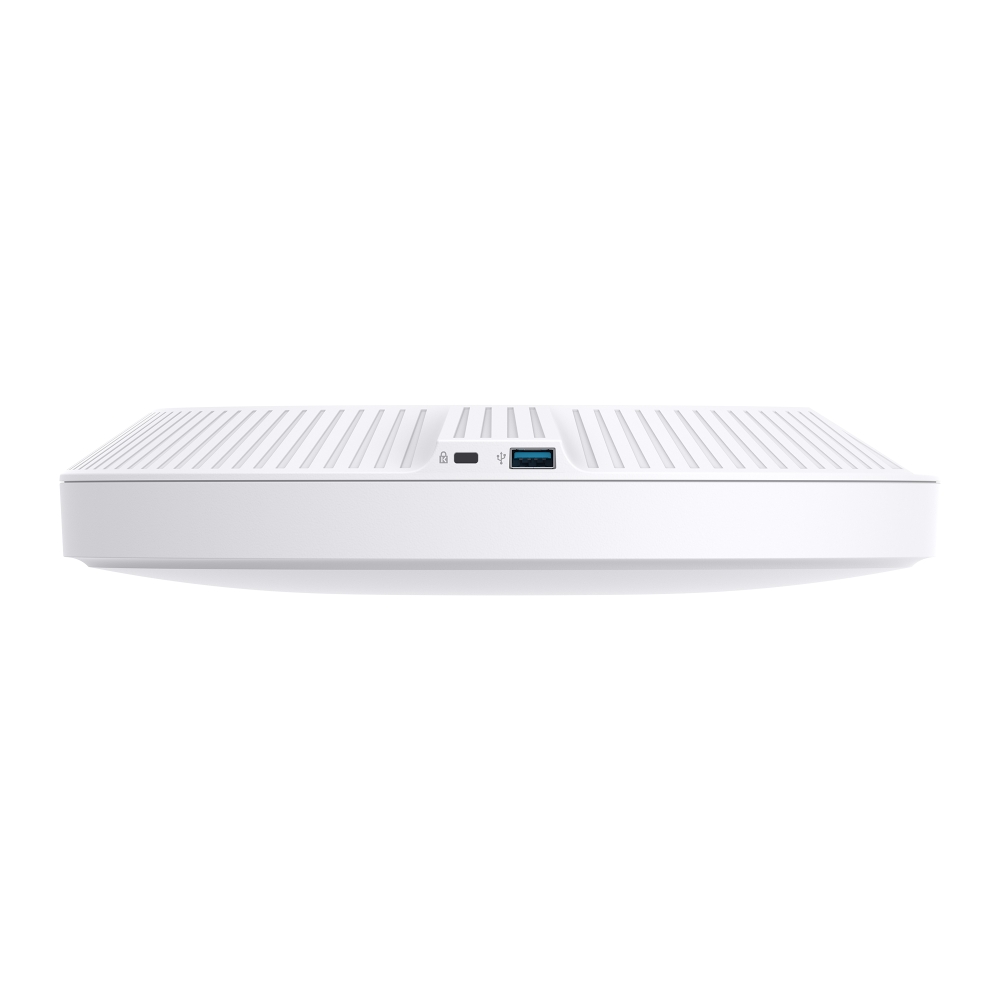

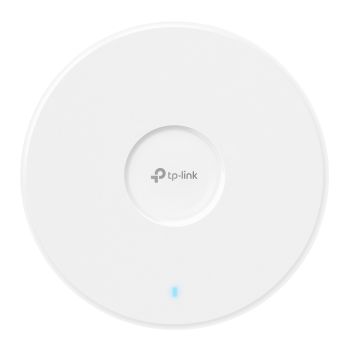

TP-LINK AP9778 Omada PRO BE19000 Ceiling Mount Tri-Band Wi-Fi 7 Access Point 2x 10G RJ45 Port 1xUSB 3.0
|
3.213,41 EUR 3.219,55 EUR |
|
|
( 3.823,96 EUR incl. VAT ) ≈ £2,705.69 | ≈ $3,608.66 plus delivery charges: 53,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| End-Of-Life: | 19. Aug 2026 |
|---|---|
| Datasheet: | file_download Download |
| Lieske Part No.: | 1554979 |
| Mfg Part No: | AP9778 |
| UPC/EAN: | 4895252502916 |
| Weight: | 2.83 kg |
| Type: | WRLS |
Further Access Points from TP-LinkFurther products in category Access Points
All products of TP-Link
Product information for TP-Link AP9778:
What This Product Does
AP9778, the Omada Pro BE19000 Ceiling Mount WiFi 7 Access Point, provides up to 19 Gbps speeds with the latest WiFi 7 technologies. Two built-in 10G Ethernet ports ensure high network throughput. High-density environments will no longer be a hindrance.
Integrating into the Omada Software Defined Networking (SDN) solution, AP9778 runs in an efficient management way. Centralized and remote management can liberate managers and help reduce maintenance costs.
Wi-Fi 7: Swifter, Smoother, Stronger
Supersized Throughput for Better Experiences
With the brand-new 6 GHz band open to applications, WiFi 7 supports extending channel width to 320 MHz. Compared to WiFi 6/6E, the doubled channel bandwidth of 6 GHz offers many more simultaneous transmissions at the fastest possible speeds. Making full use of these new resources, the throughput of AP9778 reaches up to 19 Gbps.
Higher Capacity for Increased Traffic Demands
WiFi 7 supports 4096-QAM with 12 bits rather than WiFi 6’s 10 bits. The updated modulation method enables each signal to carry more dense amounts of data. Equipped with advanced 4096-QAM, AP9778 empowers your business to meet ever-growing traffic demands from high-bandwidth applications, such as remote offices, HD video conferencing, and cloud-based applications.
Lower Latency for Boosted Network Reliability
AP9778 allows network devices to communicate across multiple bands and channels simultaneously thanks to Multi-Link Operation (MLO). Additionally, Multi Resource Units (Multi-RUs) open up previously wasted channels. More bands can be used concurrently to share redundant data, and interference will be blocked to improve reliability.
Enhanced Network Security
Customizable WIDS and adaptive WIPS assist in safeguarding critical data and network resources. Intelligent Anomaly Detection and Analysis guarantees 24/7 automatic network anomaly analysis to offer timely optimization advice. AP9778 also provides secure WiFi access along with mul
AP9778, the Omada Pro BE19000 Ceiling Mount WiFi 7 Access Point, provides up to 19 Gbps speeds with the latest WiFi 7 technologies. Two built-in 10G Ethernet ports ensure high network throughput. High-density environments will no longer be a hindrance.
Integrating into the Omada Software Defined Networking (SDN) solution, AP9778 runs in an efficient management way. Centralized and remote management can liberate managers and help reduce maintenance costs.
Wi-Fi 7: Swifter, Smoother, Stronger
Supersized Throughput for Better Experiences
With the brand-new 6 GHz band open to applications, WiFi 7 supports extending channel width to 320 MHz. Compared to WiFi 6/6E, the doubled channel bandwidth of 6 GHz offers many more simultaneous transmissions at the fastest possible speeds. Making full use of these new resources, the throughput of AP9778 reaches up to 19 Gbps.
Higher Capacity for Increased Traffic Demands
WiFi 7 supports 4096-QAM with 12 bits rather than WiFi 6’s 10 bits. The updated modulation method enables each signal to carry more dense amounts of data. Equipped with advanced 4096-QAM, AP9778 empowers your business to meet ever-growing traffic demands from high-bandwidth applications, such as remote offices, HD video conferencing, and cloud-based applications.
Lower Latency for Boosted Network Reliability
AP9778 allows network devices to communicate across multiple bands and channels simultaneously thanks to Multi-Link Operation (MLO). Additionally, Multi Resource Units (Multi-RUs) open up previously wasted channels. More bands can be used concurrently to share redundant data, and interference will be blocked to improve reliability.
Enhanced Network Security
Customizable WIDS and adaptive WIPS assist in safeguarding critical data and network resources. Intelligent Anomaly Detection and Analysis guarantees 24/7 automatic network anomaly analysis to offer timely optimization advice. AP9778 also provides secure WiFi access along with mul
Produkttyp
- Accesspoint
- ear-Kategorie (ElektroG): relevant, Kategorie 6: kleine Geräte der IT- und TK-Technik, Kleine Geräte der Informations- und Telekommunikationstechnik, die in privaten Haushalten genutzt werden können
Spezifikationen
- Betriebstemperatur max: 40 °C
- Betriebstemperatur min: 0 °C
Versand
- WEEE: 85565951
Antenne
- Antennentechnologie: intern
- Gewinn: 5.5 dbi
- Montageart: Decke, Wand
Datenübertragung
- Bluetooth
Grundeigenschaften
- Farbe: Weiß
- Höhe: 58.7 mm
- Länge/Tiefe: 280 mm
- Breite: 280 mm
Lieferumfang
- TP-Link Omada Pro AP9778 WLAN Access Point 19000 Mbit/s Weiß Power over Ethernet (PoE)
| Antenna | |
| Antenna type | Internal |
| Antenna gain level (max) | 5.5 dBi |
| Certificates | |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
| Design | |
| Placement | Ceiling, Wall |
| Product colour | White |
| Reset button | |
| Features | |
| Maximum data transfer rate | 19000 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 1376 Mbit/s |
| Maximum data transfer rate (5 GHz) | 5760 Mbit/s |
| Maximum data transfer rate (6 GHz) | 11520 Mbit/s |
| Ethernet LAN data rates | 10,100,1000,10000 Mbit/s |
| Frequency band | 2.4 - 5 GHz |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11n |
| Number of users | 1500 user(s) |
| MIMO type | Multi User MIMO |
| 2.4 GHz | |
| 5 GHz | |
| 6 GHz | |
| Bluetooth | |
| Automatic channel selection | |
| Automatic channel scanning | |
| MIMO | |
| Wi-Fi Multimedia (WMM)/(WME) | |
| VLAN support | |
| Rate limiting | |
| Band steering | |
| Airtime Fairness (ATF) | |
| Quality of Service (QoS) support | |
| BeamForming | |
| Management features | |
| Web-based management | |
| Syslog | |
| Operational conditions | |
| Operating relative humidity (H-H) | -10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Mounting kit | |
| Quick start guide | |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 2 |
| USB 2.0 ports quantity | 1 |
| DC-in jack | |
| Power | |
| DC voltage range | 12 V |
| Input current | 4.5 A |
| Power over Ethernet (PoE) | |
| Security | |
| Security algorithms | WPA-Enterprise, WPA-Personal, WPA2-Enterprise, WPA2-Personal, WPA3-Enterprise |
| Service Set Identifier (SSID) features | Multiple SSIDs |
| Number of SSID supported | 24 |
| MAC address filtering | |
| Remote Authentication Dial-In User Service (RADIUS) | |
| Access Control List (ACL) | |
| Sustainability | |
| Sustainability compliance | |
| Weight & dimensions | |
| Width | 280 mm |
| Depth | 280 mm |
| Height | 58.7 mm |
