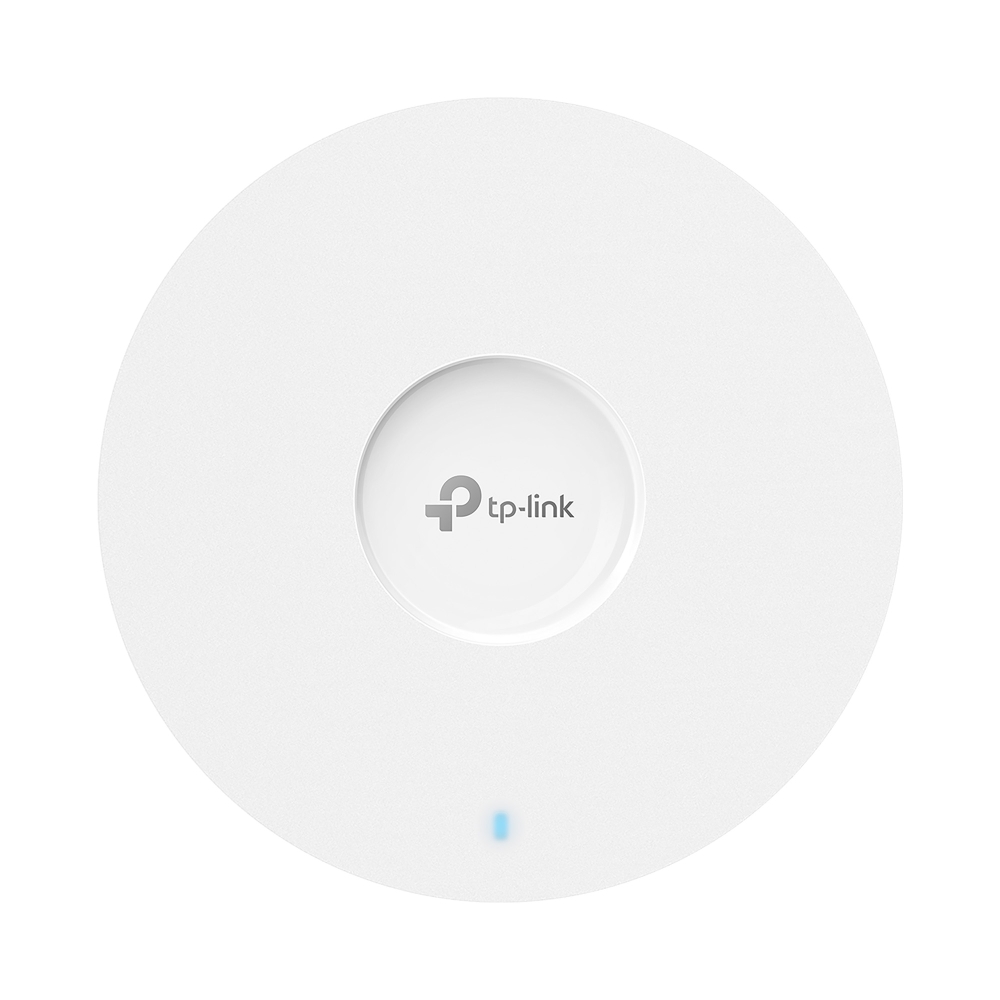

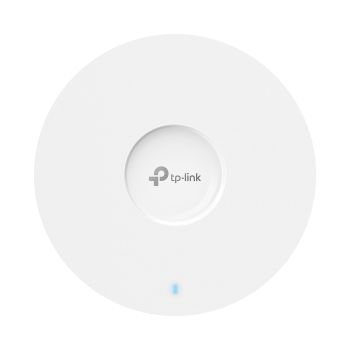

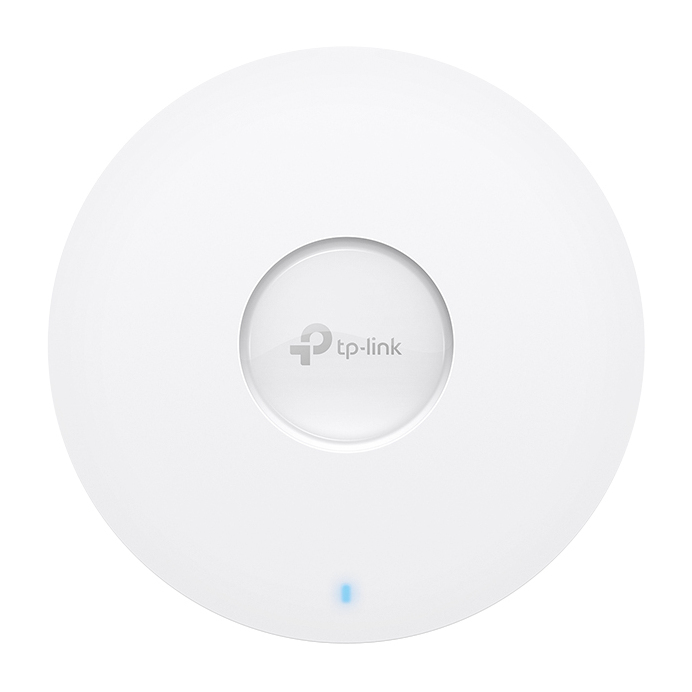

TP-LINK Omada Pro AX3600 Ceiling Mount Wi-Fi 6 Access Point content_copy

What This Product Does

AP9665, the Omada Pro AX3600 Ceiling Mount WiFi 6 Access Point, provides overall 3550 Mbps speeds with WiFi 6 technologies, such as 1024 QAM, Long OFDM Symbol, and more. Two built-in Gigabit Ethernet ports ensure high network throughput. PoE++ support also provides flexible installations.

Integrated into the Omada solution, AP9665 runs in an efficient management way. Centralized and remote management liberates and reduces maintenance costs.

Superb WiFi 6 Speed and High-Density Connectivity

• Blazing-Fast AX3600 Wi-Fi 6 Speeds
High-end business WiFi 6 brings speeds up to 3550 Mbps. 1024 QAM ensures that 25% more data is encoded at one time. The long OFDM Symbol helps with 11% faster WiFi speed.


• High-Density Connectivity for More Devices
AP9665 is designed for high-density scenes with up to 1,000+ clients. Wi-Fi 6 features such as OFDMA and MU-MIMO handle multiple clients across congested environments like typical office spaces, lodging, and hospitals. Enjoy faster speeds on more devices with less lag.
Easy Deployment and Installation


• Ultra-thin Casing

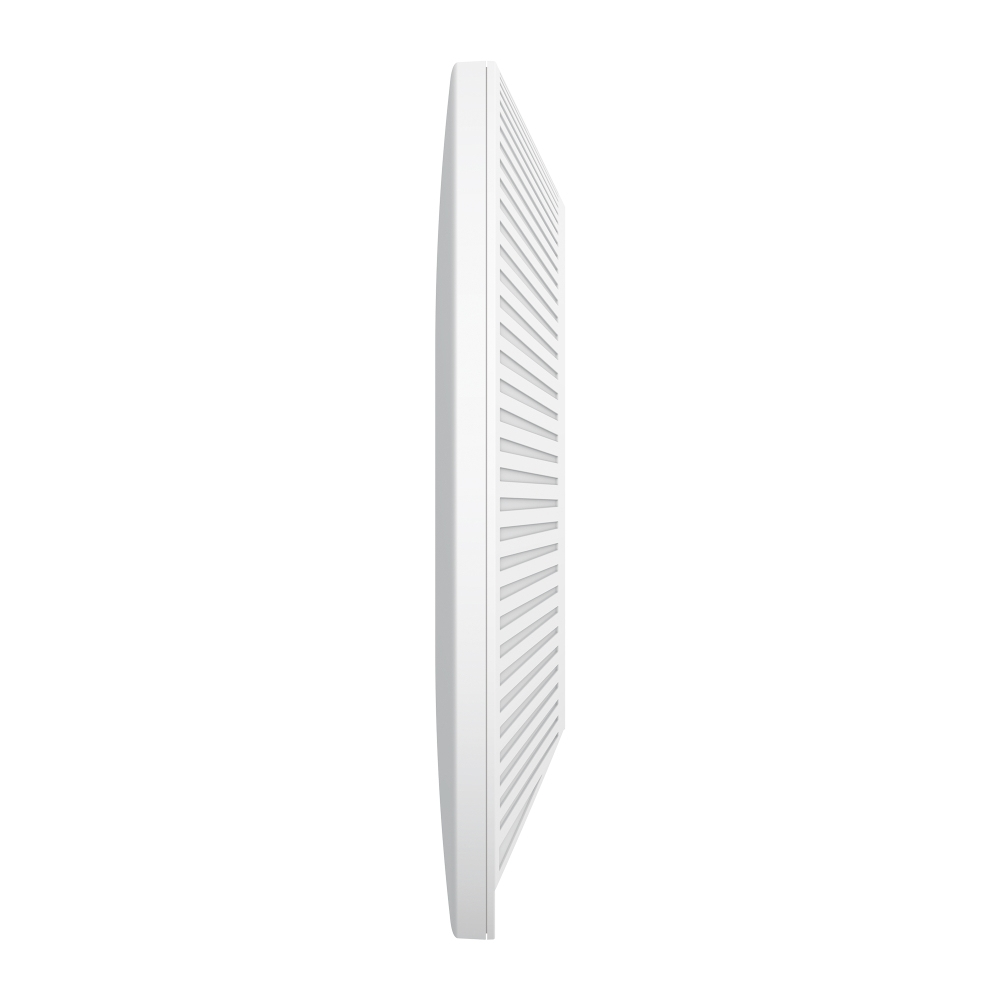

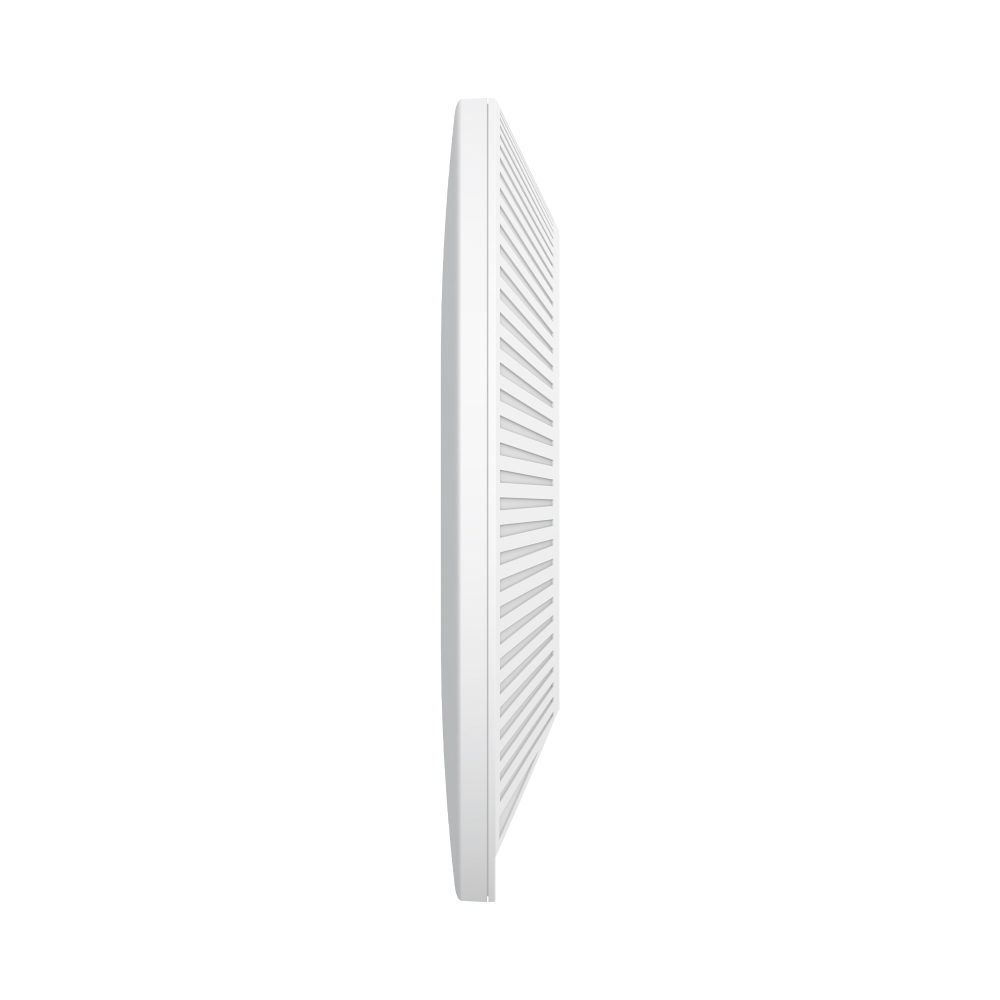

The overall design of AP9665 utilizes a thinner circular arc with a groove around the top cover (8.7 × 8.7 × 1.3 in), fitting closer to various installation surfaces such as ceilings. The compact internal hardware layout and heat-dissipating design ensure high performance with a sharp aesthetic.


• PoE++ Support
Supporting 802.3bt (PoE++), AP9665 empowers flexible and easy installation.

Boosted Network Security and Efficiency

Customizable WIDS and adaptive WIPS assist in safeguarding critical data and network resources. Intelligent Anomaly Detection and Analysis guarantees 24/7 automatic network anomaly analysis to offer timely optimization advice. AP9665 also provides secure WiFi access along with multiple authentication options (SMS/Voucher/RADIUS) and abundant wireless security technologies, such as WPA3, for worry-free open public networks.

Auto Channel Selection and Power Adju

Produkttyp

• Accesspoint
• ear-Kategorie (ElektroG): relevant, Kategorie 6: kleine Geräte der IT- und TK-Technik, Kleine Geräte der Informations- und Telekommunikationstechnik, die in privaten Haushalten genutzt werden können

Spezifikationen

• Betriebstemperatur max: 40 °C
• Betriebstemperatur min: 0 °C

Versand

• WEEE: 85565951

Antenne

• Antennentechnologie: intern
• Gewinn: 5.5 dbi
• Montageart: Decke, Wand

Datenübertragung

• Bluetooth

Grundeigenschaften

• Farbe: Weiß
• Höhe: 58.7 mm
• Länge/Tiefe: 280 mm
• Breite: 280 mm

Lieferumfang

• TP-Link Omada Pro AP9665 WLAN Access Point 3600 Mbit/s Weiß Power over Ethernet (PoE)

Antenna
Antenna type	Internal
Antenna gain level (max)	4 dBi
Certificates
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS
Design
Placement	Ceiling, Wall
Product colour	White
Reset button
Features
Maximum data transfer rate	3600 Mbit/s
Maximum data transfer rate (2.4 GHz)	1148 Mbit/s
Maximum data transfer rate (5 GHz)	2402 Mbit/s
Ethernet LAN data rates	10,100,1000,2500 Mbit/s
Frequency band	2.4 - 5 GHz
Networking standards	IEEE 802.11n, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ad, IEEE 802.11ax, IEEE 802.11az, IEEE 802.11b
Number of users	1000 user(s)
MIMO type	Multi User MIMO
2.4 GHz
5 GHz
6 GHz
Automatic channel selection
Automatic channel scanning
MIMO
Wi-Fi Multimedia (WMM)/(WME)
VLAN support
Rate limiting
Band steering
Airtime Fairness (ATF)
Quality of Service (QoS) support
BeamForming
Management features
Web-based management
Syslog
Operational conditions
Operating relative humidity (H-H)	-10 - 90%
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 90%
Packaging content
Quantity per pack	1 pc(s)
Mounting kit
Quick start guide
Ports & interfaces
Ethernet LAN (RJ-45) ports	2
USB 2.0 ports quantity	1
DC-in jack
Power
DC voltage range	12 V
Input current	1.5 A
Power over Ethernet (PoE)
Security
Security algorithms	WPA-Enterprise, WPA-Personal, WPA2-Enterprise, WPA2-Personal, WPA3-Enterprise
Service Set Identifier (SSID) features	Multiple SSIDs
Number of SSID supported	16
MAC address filtering
Remote Authentication Dial-In User Service (RADIUS)
Access Control List (ACL)
Sustainability
Sustainability compliance
Weight & dimensions
Width	220 mm
Depth	220 mm
Height	32.5 mm

---
