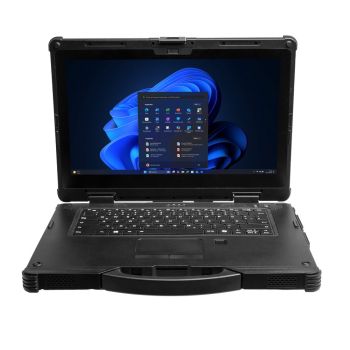

TERRA MOBILE INDUSTRY 1433 content_copy

General
Processor model: Intel® Core™ Ultra 7 Prozessor 155H (24M Cache, up to 4.80 GHz)
Operating system: Windows 11 Pro
Software
Pre-installed software: 1 month trial version for new Microsoft® 365 user
Display
Diagonal size : 35,6 cm ( 14 inch )
Display resolution: 1920 x 1080
Display type: LED - non glare
Aspect ratio: 16:9
Backlight type: LED backlight
Processor
Processor family: Core Ultra 7
Processor cores: Quad-Core
Memory
Internal memory: 32 GB
Maximum internal memory: 64 GB
Internal memory type: DDR5 RAM
Memory slots: 2 slots (1 already in use)
Optical drive
Optical drive type: None
Performance
Series: Industry
Network
Bluetooth: 5.2
Wi-Fi standards: Bluetooth, 802.11b/g/n/ac
mobile standards: 4G LTE (optional) 4G LTE upgradeable
Interface type: Gigabit Ethernet
Storage
HDD interface: SATA-600
Card reader integrated: Ja (SD-Karte)
SSD interface: PCIe (NVMe)
SSD capacity: 500 GB
Memory slots: 1 x M.2 2280 SSD, SATA/PCIe Gen3x4 Interface
1 x SATA Interface ( 7mm HDD/SSD )
HDD capacity: 240
Storage media: SSD
Total storage capacity: 500 GB
Technical details
Localization: German
Backlit keyboard: no
Weight & dimensions
Height: 4.1 cm
Weight: 2.3 kg
Battery
Battery life (max): 7 h
Battery technology: Lithium Ion
Other features
Internal modem: Fax / modem
Interface: 1 x USB 2.0
2 x USB 3.2 Gen 2
1 x USB 3.2 Gen 2 (type C with DP support)
VGA
HDMI 2.0
Seriell
Mikrofoneingang
Kopfhörerbuchse
LAN
Cardreader
Smart Card Reader
Docking Port
Special features: Environmental specifications: (Temperature) Operating: -20° to 60°
Design
Product colour: Antracite
Housing material: Aluminum-Magnesium Alloy
Security
Security features: Fingerprint-Sensor
TPM 2.0
Camera
Built-in camera: yes
Main camera resolution (numeric): 2 Megapixel
Notes
Additional Information: *The upgrade rollout plan is still being finalized but is scheduled to begin late in 2021 and continue into 2022. Specific timing will vary by device.

Battery
Battery technology	Lithium-Ion (Li-Ion)
Battery life (max)	7 h
Camera
Front camera resolution (numeric)	2 MP
Front camera
Design
Product type	Laptop
Product colour	Anthracite
Form factor	Clamshell
Housing material	Aluminium, Magnesium
Market positioning	Industry
Rugged design
Display
Display diagonal	35.6 cm (14")
Display resolution	1920 x 1080 pixels
HD type	Full HD
Native aspect ratio	16:9
Display diagonal (metric)	35.6 cm
LED backlight
Anti-glare screen
Graphics
Discrete graphics card model	Not available
On-board GPU manufacturer	Intel
On-board graphics card family	Intel Arc Graphics
On-board graphics card model	Intel Arc Graphics
On-board graphics card
Discrete graphics card
Keyboard
Keyboard language	German
Numeric keypad
Keyboard backlit
Memory
Internal memory	32 GB
Internal memory type	DDR5-SDRAM
Memory layout (slots x size)	1 x 32 GB
Memory slots	2x SO-DIMM
Maximum internal memory	64 GB
Network
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Wi-Fi standards	Wi-Fi 6 (802.11ax)
WLAN controller model	Intel Wi-Fi 6 AX201
Ethernet LAN data rates	1000 Mbit/s
Bluetooth version	5.1
WWAN	Upgradable
Mobile network connection
Ethernet LAN
Bluetooth
Neural processor unit (NPU)
Neural processor unit (NPU)	Intel AI Boost
AI software frameworks supported by NPU	OpenVINO, Windows ML, DirectML, ONNX RT
NPU performance up to	11 TOPs
Sparsity support
Windows Studio effects support
Operational conditions
Operating temperature (T-T)	-20 - 60 °C
Storage temperature (T-T)	-51 - 71 °C
Operating relative humidity (H-H)	5 - 95%
Other features
Slot type	1 x M.2 2280 SSD, SATA/PCIe Gen3x4 Interface
Locale	German
Internal modem
Packaging content
Cables included	AC
AC adapter included
Ports & interfaces
USB 2.0 ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
HDMI ports quantity	1
HDMI version	2.0
VGA (D-Sub) ports quantity	1
Headphone outputs	1
Serial ports quantity	1
Microphone in
Processor
Processor manufacturer	Intel
Processor family	Intel Core Ultra 7
Processor generation	Intel® Core™ Ultra (Series 1)
Processor model	155H
Processor cores	4
Processor threads	22
Processor boost frequency	4.8 GHz
Performance cores	6
Efficient cores	8
Low Power Efficient-cores	2
Performance-core Max Turbo Frequency	4.8 GHz
Efficient-core Max Turbo Frequency	3.8 GHz
Low Power Efficient-core Max Turbo Frequency	2.5 GHz
Performance-core base frequency	1.4 GHz
Efficient-core base frequency	0.9 GHz
Low Power Efficient-core Base Frequency	700 MHz
Processor cache	24 MB
Processor cache type	Smart Cache
Processor base power	28 W
Maximum turbo power	115 W
Security
Trusted Platform Module (TPM) version	2.0
Fingerprint reader
Smart card reader
Trusted Platform Module (TPM)
Software
Operating system installed	Windows 11 Pro
Storage
Total storage capacity	500 GB
Storage media	SSD
Total SSDs capacity	500 GB
Number of SSDs installed	1
SSD capacity	500 GB
SSD interface	PCI Express
SSD form factor	M.2
M.2 SSD size	2280 (22 x 80 mm)
Compatible memory cards	SD
NVMe
Optical drive type
Card reader integrated
Weight & dimensions
Width	363.2 mm
Depth	287.4 mm
Height	41 mm
Weight	2.3 kg

---
