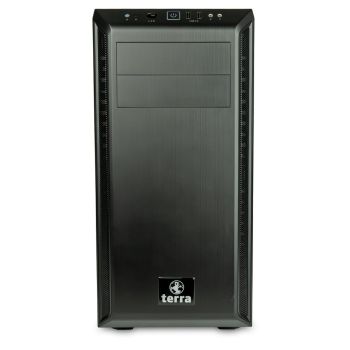

TERRA WORKSTATION 7500 BTO content_copy

General
Processor model: Intel Core i7-14700K / 16 Cores / 24 Threads /33M Cache
Software
Pre-installed software: 1 month trial version for new Microsoft® 365 user
Processor
Processor family: Core i9
Processor cores: 16-Core
Processor socket: FCLGA1700 Socket
Number of processors: 1
Memory
Internal memory: 16 GB
Memory layout (slots x size): 2 x 8 GB
Maximum internal memory: 128 GB
Memory clock speed: PC5600 MHz
Internal memory type: DDR5 SDRAM
Memory slots: 4
Memory form factor: DIMM 240-PIN
Storage
Total storage capacity: 1 TB
HDD interface: SATA-600
RAID levels: RAID 0
RAID 1
RAID 5
RAID 10 RAID 1 RAID 5 RAID 10
SSD interface: PCIe (NVMe)
SSD capacity: 1 TB
HDD capacity: 1 x 1 TB - SSD
Number of storage drives supported: 4 pc(s)
Storage media: SSD
Performance
Series: Workstation
Audio output channels: 8-channel
Design
Chassis type: Mid tower
Certification: ISO 9001, Assembled in Germany
Compatibility: SMBios (DMI), EnergyStar (Valid only for U.S.), EN60950, EN55022,EN55024, EN61000-3-2/3, 89/336/ECC
Keyboard form factor: Optional
Keyboard
Keyboard language: International
Connectivity technology: Wired
Device interface: USB
Technical details
Localization: International
Field of use: Sketchup
Autodesk AutoCAD
Expansion slots
Expansion slots: 2x PCIe 5.0 x16 Slot
2x PCIe 3.0 x16@x4 Slot
1x PCIe 3.0 x1 Slot Slot 1: PCI Express 3.0 x16 for VGA
Slot 2: PCI Express 2.0 x1
Slot 3: PCI Express 3.0 x16 @ x or x4 mode
Slot 4: PCI (3.3V/5V)
Slot 5: PCI Express 3.0 x16@x4 or x1 mode
Slot 6: PCI (3.3V/5V)
Slot 7: PCI Express 2.0 x16@x4/x1
Supports AMD CrossFireX Multi-GPU technology
Weight & dimensions
Height: 47 cm
Width: 22 cm
Depth: 49.2 cm
Weight: Brutto 17.5 kg
Netto 13.7 kg
Other features
Number of drive bays: 1 front - 13.3 cm ( 5.25" Slim-format )
1 front - 8.9 cm ( 3.5" Slim )
1 internal - 8.9 cm ( 3.5"/ 6,3 cm ( 2,5 inch ) with adapter)
1 internal 6.4 cm (for 6,3 cm ( 2,5 inch ) SSD)
Interface: 1x HDMI
1x DP
1x VGA
4x USB3.2 Gen 1
2x USB 3.2 Gen 2 A+C
2x USB 2.0
2x RJ45 2.5 GbE LAN
8-CH Audio
Compatible operating systems: Windows 10, Windows 11
Motherboard manufacturer: Asus Pro WS W680-ACE ASUS P10S WS
Cooling type: Active
Compliance industry standards: CE, ISO 9001, Assembled in Germany
Compatibility: PC2001, SMBios (DMI) 2.3, PCI 2.2,WFM 2.0, EnergyStar, EN60950, EN55022,EN55024, EN61000-3-2/3, 89/336/ECC
Mouse
Mouse included: TERRA Wheel Mouse Optical
Graphics
On-board graphics adapter memory: 4 GB
On-board graphics adapter maximum resolution: Max. 5120 x 2880 @ 60 Hz
Graphics adapter ports: 4x mDP
Power
Power source: Power adapter
Maximum input power: 650 Watt
AC adapter input voltage: AC 100/240 V ( 50/60 Hz )
Operational conditions
Operating temperature (T-T): 10 °C - 32 °C
Maximum operating temperature range (T-T): 32 °C
Recommended humidity operating range: 10 - 75% (non-condensing)
Network
Ethernet LAN: Netzwerkadapter - integriert
LAN controller: Intel I219LM, + Intel I210AT, 10/100/1000 Mbps, iAMT 11 support, WOL/PXE
Input device
Movement detection technology: Optical
Device interface: USB

Audio
Audio system	High Definition Audio
Design
Chassis type	Midi Tower
Placement supported	Vertical
Product colour	Black
Display
Display included
Expansion slots
PCI Express x1 (Gen 3.x) slots	1
PCI Express x16 (Gen 3.x) slots	2
PCI Express x16 (Gen 5.x) slots	2
Expansion slots	1x PCIe 5.0 x16 Slot ¦ 1x PCIe 3.0 x16@x4 Slot ¦1x PCIe 3.0 x1 Slot
Features
Motherboard manufacturer	Asus Pro WS W680-ACE
Graphics
Discrete GPU manufacturer	NVIDIA
Discrete graphics card model	NVIDIA T1000
Discrete graphics card memory	4 GB
Discrete graphics memory type	GDDR6
Number of discrete graphics cards	1
On-board GPU manufacturer	Intel
On-board graphics card family	Intel® UHD Graphics
On-board graphics card model	Intel UHD Graphics 770
Resolution description	Max. 5120 x 2880 @ 60 Hz
Graphics card Mini DisplayPort ports quantity	4
Discrete graphics card
On-board graphics card
Memory
Internal memory	16 GB
Maximum internal memory	128 GB
Internal memory type	DDR5-SDRAM
Memory layout (slots x size)	2 x 8 GB
Memory slots	4x DIMM
Memory clock speed	5600 MHz
Memory channels	Dual-channel
Network
Ethernet LAN data rates	100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
LAN controller	Intel® I219-LM, Intel® I210-AT
Ethernet LAN
Operational conditions
Operating temperature (T-T)	10 - 32 °C
Operating relative humidity (H-H)	10 - 75%
Other features
Locale	International repository
Packaging content
Cables included	AC
Mouse included
Manual
Packaging data
Package weight	17.5 kg
Performance
Market positioning	Business
Motherboard chipset	Intel W680
Product type	Workstation
Audio output channels	8.0 channels
Ports & interfaces
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
DisplayPorts quantity	1
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	2
Headphone outputs	1
VGA (D-Sub) ports quantity	1
Mini DisplayPorts quantity	4
Microphone in
Power
Power supply	650 W
Power supply input voltage	100 - 240 V
Power supply input frequency	50/60 Hz
80 PLUS certification	80 PLUS Gold
Processor
Processor manufacturer	Intel
Processor family	Intel® Core™ i9
Processor generation	Intel® Core™ i9 (14th gen)
Processor model	i9-14900
Processor cores	16
Processor threads	28
Performance cores	8
Efficient cores	12
Performance-core Max Turbo Frequency	5.6 GHz
Efficient-core Max Turbo Frequency	4.3 GHz
Performance-core base frequency	3.4 GHz
Efficient-core base frequency	2.5 GHz
Processor cache	33 MB
Processor cache type	Smart Cache
Number of processors installed	1
Processor socket	LGA 1700
Software
Operating system architecture	64-bit
Operating system installed	Windows 11 Pro
Compatible operating systems	Windows 10, Windows 11
Storage
Total storage capacity	1 TB
Storage media	SSD
Optical drive type	DVD±RW
Number of storage drives installed	1
Number of storage drives supported	4
Total HDDs capacity	1 TB
Total SSDs capacity	1 TB
SSD capacity	1 TB
SSD interface	PCI Express
SSD form factor	M.2
Storage options	Serial ATA-600
RAID levels	5, 1, 0, 10
NVMe
RAID support
Weight & dimensions
Width	220 mm
Depth	492 mm
Height	470 mm
Weight	13.7 kg

---
