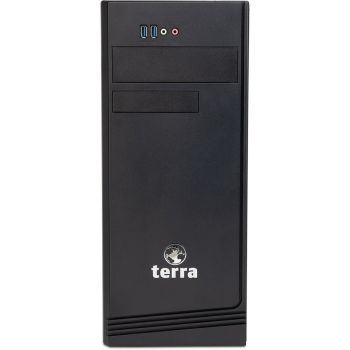

TERRA PC BUSINESS 7000 content_copy

General
Processor model: Intel Core i7 (14. Gen.) 14700 / 33 MB Intel Smart Cache, max. Turbo-Frequency 5.4 GHz)
Operating system: Windows 11 Pro
Software
Pre-installed software: 1 month trial version for new Microsoft® 365 user
Processor
Processor family: Core i7
Processor cores: 20-Core
Processor socket: FCLGA1700 Socket
Number of processors: 1
Memory
Internal memory: 16 GB
Memory layout (slots x size): 2 x 8 GB
Maximum internal memory: 128 GB
Memory clock speed: PC5600 MHz
Internal memory type: DDR5 SDRAM
Memory slots: 4 pc(s)
Storage
Total storage capacity: 1 TB
HDD interface: 2x M.2 (Key M) 2280/2260/2242, PCIe 4.0 x4 mode, 4x SATA 6Gb/s ports
Supports SATA Raid, no NVMe Raid
RAID levels: RAID 0
RAID 1
RAID 10
SSD interface: PCIe 4.0
SSD capacity: 1 TB
HDD capacity: 1 x 1 TB - SSD 1 x 1 TB - SSD
Number of storage drives supported: 4x SATA 6Gb/s
2x M.2 (2280) PCIe/NVMe 4.0 x4
Storage media: SSD M.2
Performance
Series: Business
Noise level: 24,0 dB (Idle-Mode)
Audio output channels: 8-channel
Motherboard chipset: Intel B760
Design
Chassis type: Mid tower
Certification: ISO 9001, Assembled in Germany
Compatibility: SMBios (DMI), EnergyStar (Valid only for U.S.), EN62368-1, EN55032, EN55035, EN61000-3-2/3, EN62623, 89/336/ECC
Keyboard
Keyboard language: German
Connectivity technology: Wired
Device interface: USB
Technical details
Localization: German
Packaging content
Included Accessories: Quick Start Guide, Powercord EU
Expansion slots
Expansion slots: 1x PCIe 4.0/3.0 x16 slot
2x PCIe 3.0 x1 1x PCIe 4.0/3.0 x16 slot
2x PCIe 3.0 x1
Weight & dimensions
Altura: 43.5 cm
Ancho: 18 cm
Profundidad: 42 cm
Weight: 8 kg
Other features
Number of drive bays: 1 front - 13.3 cm ( 5.25" )
1 front - 8.9 cm ( 3.5" )
2 internal - 8.9 cm ( 3.5"/ 6,3 cm ( 2,5 inch ) with adapter)
1 internal 6.4 cm (for 6,3 cm ( 2,5 inch ) SSD)
Interface: 1x HDMI, 2x DP (Display Port), 1x VGA
5x USB 3.2 Gen1 ports Type-A (2x front), 2x USB 2.0 ports, 1x USB 3.2 Gen2 Type-C
1x LAN RJ-45, 3x Audio jacks, 1x PS/2
Option: 1x COM, 1x LPT, 1x TPM module 4x USB 3.2 Gen1 ports Type-A (2x front), 2x USB 2.0 ports
1x LAN RJ-45, 3x Audio jacks, 2x PS/2
Option: 2x COM, 1x LPT, 1x TPM module
Compatible operating systems: Windows 10, Windows 11
Motherboard manufacturer: ASUS PRO B760M-C-CSM
24-7 ready
Cooling type: TERRA Silent Heatpipe Cooler
Compliance industry standards: CE, ISO 9001, Assembled in Germany
Compatibility: PC2001, SMBios (DMI) 2.3, PCI 2.2,WFM 2.0, EnergyStar, EN60950, EN55022,EN55024, EN61000-3-2/3, 89/336/ECC
Special features: TPM 2.0
Secure Boot
Windows Autopilot ready
2x USB 3.2 Gen1 Typ A + Audio in Front
Mouse
Mouse included: Terra Mouse Corded
Graphics
On-board graphics adapter memory: Dynamisch GB
On-board graphics adapter maximum resolution: DisplayPort 1.2 max. 4096 x 2304@60Hz
HDMI 2.1 max. 4096 x 2160@60Hz
D-Sub (VGA) max. 1920 x 1200@60Hz
Graphics card: Intel UHD Graphics 770
On-board graphics card model: Intel UHD Graphics 770
Graphics adapter ports: 1x HDMI, 2x DP (Display Port), 1x VGA
Supports Quad-Monitoring
Power
Maximum input power: 400 Watt
Nominal power: Ø 20 Watt Idle-Mode
Ø 77 kWh a year (TEC = Typical Energy Consumption)
Further information regarding Energy consumption see www.wortmann.de/green and/ or Quicklinks for this product (if available)
AC adapter input voltage: AC 230V ( 50 Hz )
Operational conditions
Intervalo de temperatura operativa: 0° - 35° C
Maximum operating temperature range (T-T): 32 °C
Recommended humidity operating range: 10 - 75% (non-condensing)
Network
Ethernet LAN: RJ45
LAN controller: 1x Intel 1Gb Ethernet, WOL by PME, PXE
Data link protocols: Ethernet
Fast Ethernet
Gigabit Ethernet
Optical drive
Optical drive type: Ohne optisches Laufwerk
Input device
Movement detection technology: Optical
Device interface: USB

Audio
Audio system	High Definition Audio
Design
Chassis type	Midi Tower
Product colour	Black
Expansion slots
PCI Express x1 slots	2
PCI Express x16 (Gen 4.x) slots	1
Expansion slots	1x PCIe 4.0/3.0 x16 slot ¦ 2x PCIe 3.0 x1
Features
Motherboard manufacturer	ASUS PRO B760M-C-CSM ¦ 24-7 ready
Graphics
Discrete graphics card model	Not available
On-board graphics card model	Intel UHD Graphics 770
Resolution description	DisplayPort 1.2 max. 4096 x 2304@60Hz ¦ HDMI 2.1 max. 4096 x 2160@60Hz ¦ D-Sub (VGA) max. 1920 x 1200@60Hz
On-board graphics card
Keyboard
Keyboard language	German
Memory
Internal memory	16 GB
Maximum internal memory	128 GB
Internal memory type	DDR5-SDRAM
Memory layout (slots x size)	2 x 8 GB
Memory slots	4x DIMM
Memory clock speed	5600 MHz
Network
Ethernet LAN data rates	100,1000 Mbit/s
Ethernet LAN
Operational conditions
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	10 - 75%
Other features
Locale	German
Packaging content
Cables included	AC
Mouse included
Keyboard included
Performance
Market positioning	Business
Motherboard chipset	Intel B760
Product type	PC
Trusted Platform Module (TPM) version	2.0
Audio output channels	8.0 channels
Sound pressure level	24 dB
Trusted Platform Module (TPM)
Ports & interfaces
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
DisplayPorts quantity	2
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
VGA (D-Sub) ports quantity	1
Power
Power supply	400 W
Power supply input voltage	230 V
Power supply input frequency	50 Hz
Power consumption (standby)	1.5 W
Power consumption (off)	0.25 W
80 PLUS certification	80 PLUS Bronze
Processor
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor generation	Intel® Core™ i7 (14th gen)
Processor model	i7-14700
Processor cores	20
Processor threads	28
Processor boost frequency	5.4 GHz
Performance cores	8
Efficient cores	12
Performance-core Max Turbo Frequency	5.3 GHz
Efficient-core Max Turbo Frequency	4.2 GHz
Performance-core base frequency	2.1 GHz
Efficient-core base frequency	1.5 GHz
Processor cache	33 MB
Processor cache type	Smart Cache
Number of processors installed	1
Processor socket	LGA 1700
Processor base power	65 W
Maximum turbo power	219 W
Software
Operating system installed	Windows 11 Pro
Compatible operating systems	Windows 10, Windows 11
Pre-installed software	1-month trial for new Microsoft® 365 customers
Storage
Total storage capacity	1 TB
Storage media	SSD
Number of storage drives supported	6
SSD capacity	1 TB
SSD interface	PCI Express 4.0
SSD form factor	M.2
Storage options	2x M.2 (Key M) 2280/2260/2242, PCIe 4.0 x4 mode, 4x SATA 6Gb/s ports ¦ Supports SATA Raid, no NVMe Raid
RAID levels	1, 0, 10
Optical drive type
RAID support
Weight & dimensions
Width	180 mm
Depth	420 mm
Height	435 mm
Weight	8 kg

---
