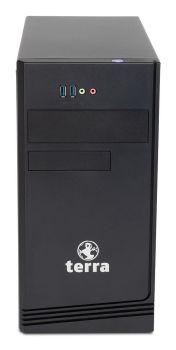

TERRA PC BUSINESS 6000 content_copy

General
Processor model: AMD Ryzen 5 PRO 8600G AI / 6 Cores / 12 Threads max 5.0 GHz
Operating system: Windows 11 Pro
Software
Pre-installed software: 1 month trial version for new Microsoft® 365 user
Processor
Processor family: AMD Ryzen 5
Processor cores: Hexa-Core (6 Core)
Processor socket: AM5
Number of processors: 1
Memory
Internal memory: 16 GB
Memory layout (slots x size): 1 x 16 GB
Maximum internal memory: 96 GB
Memory clock speed: PC4800 MHz
Internal memory type: DDR5 SDRAM
Memory slots: 2 pieza(s)
Memory form factor: DIMM, 288-PIN
Storage
Total storage capacity: 500 GB
HDD interface: 2x M.2 (Key M) 2280/2260/2242, PCIe 4.0 x4 mode, 4x SATA 6Gb/s ports
Supports SATA & PCIe Raid 0/1/10
RAID levels: RAID 0
RAID 1
RAID 10
SSD interface: PCIe 4.0
HDD capacity: 1 x 500 GB - SSD
Storage media: SSD M.2
Performance
Series: Business
Noise level: 22,7 dB (Idle-Mode)
30 dB(A) (CPU full load)
Measuring distance DIN EN ISO 7779: 0.5m
Audio output channels: 8-channel
Motherboard chipset: AMD A620
Design
Chassis type: Mini tower
Certification: ISO 9001, Assembled in Germany
Compatibility: SMBios (DMI), EnergyStar (Valid only for U.S.), EN62368-1, EN55032, EN55035, EN61000-3-2/3, EN62623, 89/336/ECC
Keyboard form factor: TERRA Keyboard German Layout
Keyboard
Keyboard language: German
Connectivity technology: Wired
Device interface: USB
Technical details
Localization: German
Packaging content
Included Accessories: Quick Start Guide, Powercord EU
Expansion slots
Expansion slots: 1x PCIe 4.0 x16
2x PCI 3.0 x1
1x PCI
Weight & dimensions
Height: 37.5 cm
Width: 18 cm
Depth: 38.4 cm
Weight: 7 kg
Other features
Number of drive bays: 1 front - 13.3 cm ( 5.25" )
1 front - 8.9 cm ( 3.5" )
1 internal - 8.9 cm ( 3.5"/ 6,3 cm ( 2,5 inch ) with adapter)*
1 internal 6.4 cm (for 6,3 cm ( 2,5 inch ) SSD)
*Depending on production batch, installation basket for additional drives optional
Interface: Front: 2x USB 3.2 Type A, 2x Audio
Rear: 2x USB 3.2 Type A, 1x USB 3.2 Type C, 3x USB 2.0 Type A, DP, HDMI, DVI-D, VGA, 1x RJ45, COM, PS/2 combo
Compatible operating systems: Windows 10, Windows 11
Motherboard manufacturer: ASUS Pro A620M-C-CSM 24-7 ready
Cooling type: TERRA Silent Cooler
Compliance industry standards: CE, ISO 9001, Assembled in Germany
Compatibility: PC2001, SMBios (DMI) 2.3, PCI 2.2,WFM 2.0, EnergyStar, EN60950, EN55022,EN55024, EN61000-3-2/3, 89/336/ECC
Special features: TPM 2.0
Secure Boot
Windows Autopilot ready
2x USB 3.2 Gen1 Typ A + Audio in Front
Mouse
Mouse included: Terra Mouse Corded
Graphics
On-board graphics adapter memory: Dynamisch GB
On-board graphics adapter maximum resolution: HDMI max. 4096 x 2160 @ 60Hz
DP max. 7680 x 4320 @60Hz
VGA max. 1920x1200
Graphics card: AMD Radeon™ 760M
On-board graphics card model: AMD Radeon™ 760M
Graphics adapter ports: 1x Display Port 1.4
1x HDMI 2.1
1x DVI-D
1x VGA
Power
Maximum input power: 350 W
Nominal power: Ø 14 Watt Long Idle-Mode
Ø 51 kWh a year (TEC = Typical Energy Consumption)
Further information regarding Energy consumption see https://www.wortmann.de/green and/ or Quicklinks for this product (if available)
AC adapter input voltage: AC 230V ( 50 Hz )
Operational conditions
Intervalo de temperatura operativa: 0° - 35° C
Maximum operating temperature range (T-T): 32 °C
Recommended humidity operating range: 10 - 75% (non-condensing)
Network
Ethernet LAN: RJ45
LAN controller: Realtek GbE LAN chip, WOL/ PXE
Optical drive
Optical drive type: w/o ODD
Input device
Movement detection technology: Optical
Device interface: USB

Audio
Audio system	High Definition Audio
Certificates
Compliance certificates	CE
Design
Chassis type	Mini Tower
Product colour	Black
Display
Display included
Expansion slots
PCI Express x16 (Gen 3.x) slots	2
PCI Express x16 (Gen 4.x) slots	1
Expansion slots	1x PCIe 4.0 x16¦ 2x PCI 3.0 x1¦ 1x PCI
Features
Motherboard manufacturer	ASUS Pro A620M-C-CSM 24-7 ready
Graphics
Discrete graphics card model	Not available
On-board GPU manufacturer	AMD
On-board graphics card family	AMD Radeon Graphics
On-board graphics card model	AMD Radeon 760M
Number of external displays supported	4
Resolution description	HDMI max. 4096 x 2160 @ 60Hz ¦ DP max. 7680 x 4320 @60Hz ¦ VGA max. 1920x1200
Graphics card HDMI ports quantity	1
Graphics card DisplayPorts quantity	1
Graphics card DVI-D ports quantity	1
Graphics card VGA (D-Sub) ports quantity	1
Discrete graphics card
On-board graphics card
On-board graphics card 6K support
On-board graphics card 8K support
Keyboard
Keyboard connectivity	Wired
Keyboard language	German
Memory
Internal memory	16 GB
Maximum internal memory	96 GB
Internal memory type	DDR5-SDRAM
Memory layout (slots x size)	1 x 16 GB
Memory slots	2x DIMM
Memory clock speed	4800 MHz
Network
Ethernet LAN data rates	100,1000 Mbit/s
Ethernet LAN
Neural processor unit (NPU)
Neural processor unit (NPU)	AMD Ryzen AI
NPU performance up to	16 TOPs
Operational conditions
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	10 - 75%
Other features
Locale	German
Packaging content
Mouse connectivity	Wired
Cables included	AC
Mouse included
Keyboard included
Manual
Performance
Market positioning	Business
Motherboard chipset	AMD A620
Product type	PC
Trusted Platform Module (TPM) version	2.0
Audio output channels	8.0 channels
Sound pressure level	22.7 dB
Trusted Platform Module (TPM)
Ports & interfaces
USB 2.0 ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
DisplayPorts quantity	1
DisplayPort version	1.4
HDMI ports quantity	1
HDMI version	2.1
Ethernet LAN (RJ-45) ports	1
VGA (D-Sub) ports quantity	1
PS/2 ports quantity	2
Number of rear USB ports	6
Number of front USB ports	2
Number of front audio ports	2
Number of rear audio ports	1
Combo headphone/mic port
DVI port
Power
Power supply	350 W
Power supply input voltage	230 V
Power supply input frequency	50 Hz
Power consumption (typical)	18 W
Power consumption (standby)	1 W
Power consumption (off)	0.25 W
80 PLUS certification	80 PLUS Bronze
Processor
Processor manufacturer	AMD
Processor family	AMD Ryzen™ 5
Processor generation	AMD Ryzen PRO 8000 Series
Processor model	8600G
Processor cores	6
Processor threads	12
Processor boost frequency	5 GHz
Processor frequency	4.3 GHz
Processor cache	16 MB
Processor cache type	L2 & L3
Number of processors installed	1
Processor socket	Socket AM5
Processor base power	65 W
Software
Operating system installed	Windows 11 Pro
Compatible operating systems	Windows 10, Windows 11
Storage
Total storage capacity	500 GB
Storage media	SSD
Total SSDs capacity	500 GB
Number of SSDs installed	1
SSD capacity	500 GB
SSD interface	PCI Express 4.0
SSD form factor	M.2
M.2 SSD size	2280 (22 x 80 mm)
Storage options	2x M.2 (Key M) 2280/2260/2242, PCIe 4.0 x4 mode, 4x SATA 6Gb/s ports ¦ Supports SATA & PCIe Raid 0/1/10
RAID levels	1, 0, 10
Optical drive type
RAID support
Weight & dimensions
Width	180 mm
Depth	384 mm
Height	375 mm
Weight	7 kg

---
