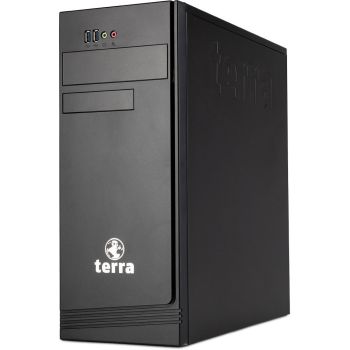

TERRA PC BUSINESS MARATHON content_copy

General
Processor model: Intel Core i7 (14. Gen.) 14700 / 33 MB Intel Smart Cache, max. Turbo-Frequency 5.4 GHz)
Operating system: Windows 11 Pro
Software
Pre-installed software: 1 month trial version for new Microsoft® 365 user
Processor
Processor family: Core i7
Processor cores: 20-Core
Processor socket: FCLGA1700 Socket
Number of processors: 1
Memory
Internal memory: 32 GB
Memory layout (slots x size): 2 x 16 GB
Maximum internal memory: 128 GB
Memory clock speed: PC4800 MHz
Internal memory type: DDR5 SDRAM
Memory slots: 4
Storage
Total storage capacity: 1 TB
HDD interface: 4x Serial-ATA III 600 (up to 6GBit/s), NCQ, AHCI, RAID 0/1/5/10
• 2x M.2 2280 (Key-M) for PCIe/NVMe SSD modules incl. NVMe RAID 0/1 Support
RAID levels: PCIe/NVMe RAID 0/1/5 & SATA RAID 0/1/5/10 RAID 1 RAID 5 RAID 10
SSD interface: PCIe (NVMe)
SSD capacity: 1 TB
HDD capacity: 2x 1TB M.2 NVMe Raid 1
Storage media: SSD M.2
Performance
Series: Business
Audio output channels: 8-channel
Motherboard chipset: Intel Q670
Design
Chassis type: Mid tower
Certification: ISO 9001, Assembled in Germany
Compatibility: SMBios (DMI), EnergyStar (Valid only for U.S.), EN62368-1, EN55032, EN55035, EN61000-3-2/3, EN62623, 89/336/ECC
24-7 ready (temporary fan-maintance required)
Keyboard form factor: TERRA Keyboard German Layout
Keyboard
Keyboard language: German
Connectivity technology: Wired
Device interface: USB
Technical details
Localization: UK
Packaging content
Included Accessories: Quick Install Guide, Multi-country AC adapter (IEC plug types A, C, G & I), VESA mounting Kit
Expansion slots
Expansion slots: 1x PCIe x16 Gen5, 1x PCIe x16 @ x4 Gen4, 1x PCIe x1 Gen3 open slot, 1x PCIe x1 Gen3
Weight & dimensions
Altura: 43.5 cm
Ancho: 18 cm
Profundidad: 42 cm
Weight: 8 kg
Other features
Number of drive bays: 1 front - 13.3 cm ( 5.25" )
1 front - 8.9 cm ( 3.5" )
2 internal - 8.9 cm ( 3.5"/ 6,3 cm ( 2,5 inch ) with adapter)
1 internal 6.4 cm (for 6,3 cm ( 2,5 inch ) SSD)
Interface: 4x DisplayPort V1.4a, Audio (Mic-in / Line-in/-out), 1x LAN, 4x USB 3.2 (Gen1), 2x USB 3.2 (Gen2), 1x USB-C 3.2 (Gen2), COM1
Compatible operating systems: Windows 10, Windows 11
Motherboard manufacturer: Kontron K3842-Q1
Cooling type: TERRA Silent Heatpipe Cooler
Compliance industry standards: CE, ISO 9001, Assembled in Germany
Compatibility: PC2001, SMBios (DMI) 2.3, PCI 2.2,WFM 2.0, EnergyStar, EN60950, EN55022,EN55024, EN61000-3-2/3, 89/336/ECC
24-7 ready (temporary fan-maintance required)
Mouse
Mouse included: Terra Mouse Corded
Graphics
On-board graphics adapter memory: Dynamisch GB
On-board graphics adapter maximum resolution: HDMI 4K @60Hz
DP 4K @60Hz
Graphics card: Intel UHD Graphics 770
On-board graphics card model: Intel UHD Graphics 770
Graphics adapter ports: 4x DisplayPort V1.4a
Power
Power consumption (standby): Ø 0.4 Watt
Maximum input power: 450 W
AC adapter input voltage: AC 100/240 V ( 50/60 Hz )
Operational conditions
Intervalo de temperatura operativa: 0° - 35° C
Maximum operating temperature range (T-T): 32 °C
Recommended humidity operating range: 10 - 75% (non-condensing)
Network
Ethernet LAN: Netzwerkadapter - integriert
LAN controller: 1x Intel 1Gb Ethernet, WOL by PME, PXE
Optical drive
Optical drive type: w/o ODD
Input device
Movement detection technology: Optical
Device interface: USB
Notes
Additional Information: *The upgrade rollout plan is still being finalized but is scheduled to begin late in 2021 and continue into 2022. Specific timing will vary by device.

Audio
Audio system	High Definition Audio
Design
Chassis type	Midi Tower
Product colour	Black
Expansion slots
PCI Express x1 slots	1
PCI Express x8 (Gen 4.x) slots	1
PCI Express x16 slots	1
Expansion slots	1x PCIe x16 Gen5, 1x PCIe x16 @ x4 Gen4, 1x PCIe x1 Gen3 "open slot", 1x PCIe x1 Gen3
Features
Motherboard manufacturer	Kontron K3842-Q1
Graphics
Discrete graphics card model	Not available
On-board GPU manufacturer	Intel
On-board graphics card family	Intel® UHD Graphics
On-board graphics card model	Intel UHD Graphics 770
Resolution description	HDMI 4K @60Hz ¦ DP 4K @60Hz
Discrete graphics card
On-board graphics card
Keyboard
Keyboard language	German
Memory
Internal memory	32 GB
Maximum internal memory	128 GB
Internal memory type	DDR5-SDRAM
Memory layout (slots x size)	2 x 16 GB
Memory slots	4x DIMM
Memory clock speed	4800 MHz
Network
Ethernet LAN data rates	100,1000,10 Mbit/s
Ethernet LAN
Operational conditions
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	10 - 75%
Other features
Locale	German
Packaging content
Cables included	AC
Mouse included
Keyboard included
Performance
Market positioning	Industry
Motherboard chipset	Intel Q670
Product type	PC
Audio output channels	8.0 channels
Sound pressure level	22.7 dB
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
DisplayPorts quantity	4
DisplayPort version	1.4a
Ethernet LAN (RJ-45) ports	1
Line-out
Line-in
Power
Power supply	450 W
Power supply input voltage	100 - 240 V
Power supply input frequency	50/60 Hz
Power consumption (standby)	1.4 W
Power consumption (off)	0.17 W
Power consumption (long idle)	14 W
80 PLUS certification	80 PLUS Bronze
Processor
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor generation	Intel® Core™ i7 (14th gen)
Processor model	i7-14700
Processor cores	20
Processor threads	28
Processor boost frequency	5.4 GHz
Performance cores	8
Efficient cores	12
Performance-core Max Turbo Frequency	5.4 GHz
Efficient-core Max Turbo Frequency	4.2 GHz
Performance-core base frequency	2.1 GHz
Efficient-core base frequency	1.5 GHz
Processor cache	33 MB
Processor cache type	Smart Cache
Number of processors installed	1
Processor socket	LGA 1700
Processor base power	65 W
Maximum turbo power	219 W
Software
Operating system installed	Windows 11 Pro
Compatible operating systems	Windows 10, Windows 11
Pre-installed software	1-month trial for new Microsoft® 365 customers
Storage
Total storage capacity	1 TB
Storage media	SSD
Total SSDs capacity	1 TB
Number of SSDs installed	1
SSD capacity	1 TB
SSD form factor	M.2
Storage options	4x Serial-ATA III 600 (up to 6GBit/s), NCQ, AHCI, RAID 0/1/5/10¦ • 2x M.2 2280 (Key-M) for PCIe/NVMe SSD modules incl. NVMe RAID 0/1 Support
RAID levels	5, 1, 0, 10
Optical drive type
NVMe
RAID support
Weight & dimensions
Width	180 mm
Depth	420 mm
Height	435 mm
Weight	8 kg

---
