Tekbox TBxA bundle / bundle of TBWA 20 and 40dB and TBDA 14 and 28dB broadband amplifier
|
-5% 553,44 EUR 582,56 EUR |
|
|
( 658,59 EUR incl. VAT ) plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: 1 pieces | |
| Lieske Part No.: | 2037479 |
|---|---|
| Mfg Part No: | TBWADA/bundle |
| Weight: | 1 kg |
Product information for Tekbox TBWADA/bundle:

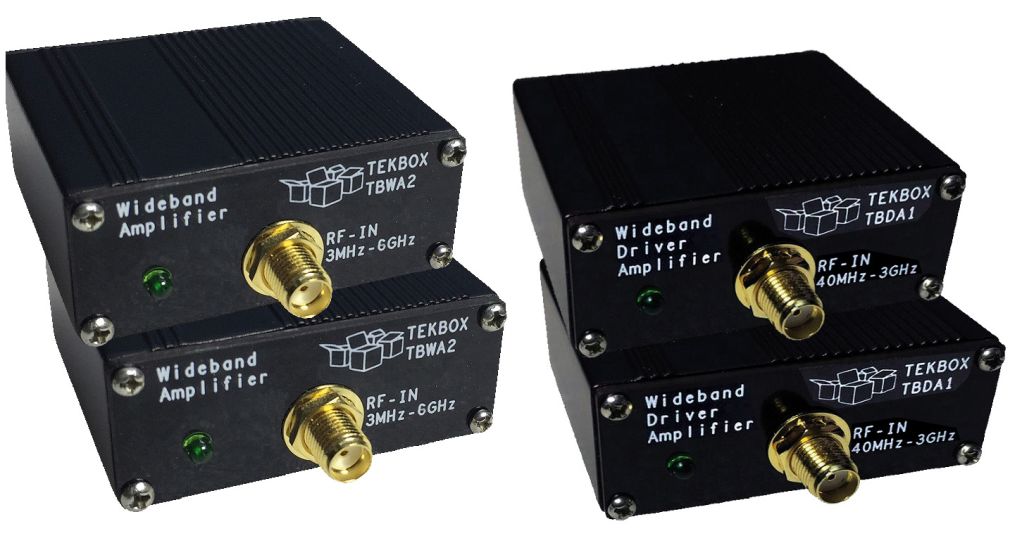

Bundle of the most common broadband amplifiers:
TBWA2-20dB and -40dB gain for connecting near-field probes - now up to 6 GHz!TBDA1/14dB and -28dB for amplifying signals from HF function generators for compatibility measurements.
These broadband amplifiers are typically connected between the near-field probe and the spectrum analyzer to increase the dynamic range of the measurement. The amplifiers are now specified up to 6 GHz (see characteristics in the data sheet).
TBWA2/20dB
Input: 50 Ohm, SMA
Output: 50 Ohm, SMA
Nominal supply voltage: 4.5 - 5V, typ. 110mA, Mini-USB-B connection
Maximum supply voltage: 5.5V
Maximum input power: +10dBm
1dB output compression point @ 2GHz: +20dBm
3rd order output intersection @ 2GHz, Pin = 0dBm/ton, ?f = 10MHz: +35dBm
reverse isolation S12, 0.1 ...6GHz: 23dB Noise
figure @ 2GHz: 4.5 ... 5 dB
TBWA2/40dB
Input: 50 Ohm, SMA
Output: 50 Ohm, SMA
Nominal supply voltage: 4.5 - 5V, typ. 210mA, Mini-USB-B connection
Maximum supply voltage: 5.5V
Maximum input power: -10dBm
1dB Output compression point @ 2GHz: +20dBm
reverse Isolation S12, 0.1 ...6GHz: 40dB
Noise figure at 2GHz: 5 dB
TBDA1/14dB
Input: 50 Ohm, SMA female
Output: 50 Ohm, SMA female
Nominal supply Voltage: 5V, typ. 115mA, Mini-USB-B connector
Maximum supply voltage: 5.5V
Maximum input power: +20dBm
1dB output compression point @ 40MHz: +21.5dBm
1dB output compression point @ 2 GHz: +22.5dBm
3rd order output intercept point @ 40 MHz: +40dBm
3rd order output intercept point @ 2 GHz: +43dBm
Reverse isolation S12: -20dB
Noise Figure: 3 … 4 dB
TBDA1/28dB
Input: 50 Ohm, SMA female
Output: 50 Ohm, SMA female
Nominal supply Voltage: 5V, typ. 225mA, Mini-USB-B connector
Maximum supply voltage: 5.5V
Maximum input power: +6 dBm
1dB output compression point @ 40MHz: +21.5dBm
1dB output compression point @ 2 GHz: +22.5dBm
3rd order output intercept point @ 40 MHz: +39.8dBm
3rd order output intercept point @ 2 GHz: +42.8dBm
Reverse isolation S12: < -40dB
Noise Figure: 3.1 … 4.1 dB
.
