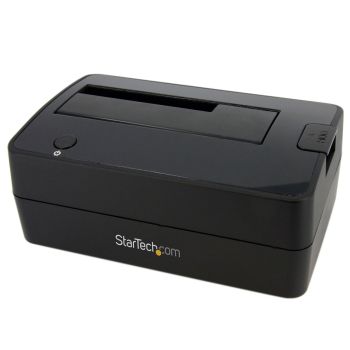

StarTech.com SuperSpeed USB 3.0 to SATA Hard Drive Docking Station for 2.5/3.5 HDD - storage control content_copy

Enable fast, swappable access to your 2.5in or 3.5in SATA hard drives, through USB 3.0.The SATDOCKU3S USB 3.0 Hard Drive Docking Station delivers full, instant access to any 2.5in or 3.5in SATA (SATA, SATA II, SATA III) hard drive (HDD) or solid state drive (SSD), without having to mount the drive in a computer or install it in an external enclosure. Large capacity drives (tested with up to 4TB) can be used to greatly enhance your computer's storage/backup capabilities.Connected to the host computer through a single USB 3.0 SuperSpeed or USB 2.0 connection, the hard drive docking station provides a convenient, plug-and-play storage solution that delivers instant access to the hard drive without requiring a reboot.Relying on the outstanding data throughput support of USB 3.0, the HDD docking station is capable of transfer speed up 5Gbps, making it the fastest way to access data from an external drive. Double the value of this hard drive docking station, using a SATA to IDE hard drive adapter (SAT2IDEADP), which enables you to use any 2.5 or 3.5in IDE hard drive in a SATA hard drive dock slot.

Cooling
Built-in fan
Features
Product colour	Black
Material	Plastic
Maximum data transfer rate	5 Gbit/s
LED indicators	Activity, Power
Certification	CE, FCC
Hot-swap
Plug and Play
UASP support
Hard drive
Storage media type	HDD, SSD
Storage drive interface	Serial ATA, Serial ATA II, Serial ATA III
Storage drive sizes supported	2.5,3.5"
Number of storage drives supported	1
Maximum storage capacity	4 TB
Logistics data
Harmonized System (HS) code	84733080
Master (outer) case width	486 mm
Master (outer) case length	192 mm
Master (outer) case height	389 mm
Products per master (outer) case	10 pc(s)
Operational conditions
Operating temperature (T-T)	5 - 80 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	8 - 80%
Other features
Chipset	ASMedia - ASM1053
Compliance certificates	RoHS
Packaging content
Cables included	USB
AC adapter included
Manual
Packaging data
Package width	163 mm
Package depth	172 mm
Package height	94 mm
Package weight	728 g
Ports & interfaces
Host interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-B
USB 3.2 Gen 1 (3.1 Gen 1) ports quantity	1
DC-in jack
Power
AC input voltage	110-240 V
Output voltage	12 V
Output current	2.5 A
Power plug type	Type M
Software
Windows operating systems supported	Windows 2000, Windows 2000 Professional, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.
Mac operating systems supported	Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Linux operating systems supported
Weight & dimensions
Width	145 mm
Depth	93 mm
Height	65 mm
Weight	400 g

---
