StarTech.com PCI Express to 2 PCI & 2 PCIe Expansion Enclosure System - Full Length - system bus ext content_copy

Add four external I/O expansion card slots to a desktop or laptop computer system. StarTech.com's innovative PCI/PCI Express Expansion Chassis provides a quick and simple solution to I/O expandability on almost any PCI Express (PCIe) enabled system. Adding external PCI and PCIe slots to a server/workstation or laptop, this cost-effective and time-saving method of simply adding additional PCI/PCIe cards to a server/workstation or providing a platform to be able to swap PCI/PCIe add-in cards between a mobile and desktop setup is the optimal method of maximizing the I/O capabilities of new or existing systems.

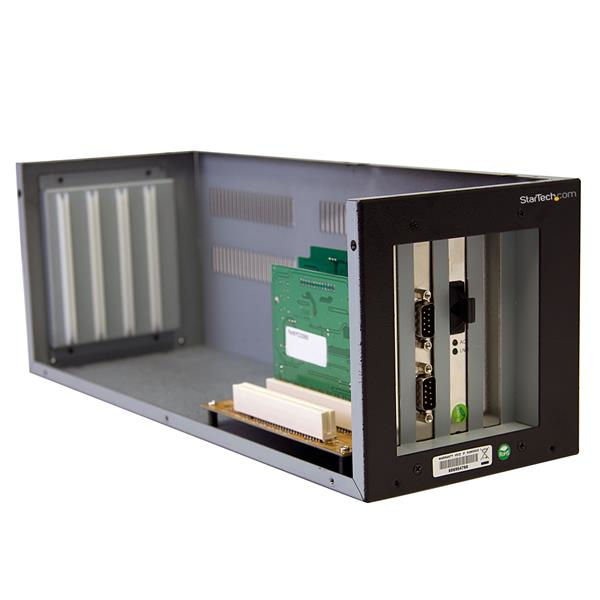

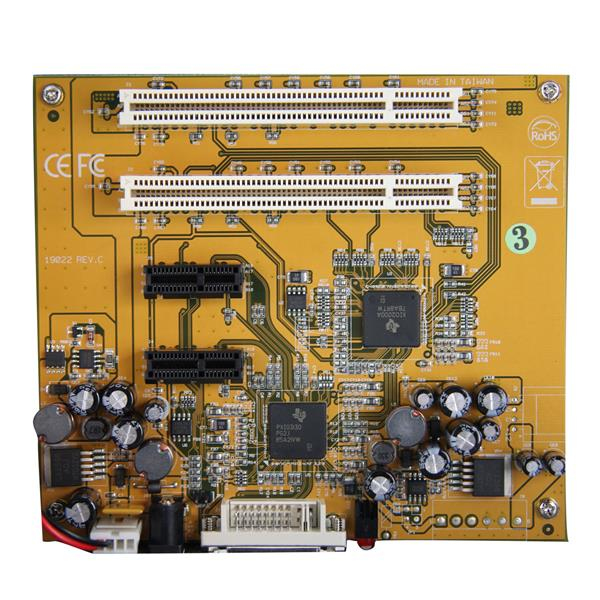

The external expansion chassis adds two full length (38cm) PCI slots (32-bit/33MHz) as well as two PCIe x1 (single lane) slots to the host computer system, through a single PCI Express connection. Providing total bandwidth of up to 250MBps from the x1 PCIe host controller card, which allows the host computer to function as though the cards in the expansion chassis were connected directly to the motherboard.

For mobile applications, the Expansion Chassis can be connected to an ExpressCard enabled laptop using StarTech.com's ExpressCard connection cable (EC2PCI), which adds the same functionality offered by the Expansion Chassis to a laptop. This eliminates the expense and need of having to purchase different card adapters for the laptop. The Expansion Chassis is a dependable I/O expansion solution.

Design
Certification	ROHS, CE, FCC
Logistics data
Harmonized System (HS) code	84719000
Products per master (outer) case	2 pc(s)
Master (outer) case width	524 mm
Master (outer) case length	436 mm
Master (outer) case height	283 mm
Operational conditions
Operating temperature (T-T)	0 - 55 °C
Storage temperature (T-T)	-40 - 75 °C
Operating relative humidity (H-H)	5 - 95%
Other features
Data transfer rate	250 Mbit/s
Ports quantity	4
Cable length	0.9 m
Compatible operating systems	Win 2000/XP/2003/ Vista Linux Mac OS X
Power requirements	115 - 230 AC
Packaging data

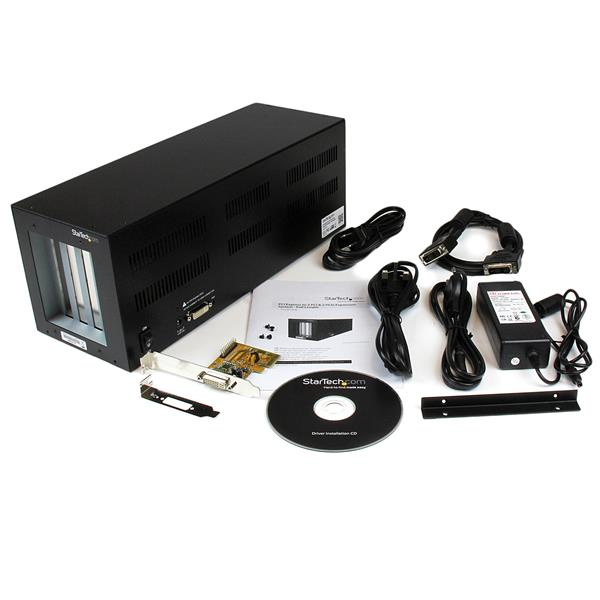

Cables included	AC, DVI
Package width	443 mm
Package depth	209 mm
Package height	248 mm
Package weight	2.1 kg
Manual
Power
Output voltage	12 V
Output current	3 A
Weight & dimensions
Width	137 mm
Depth	382 mm
Height	143 mm
Weight	2 kg

---
