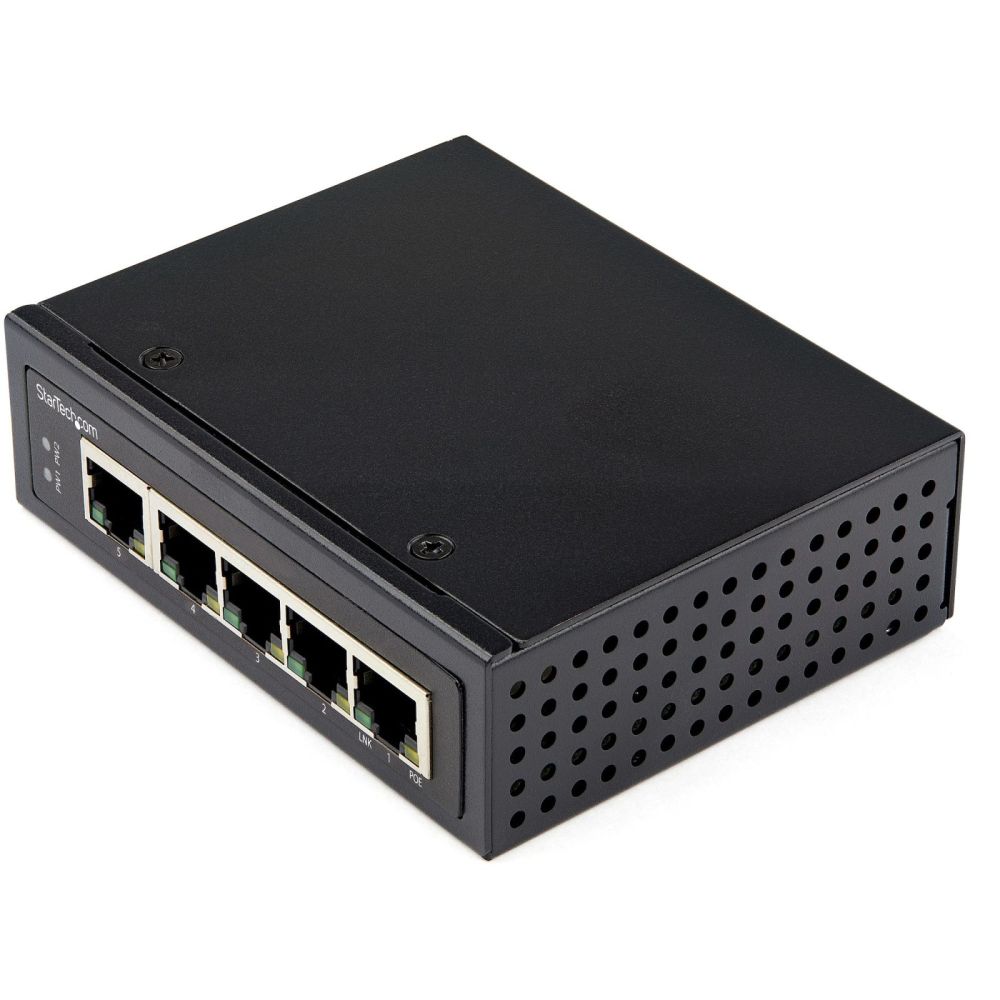

STARTECH.COM Industrial 5 Port Gigabit PoE Switch 30W - Power Over Ethernet Switch - GbE PoE+ Network Switch Unmanaged IP-30
|
234,21 EUR 240,34 EUR |
|
|
( 278,71 EUR incl. VAT ) ≈ £196.03 | ≈ $261.14 plus delivery charges: 55,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1633015 |
| Mfg Part No: | IESC1G50UP |
| UPC/EAN: | 0065030889629 |
| Weight: | 1 kg |
| Type: | PERP |
Product information for Startech.com IESC1G50UP:
| Certificates | |
| Certification | CE, FCC, RoHS, UL |
| Data transmission | |
| Jumbo frames | 9000 |
| Jumbo frames support | |
| Design | |
| Product colour | Black |
| Housing material | Steel |
| International Protection (IP) code | IP30 |
| Safety | EN60950-1 |
| Rack mounting | |
| LED indicators | |
| Wall mountable | |
| DIN rail mounting | |
| Logistics data | |
| Master (outer) case width | 362 mm |
| Master (outer) case length | 366 mm |
| Master (outer) case height | 250 mm |
| Harmonized System (HS) code | 85176990 |
| Products per master (outer) case | 10 pc(s) |
| Management features | |
| Switch type | Unmanaged |
| Network | |
| Networking standards | IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x |
| 10G support | |
| Full duplex | |
| Flow control support | |
| Auto MDI/MDI-X | |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 75 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Other features | |

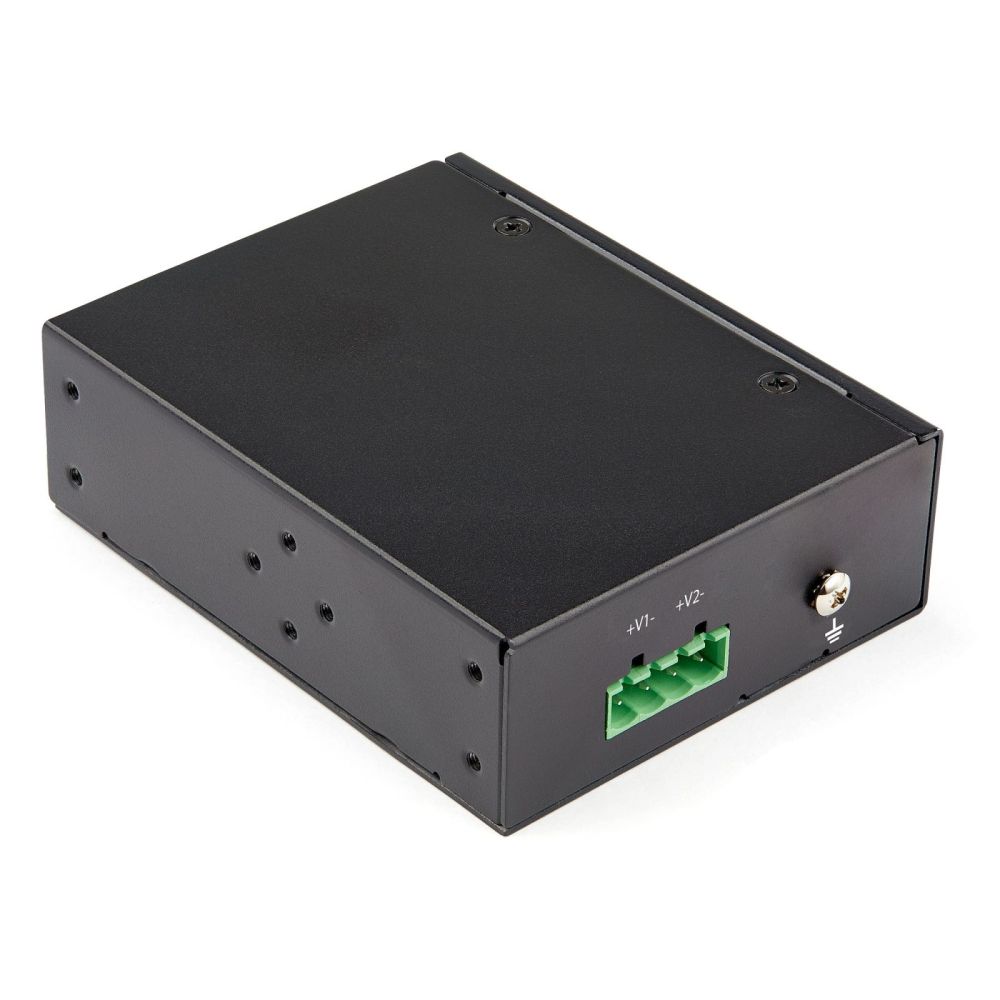

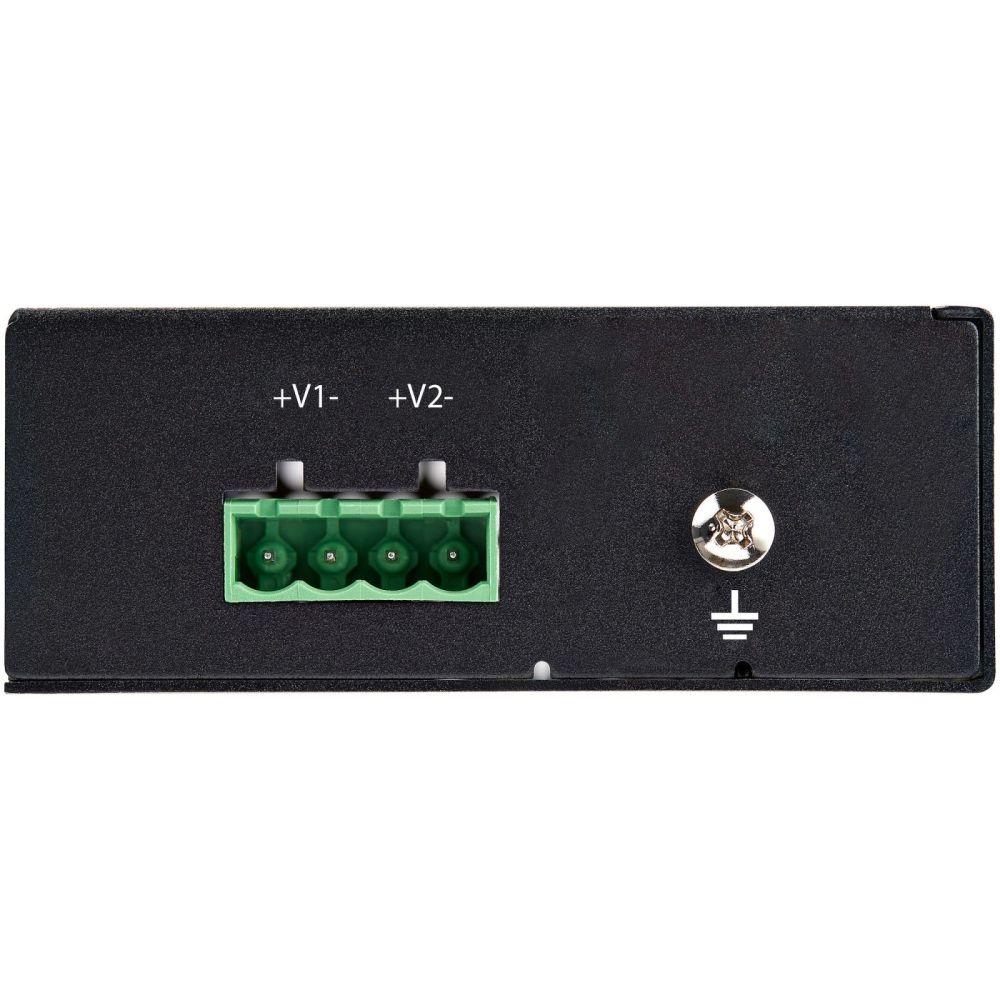

| Terminal block port | |
| Packaging content | |
| Quick start guide | |
| Packaging data | |
| Package width | 168 mm |
| Package depth | 214 mm |
| Package height | 68 mm |
| Package weight | 392.6 g |
| Terminal block included | |
| Performance | |
| Maximum cable length | 100 m |
| Mean time between failures (MTBF) | 538451 h |
| Ports & interfaces | |

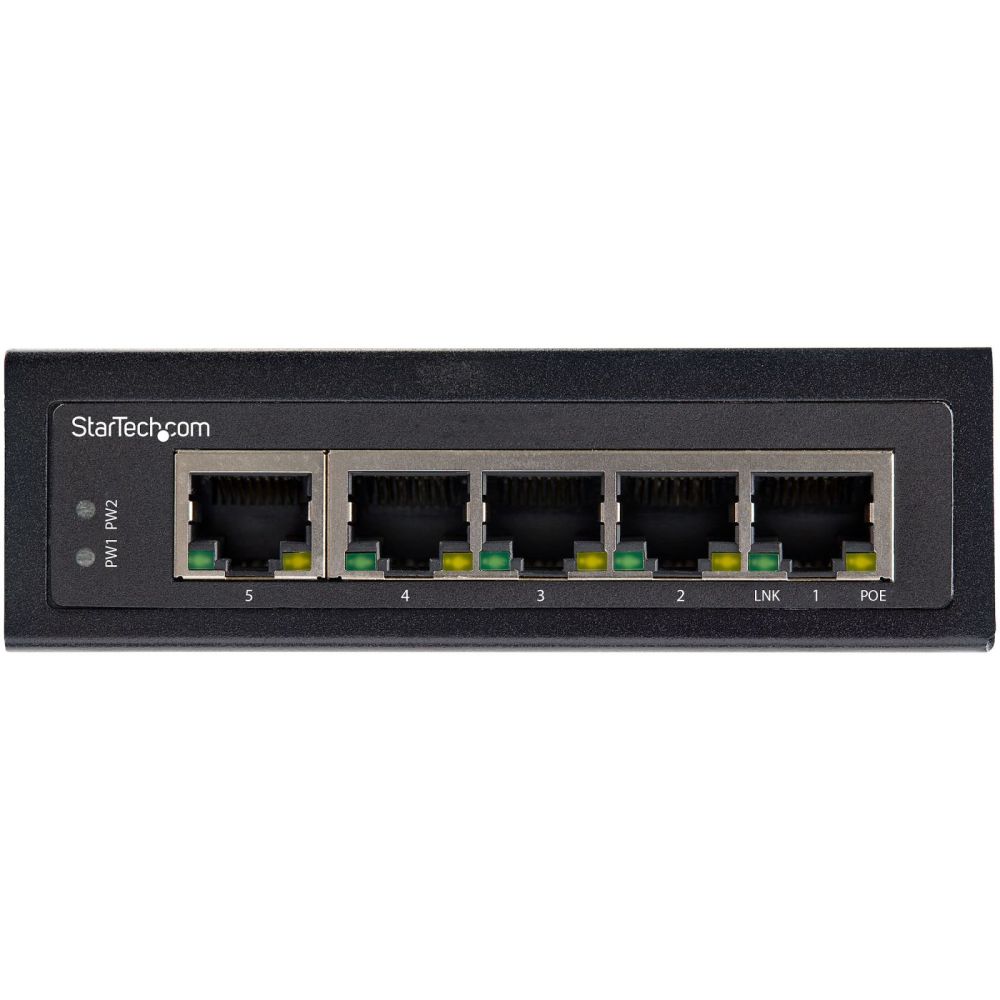

| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Power | |
| DC input voltage | 48 - 56 V |
| Surge protection voltage | 2 kV |
| Power plug type | Type N |
| Surge protection | |
| Power over Ethernet (PoE) | |
| Power over Ethernet plus (PoE+) ports quantity | 5 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 120 W |
| Power over Ethernet (PoE) | |
| Protocols | |
| Supported network protocols | CSMA/CD |
| Weight & dimensions | |
| Width | 81.5 mm |
| Depth | 104 mm |
| Height | 32 mm |
| Weight | 150.6 g |
Questions & answers
What is the delivery time of STARTECH.COM Industrial 5 Port Gigabit PoE Switch 30W - Power Over Ethernet Switch - GbE PoE+ Network Switch Unmanaged IP-30?
The article STARTECH.COM Industrial 5 Port Gigabit PoE Switch 30W - Power Over Ethernet Switch - GbE PoE+ Network Switch Unmanaged IP-30 is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Startech.com IESC1G50UP to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you STARTECH.COM Industrial 5 Port Gigabit PoE Switch 30W - Power Over Ethernet Switch - GbE PoE+ Network Switch Unmanaged IP-30 always at the best possible price. We can give you a discount of 2% on STARTECH.COM Industrial 5 Port Gigabit PoE Switch 30W - Power Over Ethernet Switch - GbE PoE+ Network Switch Unmanaged IP-30 if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
