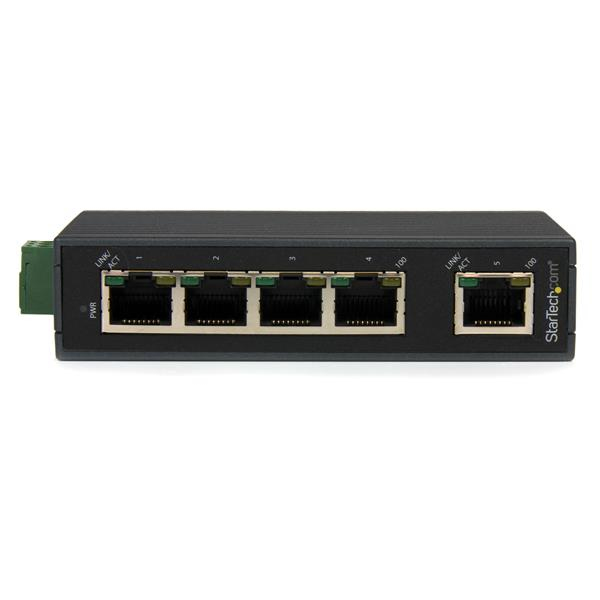

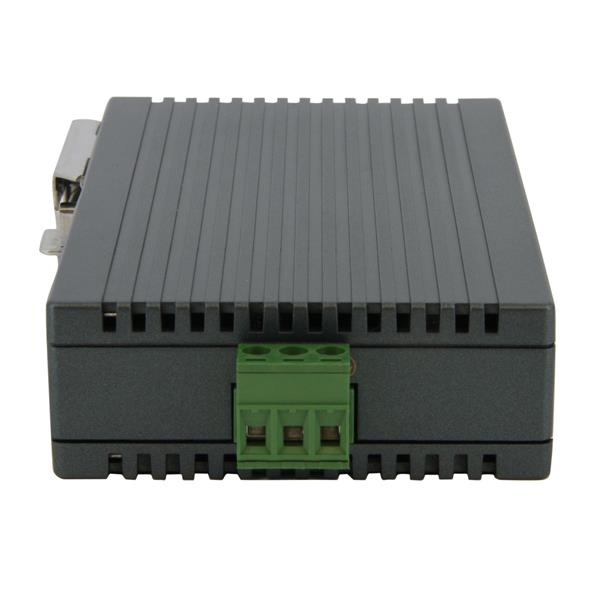

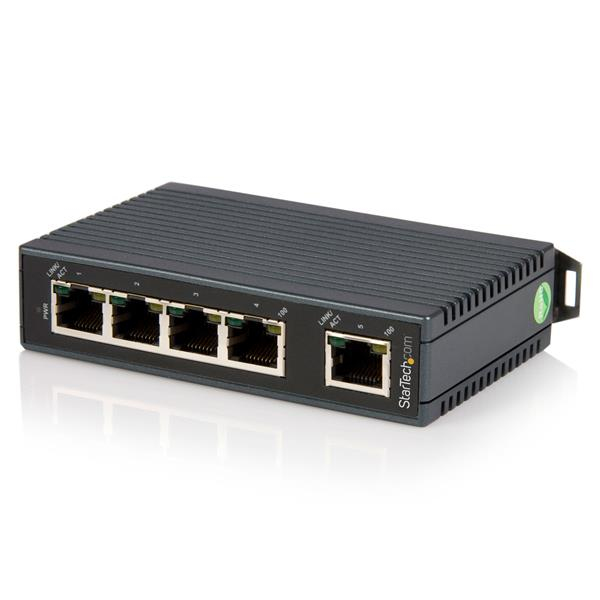

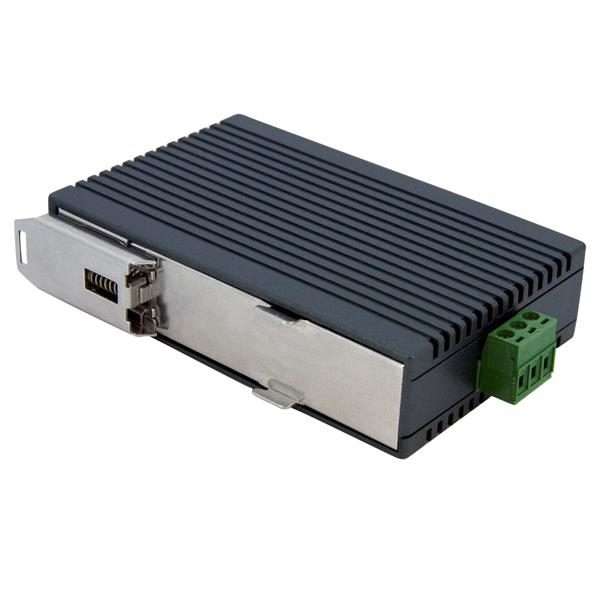

STARTECH.COM 5-Port Industrial Ethernet Switch - DIN Rail Mountable
|
90,24 EUR 92,75 EUR |
|
|
( 107,39 EUR incl. VAT ) ≈ £76.43 | ≈ $100.98 plus delivery charges: 53,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Lieske Part No.: | 543700 |
|---|---|
| Mfg Part No: | IES5102 |
| UPC/EAN: | 0065030859745 |
| Weight: | 0.325 kg |
| Type: | PERP |
Product information for Startech.com IES5102:
| Certificates | |
| Certification | CE, FCC |
| Data transmission | |
| Store-and-forward | |
| Jumbo frames support | |
| Design | |
| Product colour | Black |
| Housing material | Plastic |
| LED indicators | Activity, Link, Power |
| International Protection (IP) code | IP30 |
| Regulatory Approvals | EN61000-6-2, EN61000-6-4, EN61000-4-3, EN61000-4-4, EN61000-4-6, EN61000-4-8, IEC60068-2-6 Fc, IEC60068-2-27 Ea |
| Rack mounting | |
| Logistics data | |
| Master (outer) case width | 425 mm |
| Master (outer) case length | 388 mm |
| Master (outer) case height | 236 mm |
| Harmonized System (HS) code | 85176990 |
| Products per master (outer) case | 10 pc(s) |
| Management features | |
| Switch type | Unmanaged |
| Quality of Service (QoS) support | |
| Network | |
| Networking standards | IEEE 802.1p, IEEE 802.3, IEEE 802.3az, IEEE 802.3u |
| 10G support | |
| Full duplex | |
| Auto MDI/MDI-X | |
| Auto-negotiation | |
| Operational conditions | |
| Operating temperature (T-T) | -10 - 60 °C |
| Storage temperature (T-T) | -25 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Packaging content | |
| Manual | |
| Packaging data | |
| Package width | 177 mm |
| Package depth | 201 mm |
| Package height | 81 mm |
| Package weight | 312 g |
| Terminal block included | |
| Performance | |
| Maximum cable length | 100 m |
| Buffer size | 56 KB |
| Maximum data transfer rate | 200 Mbit/s |
| Mean time between failures (MTBF) | 1179133 h |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Power | |
| Input voltage | 12 - 48 V |
| Power consumption (max) | 2.12 W |
| Weight & dimensions | |
| Width | 25 mm |
| Depth | 70 mm |
| Height | 110 mm |
| Weight | 148 g |
