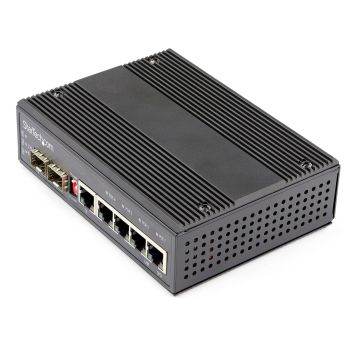

STARTECH.COM Industrial 6 Port Gigabit Ethernet Switch 4 RJ45 +2 SFP slots 30W PoE + 10/100/1000Mbit/s -40C to +75C top hat rail
|
321,04 EUR |
|
|
( 382,04 EUR incl. VAT ) ≈ £270.32 | ≈ $360.53 plus delivery charges: 53,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1633017 |
| Mfg Part No: | IES1G52UP12V |
| UPC/EAN: | 0065030889834 |
| Weight: | 1 kg |
| Type: | PERP |
Product information for Startech.com IES1G52UP12V:
| Certificates | |
| Certification | CE, RoHS, FCC |
| Data transmission | |
| Switching capacity | 12 Gbit/s |
| Jumbo frames | 9000 |
| Jumbo frames support | |
| Design | |
| Product colour | Black |
| Housing material | Aluminium, Steel |
| LED indicators | Activity, Link, PoE, Power |
| International Protection (IP) code | IP30 |
| Safety | EN60950-1 |
| Rack mounting | |
| Wall mountable | |
| DIN rail mounting | |
| Logistics data | |
| Master (outer) case width | 355 mm |
| Master (outer) case length | 345 mm |
| Master (outer) case height | 225 mm |
| Harmonized System (HS) code | 85176990 |
| Products per master (outer) case | 10 pc(s) |
| Management features | |
| Switch type | Unmanaged |
| Network | |
| Networking standards | IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-T, 1000BASE-T |
| 10G support | |
| Full duplex | |
| Flow control support | |
| Auto MDI/MDI-X | |
| Auto-negotiation | |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 75 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Other features | |
| Terminal block port | |
| Packaging content | |
| Quick start guide | |
| Packaging data | |
| Package width | 211 mm |
| Package depth | 162 mm |
| Package height | 64 mm |
| Package weight | 946.4 g |
| Terminal block included | |
| Performance | |
| Buffer size | 128 KB |
| Mean time between failures (MTBF) | 693764 h |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP module slots quantity | 2 |
| Power | |
| Surge protection voltage | 2 kV |
| Surge protection | |
| Power over Ethernet (PoE) | |
| Power over Ethernet plus (PoE+) ports quantity | 4 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 120 W |
| Power over Ethernet (PoE) | |
| Protocols | |
| Supported network protocols | CSMA/CD |
| Weight & dimensions | |
| Width | 105 mm |
| Depth | 142 mm |
| Height | 43 mm |
| Weight | 701.4 g |
Questions & answers
What is the delivery time of STARTECH.COM Industrial 6 Port Gigabit Ethernet Switch 4 RJ45 +2 SFP slots 30W PoE + 10/100/1000Mbit/s -40C to +75C top hat rail?
The article STARTECH.COM Industrial 6 Port Gigabit Ethernet Switch 4 RJ45 +2 SFP slots 30W PoE + 10/100/1000Mbit/s -40C to +75C top hat rail is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Startech.com IES1G52UP12V to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you STARTECH.COM Industrial 6 Port Gigabit Ethernet Switch 4 RJ45 +2 SFP slots 30W PoE + 10/100/1000Mbit/s -40C to +75C top hat rail always at the best possible price. We can give you a discount of 2% on STARTECH.COM Industrial 6 Port Gigabit Ethernet Switch 4 RJ45 +2 SFP slots 30W PoE + 10/100/1000Mbit/s -40C to +75C top hat rail if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
