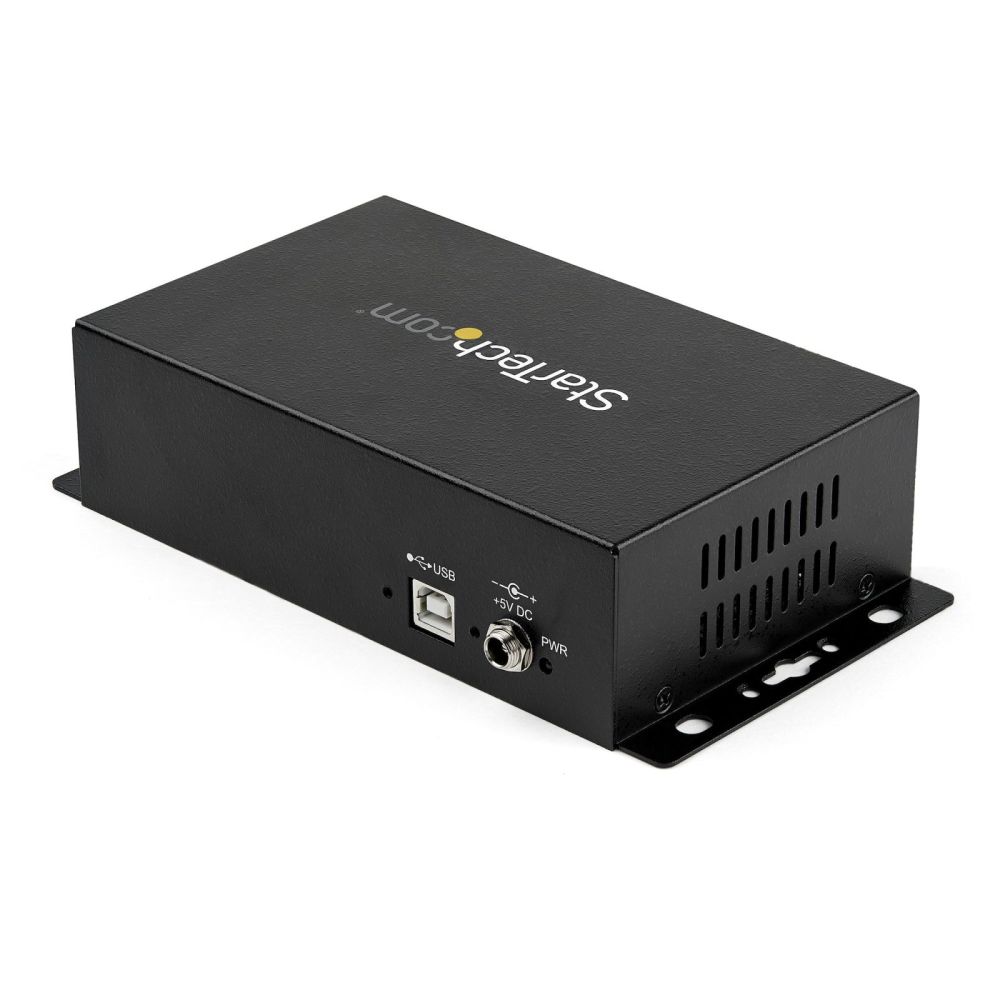

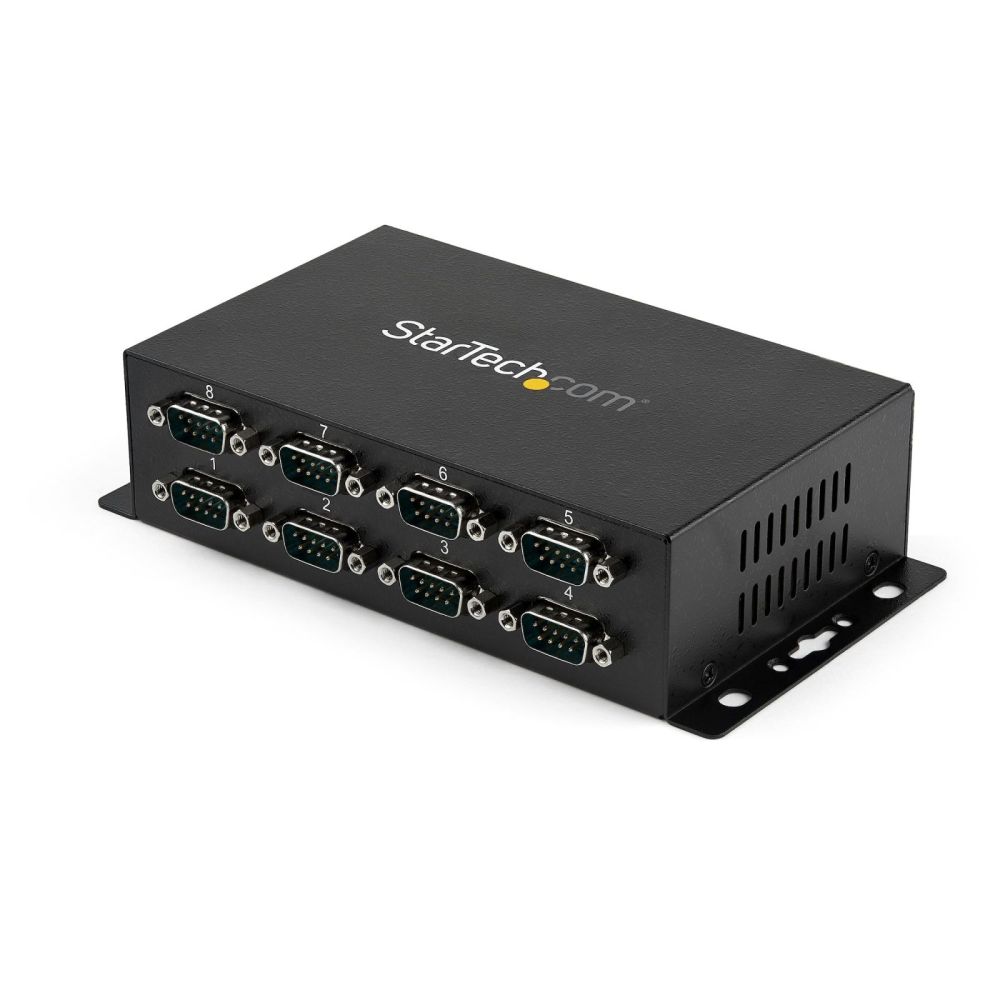

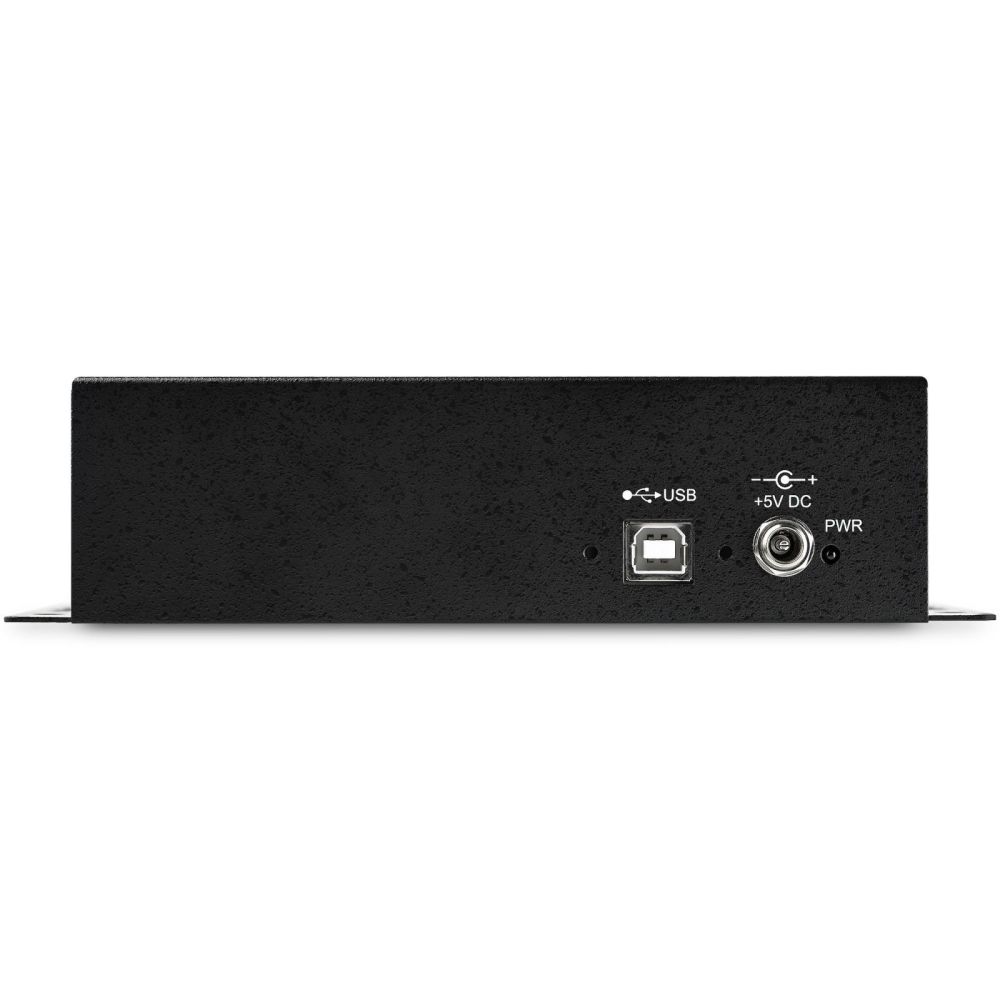

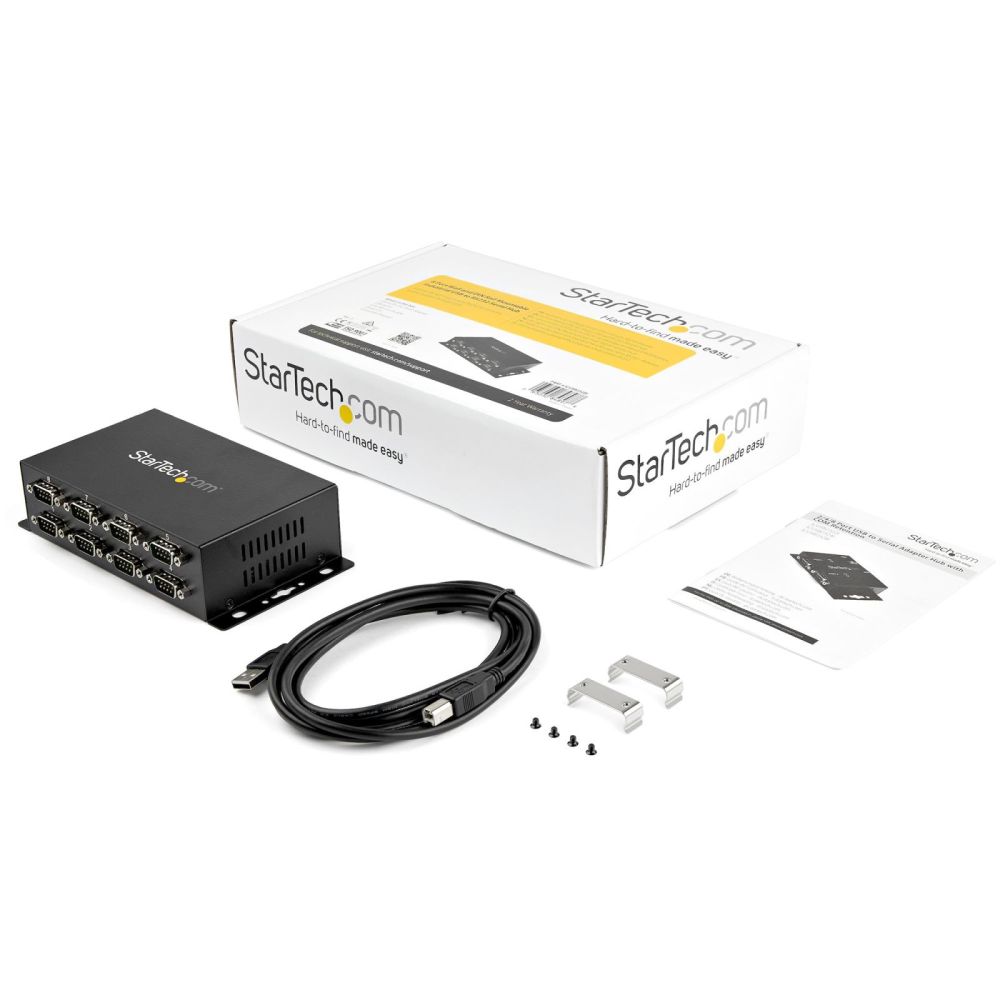

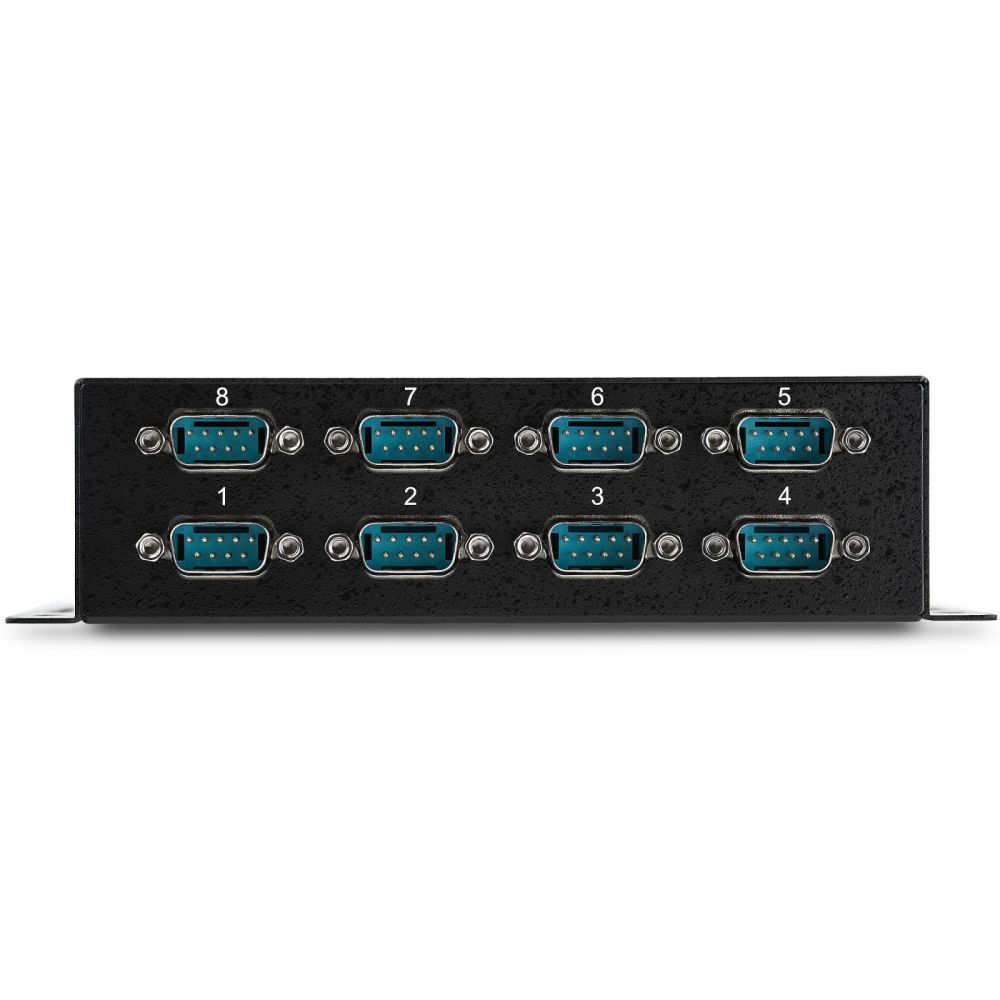

Startech.com ICUSB2328I 8-Port USB to Serial RS-232 Adapter Hub, DIN rail and wall-mountable, USB to RS232 DB9 converter
|
197,00 EUR |
|
|
( 234,43 EUR incl. VAT ) ≈ £164.89 | ≈ $220.44 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >25 pieces | |
| End-Of-Life: | 07. Sep 2026 |
|---|---|
| Datasheet: | file_download Download |
| Lieske Part No.: | 687209 |
| Mfg Part No: | ICUSB2328I |
| UPC/EAN: | 0065030848978 |
| Weight: | 0.875 kg |
| Type: | EXT |
Product information for Startech.com ICUSB2328I:
Add 8 DIN Rail-mountable RS232 Serial ports to any system through USB. The ICUSB2328I Industrial 8-Port USB to Serial Hub with DIN Rail Clips converts a single USB port into eight RS232 serial ports, enabling you to connect to, monitor and control your serial devices. Featuring rugged metal construction, with sturdy wall-mounting brackets and top-hat DIN Rail clips (included), this 8 port USB to RS232 Serial Hub provides versatile mounting options and a robust solution for both harsh industrial environments and simple desktop installations. This USB powered adapter also retains assigned serial COM port values once connected, allowing the same values to be automatically reassigned to the USB serial hub ports.
| Features | |
| Product colour | Black |
| Housing material | Steel |
| LED indicators | Activity |
| Logistics data | |
| Master (outer) case width | 425 mm |
| Master (outer) case length | 421 mm |
| Master (outer) case height | 290 mm |
| Products per master (outer) case | 16 pc(s) |
| Harmonized System (HS) code | 84719000 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | -20 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Other features | |
| Chipset | FTDI - FT232RL |
| Packaging content | |
| Cables included | USB |
| Manual | |
| DIN rail kit included | |
| Drivers included | |
| Packaging data | |
| Package width | 243 mm |
| Package depth | 170 mm |
| Package height | 62 mm |
| Package weight | 862 g |
| Performance | |
| Data bits | 7, 8 |
| Stop bits | 1, 2 |
| Parity bit | Even, Mark, No, Odd, Space |
| FIFO (First In, First Out) | 4048 B |
| Baud rate | 921.6 Kbit/s |
| Mean time between failures (MTBF) | 146300 h |
| Ports & interfaces | |
| Host interface | USB 2.0 Type-B |
| Hub interfaces | Serial |
| Ports quantity | 8 |
| RS-232 ports | 8 |
| Card reader integrated | |
| DC-in jack | |
| Power | |
| Input voltage | 5 V |
| Input current | 0.25 A |
| Power plug type | Type M |
| USB powered | |
| Sustainability | |
| Sustainability compliance | |
| System requirements | |
| Windows operating systems supported | Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 2000, Windows 2000 Professional, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Win |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura |
| Server operating systems supported | Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016 |
| Other operating systems supported | Windows XP Embedded |
| Linux operating systems supported | |
| Technical details | |
| Compliance certificates | CE, RoHS |
| Weight & dimensions | |
| Width | 100 mm |
| Depth | 180 mm |
| Height | 43.2 mm |
| Weight | 544 g |
Please note...
We have listed this article as 'end-of-life', which means that it will only be sold until it is completely sold out ! Please mind that we cannot guarantee you, you will receive the article, although it may be betokened as available. You can find the date from when the article was marked end-of-life to the top.
