StarTech.com 2 Drive 2.5in Trayless Hot Swap SATA Mobile Rack Backplane - storage bay adapter content_copy

Easy, trayless removal and insertion of dual 2.5in SATA hard drives from single 3.5in bay. This 3.5in SATA hard drive hot-swap bay allows you to install two 2.5in SATA drives (SATA, SATA II, SATA III-6Gbps) in an available/unused 3.5in floppy drive bay.Featuring a convenient no mounting required /easy eject feature (like a tape cartridge or floppy disk), the hard drive hot swap bay doesn't require that the drives be installed in a tray - making it the ideal solution for quick and easy drive removals and insertions as part of a system building process, or integration into rackmount systems or industrial environments.Also a perfect addition for operating system image deployment and any task that requires being able to quickly access large volumes of data on the fly, the hot swap bay provides everything you need to expedite important projects while maintaining a reliable storage solution.With support for SATA HDD speeds up to 6.0 Gbps, the mobile rack/backplane is fully compatible with RAID installations to ensure maximum performance and versatility for enhanced storage applications.

Features
Size (imperial)	8.89 cm (3.5")
Type	Bezel panel
Product colour	Black
Number of HDDs supported	2
HDD size	2.5"
HDD interface	Serial ATA, Serial ATA II, Serial ATA III
Material	Aluminium
Supported storage drive heights	9.5 mm
LED indicators	Activity, Power
Certification	CE, FCC, REACH
Logistics data
Products per master (outer) case	32 pc(s)
Master (outer) case width	366 mm
Master (outer) case length	432 mm
Master (outer) case height	280 mm
Harmonized System (HS) code	84733080

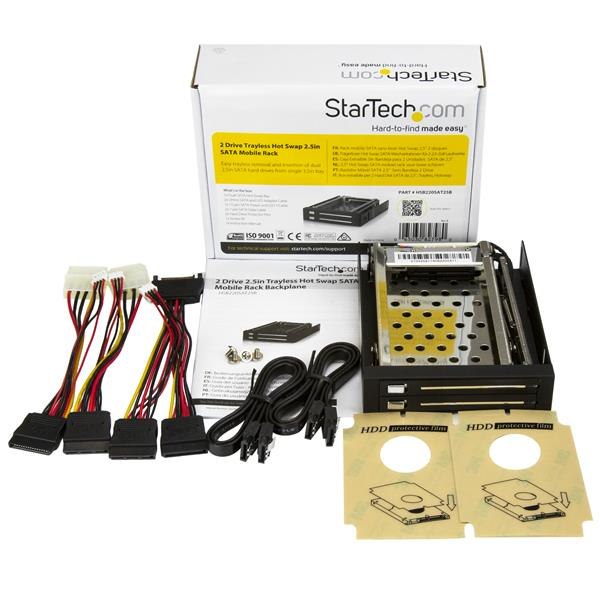

Packaging content
Cables included	SATA
Screws included
Manual
Packaging data
Package width	128 mm
Package depth	170 mm
Package height	52 mm
Package weight	481 g
Technical details
Compliance certificates	RoHS
Weight & dimensions
Width	102 mm
Depth	134 mm
Height	24 mm
Weight	286 g

---
