Startech.com CDP2DVI USB-C to DVI adapter

Your rating:
Average rating
product review for Startech.com CDP2DVI USB-C to DVI adapter
( 4.5 / 5 ) 2 ratings
Startech.com CDP2DVI
This image may differ from the desired article.
Startech.com CDP2DVIStartech.com CDP2DVIStartech.com CDP2DVIStartech.com CDP2DVIStartech.com CDP2DVIStartech.com CDP2DVI
13,95 EUR
( 16,60 EUR incl. VAT )
≈ £11.68  |  ≈ $15.33
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline
In Stock: >5 pieces
1x Startech.com CDP2DVI USB-C to DVI adapter
Datasheet:file_download Download
Lieske Part No.:149811
Mfg Part No: CDP2DVI
UPC/EAN: 0065030863322
Weight:0.04 kg
Type:ACCS

Product information for Startech.com CDP2DVI:

The Startech.com USB-C to DVI adapter (manufacturer part number CDP2DVI) is a compact video adapter that enables DVI video output from USB Type-C devices. It is used to connect mobile devices such as MacBooks, Chromebooks, Dell XPS laptops, or the 2018 iPad Pro to DVI-compatible monitors, projectors, or televisions. The adapter uses the integrated video functionality of the USB Type-C connector, specifically the DisplayPort Alt Mode, to transmit a digital video signal. It is designed for devices that support DisplayPort over USB-C and is compatible with Thunderbolt 3 connectors.

Applications

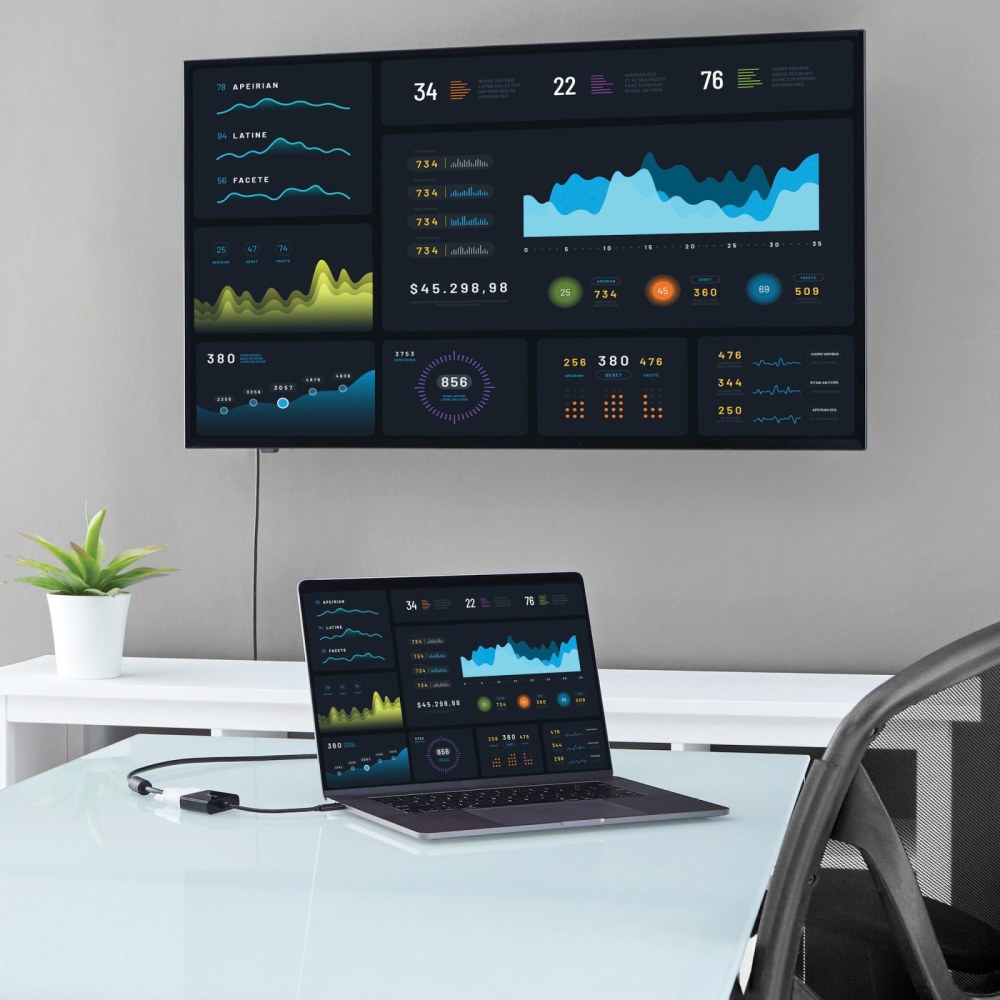

This adapter is particularly suitable for mobile work environments where a BYOD (Bring Your Own Device) concept is applied. For example, it can be used in the office to connect a personal USB-C device to a provided DVI monitor. It is also suitable for presentations in conference rooms, as it quickly establishes a connection without additional devices. Traveling users benefit from its compact design, which allows the adapter to be conveniently carried in a laptop bag or backpack.

Features and Specifications in Detail

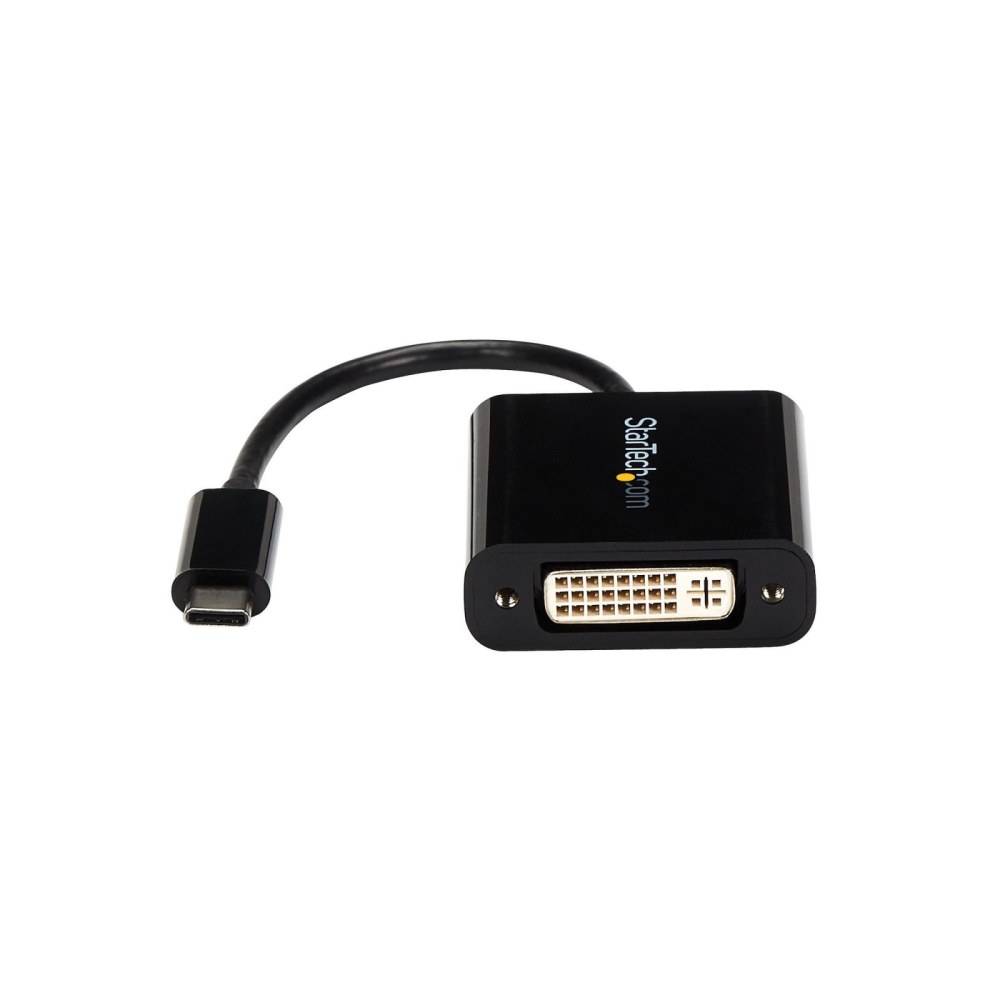

The adapter features a USB Type-C plug (24-pin) as input and a DVI-I female connector (29-pin) as output. The DVI-I interface supports digital signals, with the adapter supporting only Single-Link DVI. The maximum resolution is 1920 x 1200 pixels, with common resolutions such as 1024 x 768 (XGA), 1280 x 720 (HD 720p), 1920 x 1080 (HD 1080p), and 1920 x 1200 (WUXGA) also supported. Image quality is ensured by utilizing the integrated video functions of the USB Type-C connector. The adapter is designed for driving a single display.

Technology Explained Simply
The adapter operates using DisplayPort Alt Mode, a protocol that enables video signals to be transmitted over USB Type-C connections. This requires the connected device to support this mode. The integrated USB cable connection (length 14 mm) ensures a direct connection between the device and the adapter. The chipset consists of a Parade-PS171 and an NXP-PTN5100, responsible for signal conversion. The USB standard corresponds to version 3.2 Gen 2 (also known as 3.1 Gen 2), enabling high data transfer rates. No audio is transmitted over the DVI output.

Compatibility and Accessories
The adapter is compatible with USB Type-C devices that support DisplayPort over USB-C (DP Alt Mode), as well as with Thunderbolt 3 connectors. It is not compatible with the Apple Cinema Display. When used with older Dual-Link DVI monitors (prior to 2014), limited resolution support may occur. Compatibility with operating systems such as Windows and Mac is confirmed by the manufacturer.

Installation and Mounting

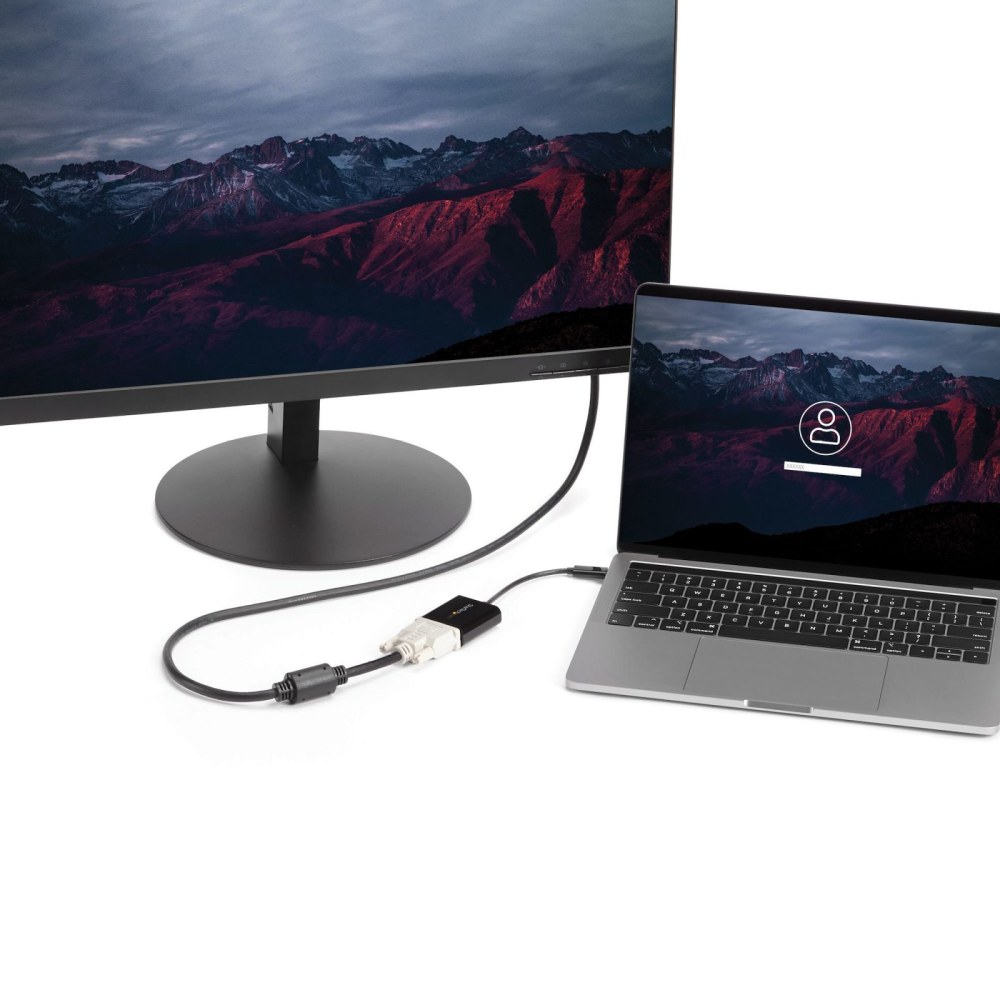

Installation is done by simply plugging the USB Type-C plug into the device and the DVI-I plug into the monitor or projector. The USB Type-C connector is reversible, so insertion direction does not matter. No additional drivers or software installation is required, as signal transmission occurs via DisplayPort Alt Mode.

Operational Advantages
The adapter is characterized by its low height (15 mm), narrow width (43 mm), and low weight (29 g), making it highly portable. The integrated cable connection ensures a stable connection without additional cables. Support for resolutions up to 1920 x 1200 pixels ensures clear and detailed image reproduction. The 3-year warranty and lifetime free technical support from StarTech.com provide additional operational security.

Product Color and Design

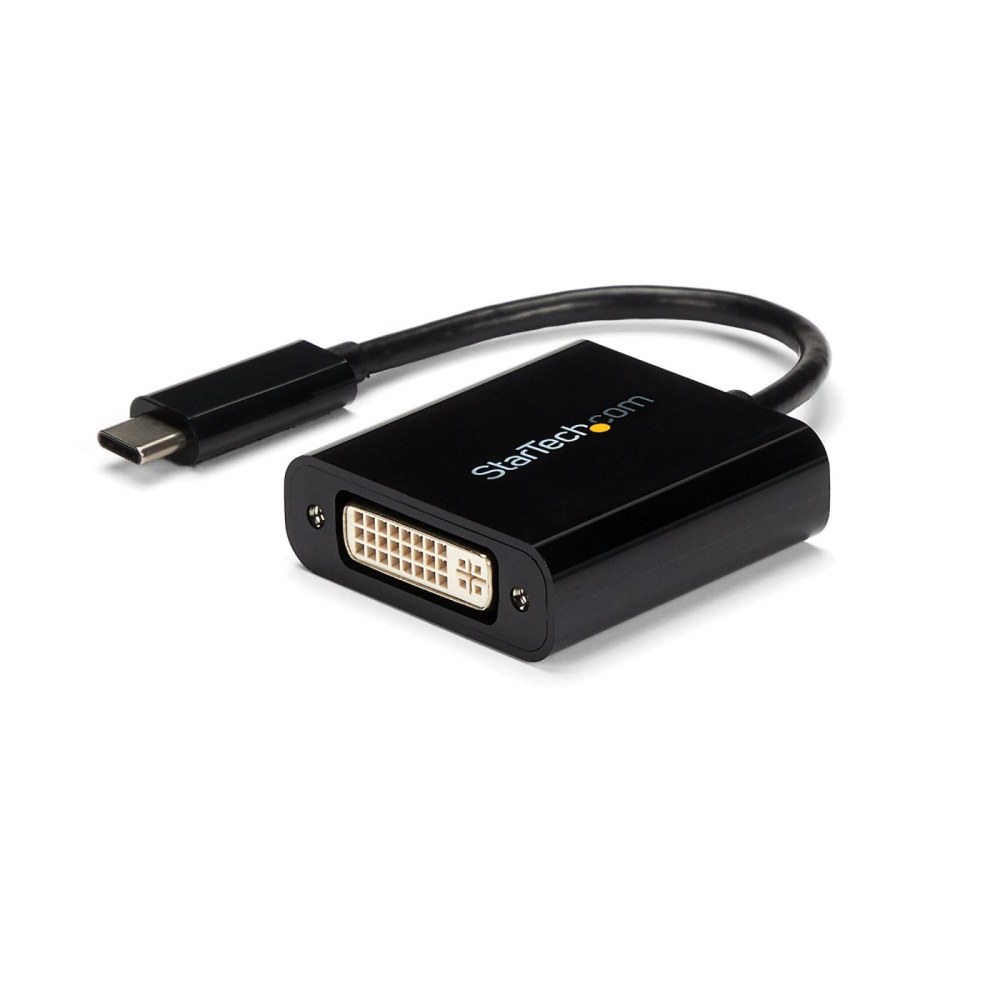

The adapter has a black housing that visually harmonizes well with devices such as the ChromeBook Pixel or other modern laptops. The shape is slim and flat, minimizing space requirements.

Operating Conditions
The adapter can be operated at temperatures from 0 to 70 °C and relative humidity from 5 to 95 % (non-condensing). Storage is possible at temperatures from -10 to 80 °C.

Certifications
The adapter meets CE, FCC, REACH, and RoHS certifications, confirming compliance with European and American safety and environmental standards.

Design
Product colourBlack
Integrated USB cableYes
Logistics data
Products per master (outer) case200 pc(s)
Master (outer) case width326 mm
Master (outer) case length506 mm
Master (outer) case height210 mm
Harmonized System (HS) code84733020
Operational conditions
Operating temperature (T-T)0 - 70 °C
Storage temperature (T-T)-10 - 80 °C
Operating relative humidity (H-H)5 - 95%
Packaging data
Package width122 mm
Package depth103 mm
Package height24 mm
Package weight34 g
Performance
USB connector typeUSB Type-C
USB connector genderMale
USB connector form factorStraight
USB version3.2 Gen 2 (3.1 Gen 2)
Number of displays supported1
DVI connector typeDVI-I
Maximum resolution1920 x 1200 pixels
Supported graphics resolutions1024 x 768 (XGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA)
Supported video modes720p, 1080p
ChipsetParade - PS171, NXP - PTN5100
CertificationCE, FCC, REACH
DVI outputYes
HDMI outputNo
DisplayPort outputNo
Technical details
Compliance certificatesRoHS
Weight & dimensions
Width43 mm
Depth187 mm
Height15 mm
Weight29 g
USB cable length0.014 m


Product data sheet
Datasheet for Startech.com CDP2DVI, EAN: 0065030863322

Questions & answers

What is the delivery time of Startech.com CDP2DVI USB-C to DVI adapter?

The article Startech.com CDP2DVI USB-C to DVI adapter is currently in stock

According to our experience the article is ready for dispatch within 9 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Startech.com CDP2DVI to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Startech.com CDP2DVI USB-C to DVI adapter always at the best possible price. We can give you a discount of 2% on Startech.com CDP2DVI USB-C to DVI adapter if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
