Softing IT Networks 230405 Softing WireXpert MP C6A + FM LAN Zertifizierer Paket Kupfer Module Klasse D, E, EA, F 600 MHz mit Glasfaser Multimode Modulen content_copy

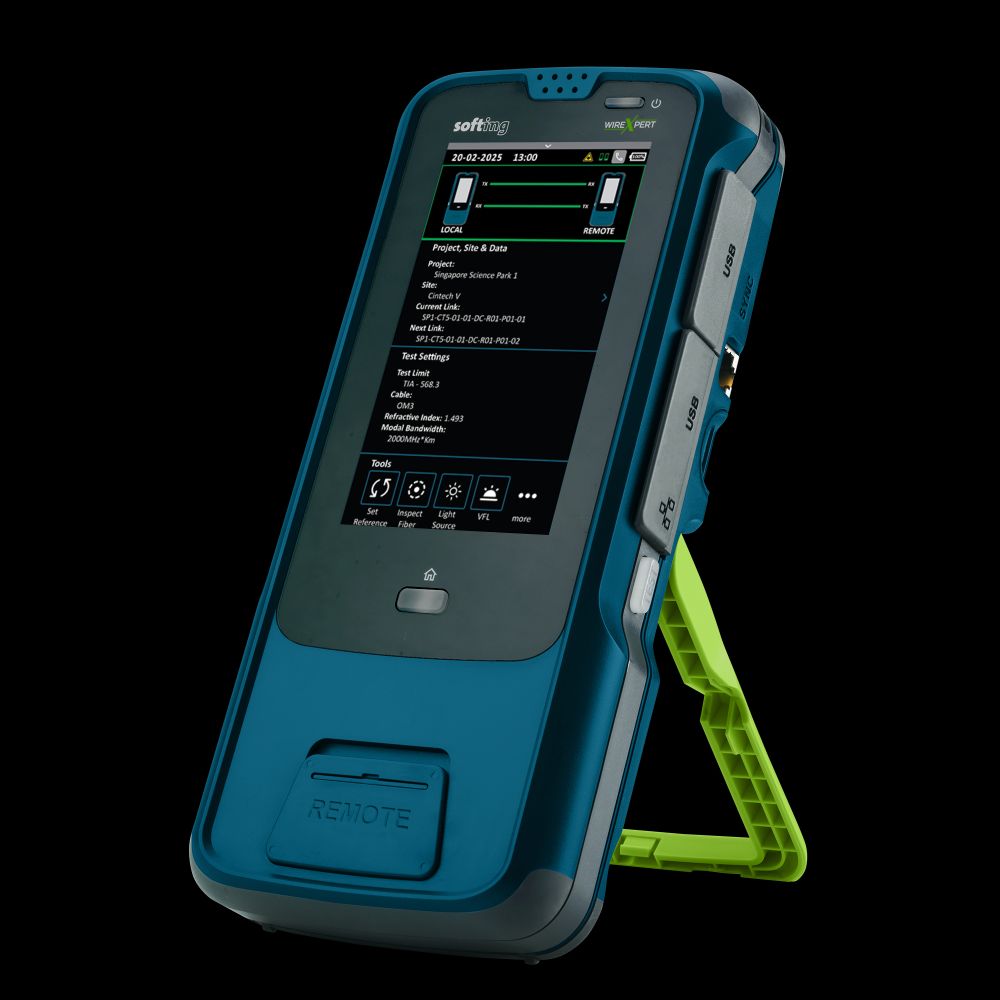

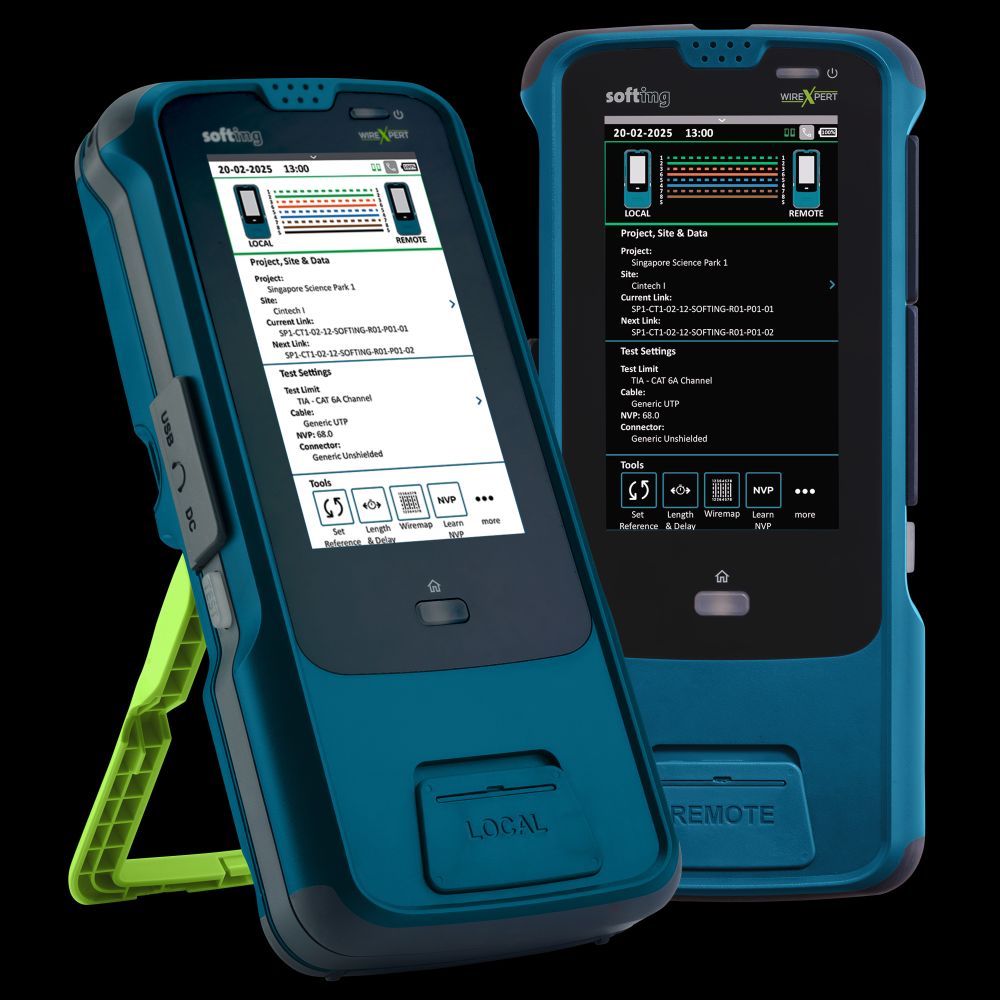

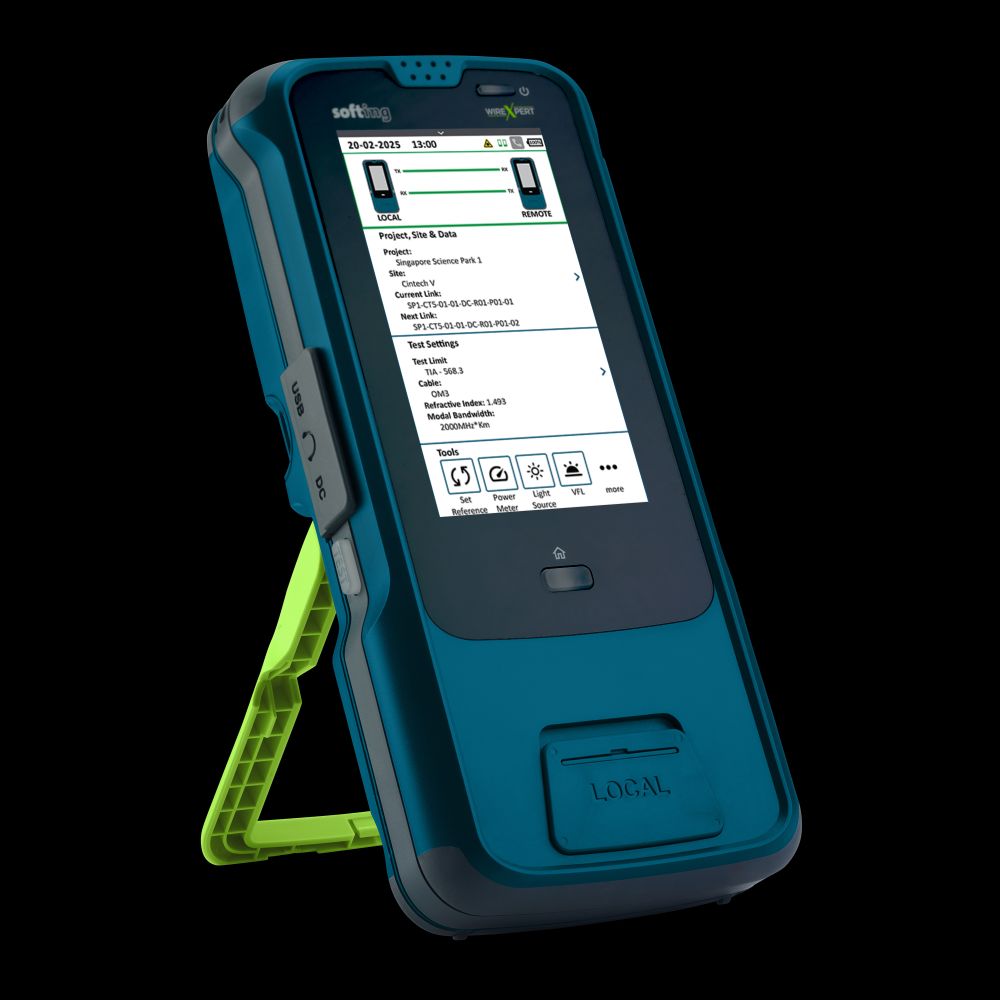

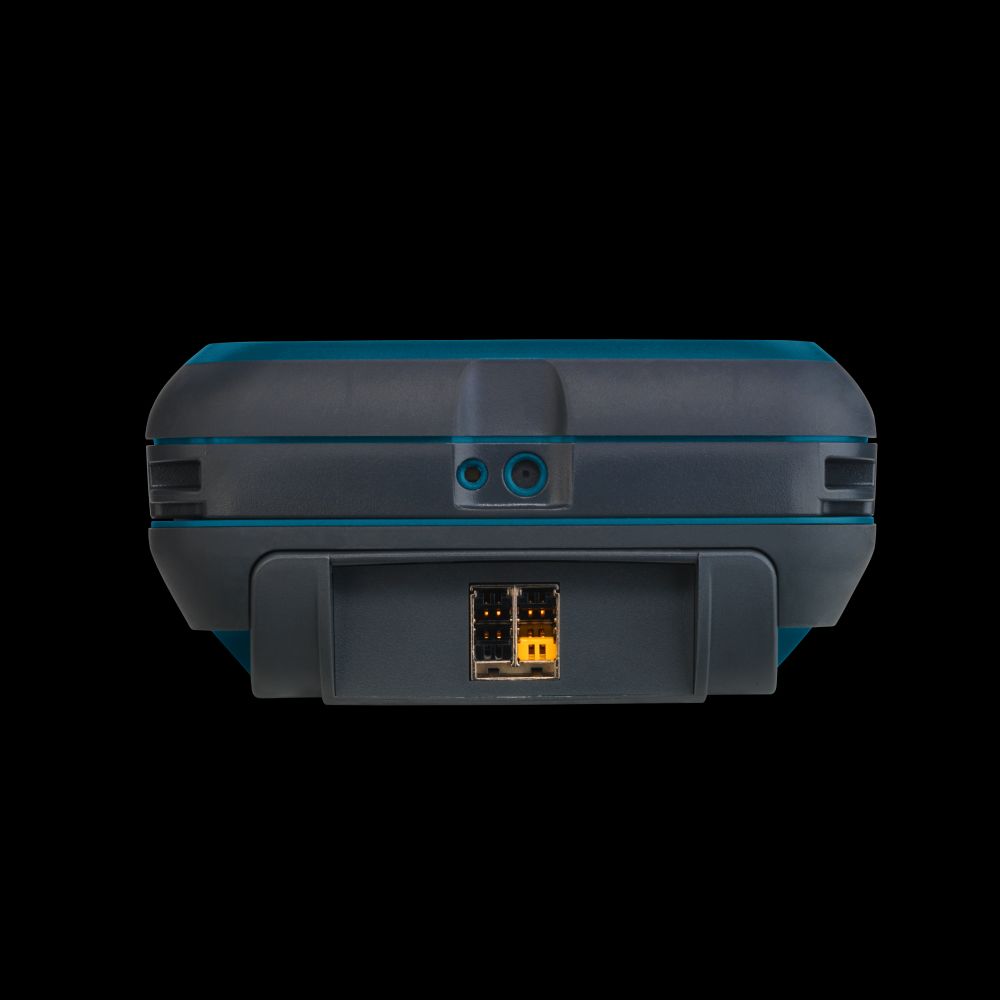

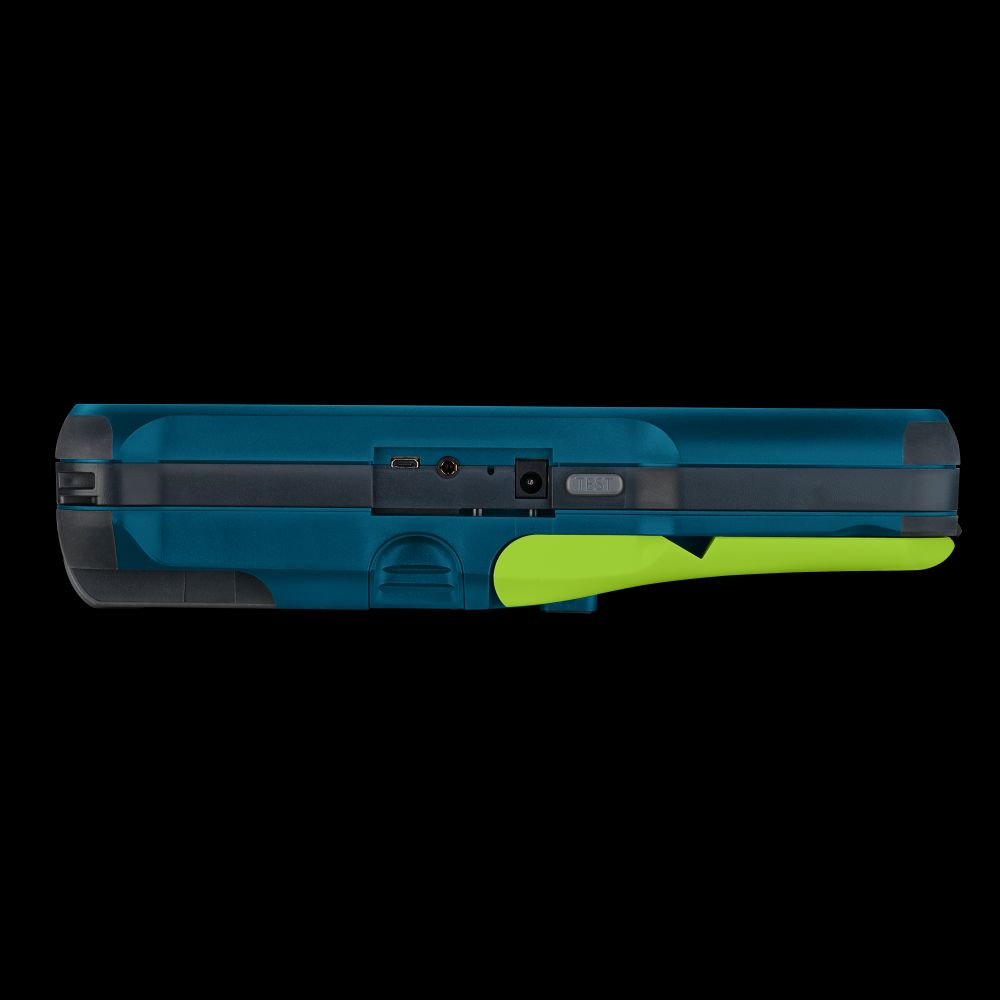

The Softing WireXpert MP C6A + FM is a professional LAN certification package for testing copper and multimode fiber optic cables. It is designed for quality inspection and certification of network cables according to international standards, and is intended for use in the installation, maintenance, and servicing of data communication systems. The set includes two WireXpert MP mainframes equipped with a Dual Control System PLUS (DCS+TM), enabling efficient control and synchronization of the measuring devices. The devices are designed for testing copper cables of classes D, E, EA, F up to a frequency of 600 MHz, and also support multimode fiber optic cables with integrated light sources and power meters.

Applications
This product is intended for use in network infrastructure planning, installation of structured cabling systems, and testing of cables in existing installations. It is particularly suitable for technicians who need to certify cable systems according to ISO/IEC 11801, TIA/EIA 568, and EN 50173 standards. The combination of copper and fiber optic measurement modules enables comprehensive testing of hybrid networks that include both twisted-pair and fiber optic cables.

Functions and Equipment in Detail

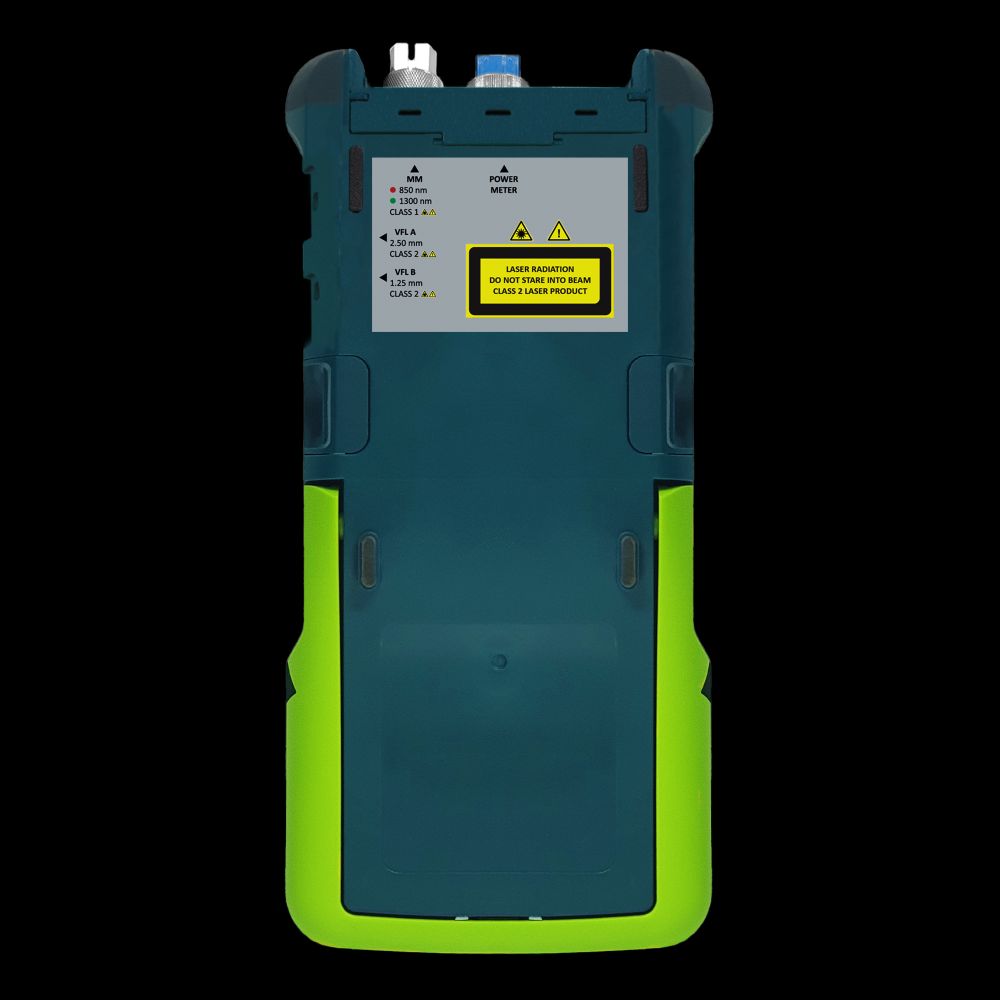

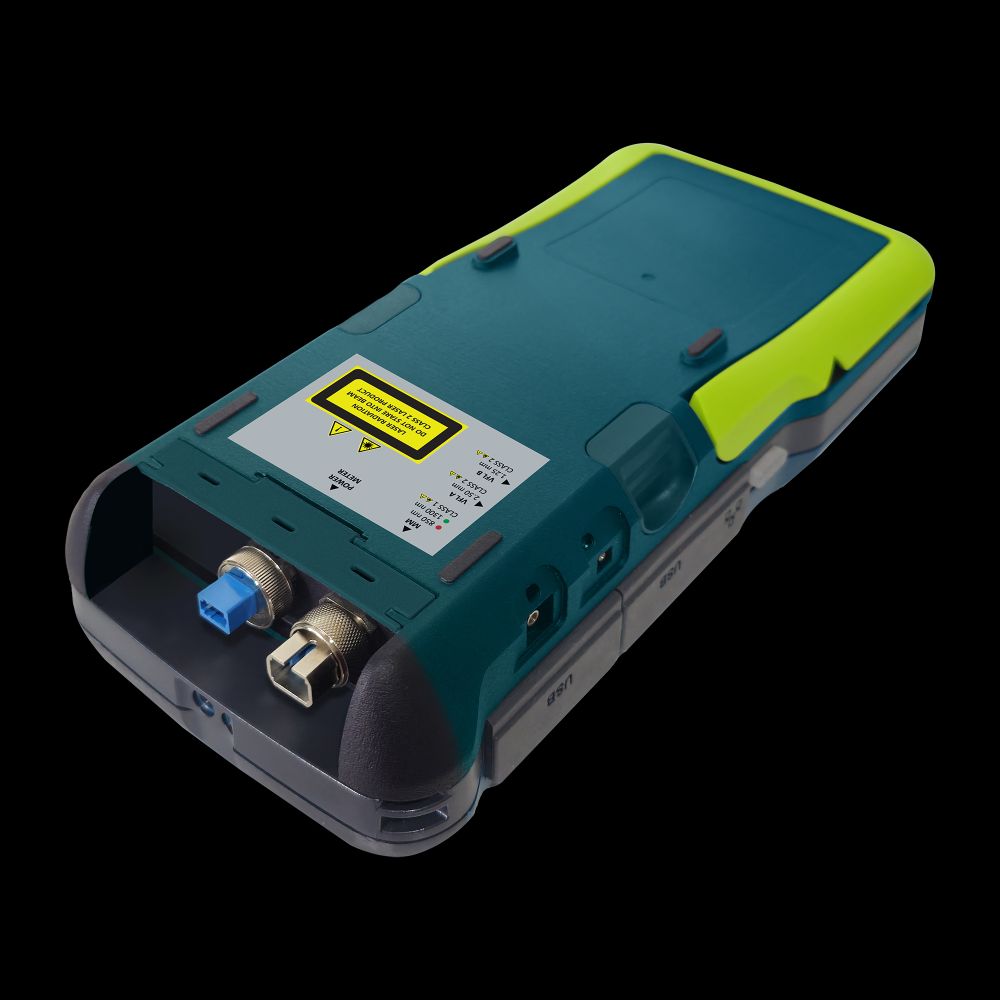

The package includes two copper measurement modules C6A, capable of measuring up to 600 MHz, making them suitable for certifying Cat 6A and higher cable categories. The fiber optic measurement modules FM are equipped with light sources for 850 nm and 1300 nm, enabling testing of multimode fibers. Additionally, a broadband power meter in the range of 700 nm to 1700 nm is integrated for optical power measurement. The modules feature red light sources with diameters of 1.25 mm and 2.5 mm, which can be used for visual cable location. The delivery includes LC and SC adapters for the light sources and power meter, enabling adaptation to various connector types.

Technology Explained Simply
The measuring devices utilize the Dual Control System PLUS (DCS+TM), a control system that enables communication between the two mainframes and synchronizes measurement processes. This reduces error susceptibility and accelerates the testing process. The integrated measurement modules enable testing of cables for parameters such as resistance, impedance, crosstalk, and attenuation. The fiber optic measurement modules measure optical power and fiber attenuation, with the light sources and power meter generating and measuring the required signals. Results are documented via the integrated evaluation software eXport (Download), which enables structured output of test data.

Compatibility and Accessories

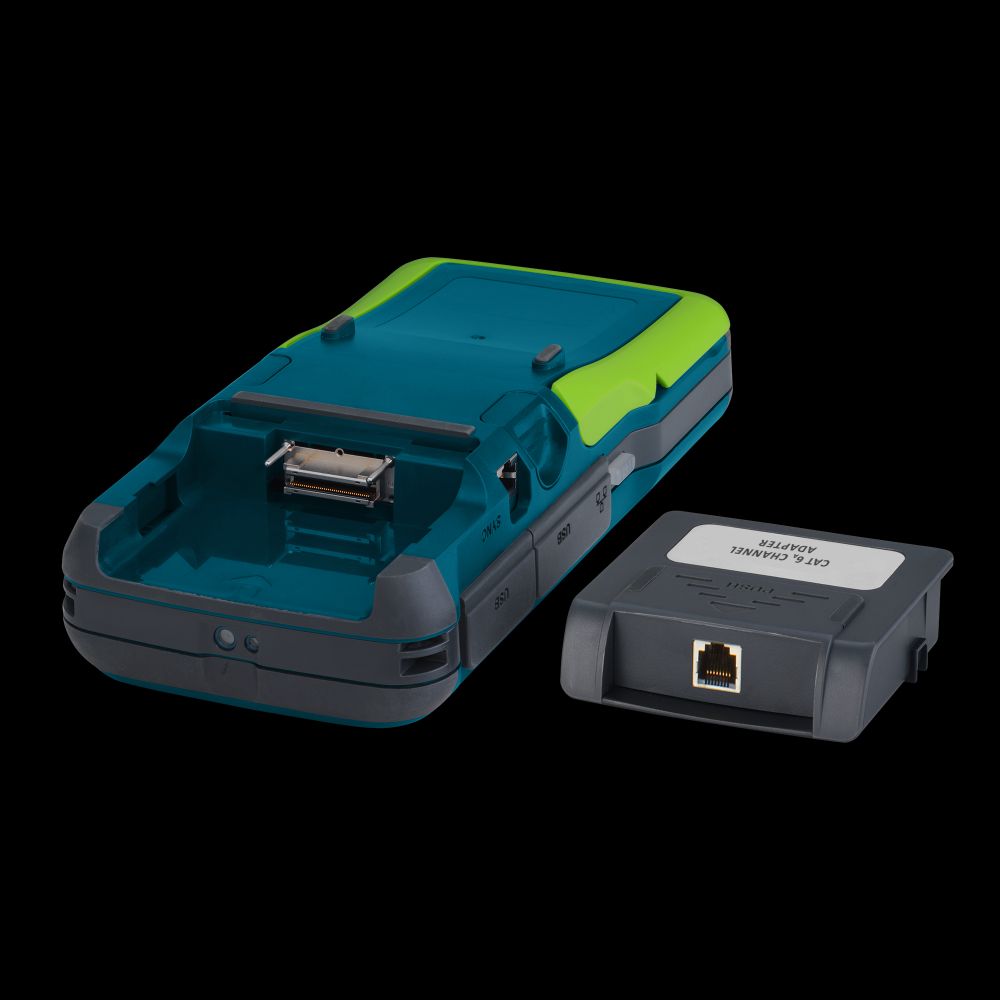

The WireXpert MP C6A + FM is compatible with various accessories that may be required for specific applications. These include interchangeable adapters with SC and LC interfaces for TX and RX ports, singlemode reference couplers LC/APC, test cables in SC-LC/APC and LC/APC-LC/APC configurations, and hard-shell cases for transport. The devices are also equipped with speaker sets enabling communication between testing partners. The delivery includes two CAT6A Channel adapters and two CAT6A Permanent-Link adapters, used for testing cable segments during installation. The Longlife Permanent Link test cables are designed for long-term use during testing.

Mounting and Installation

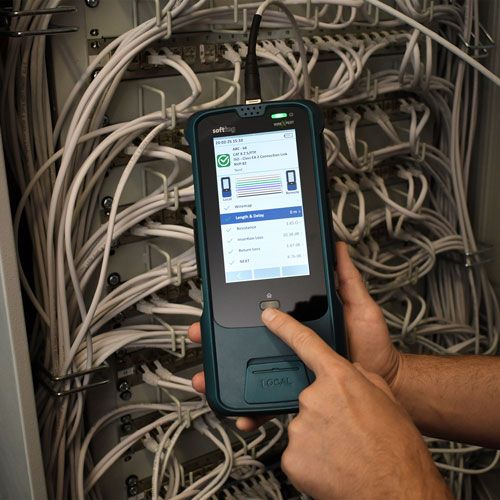

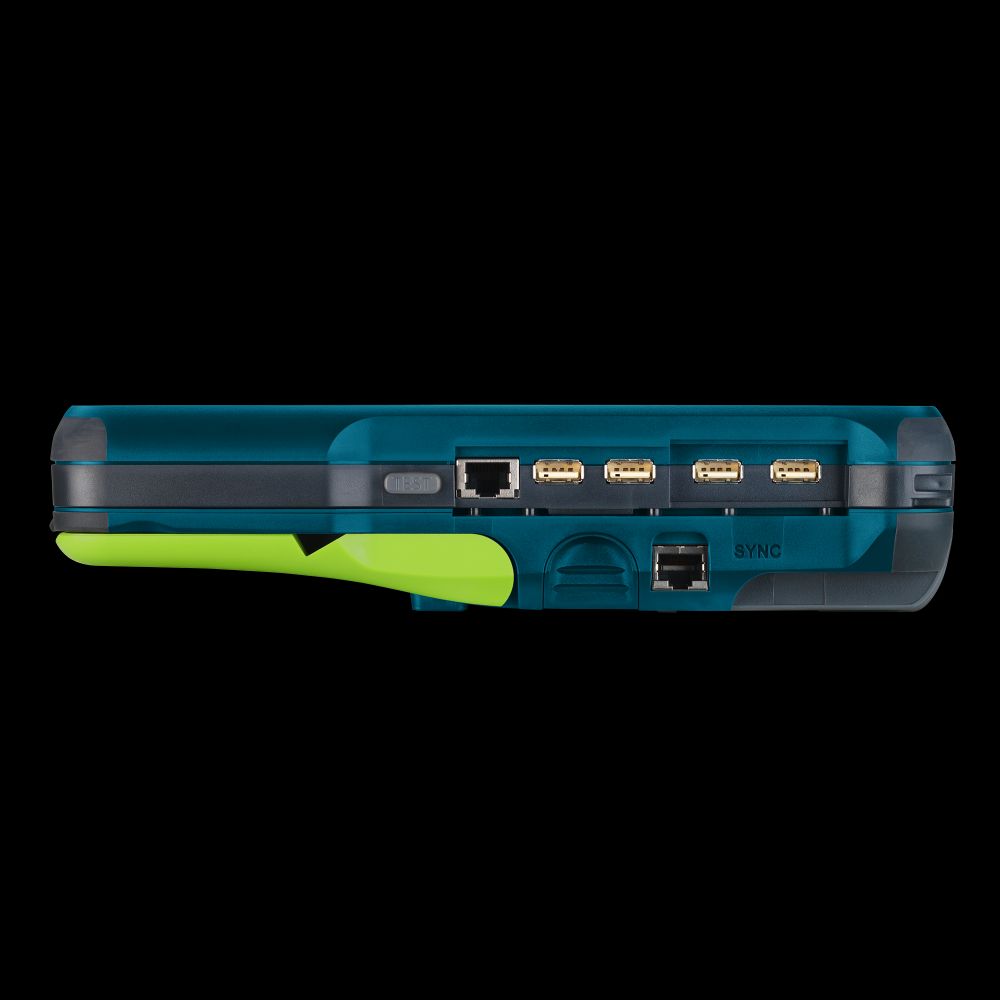

The devices are designed as portable measuring instruments and do not require fixed mounting. Installation is performed by connecting the measurement modules to the cable segments to be tested. The mainframes are connected to the modules via integrated connectors, with adapters providing the physical connection to cable connectors. Testing is carried out by selecting the appropriate test profiles in the device, with results displayed directly on the screen and documented via the software. The devices are supplied with two Li-ion batteries and two power supplies, enabling flexible use in both stationary and mobile applications.

Operational Advantages
The combination of copper and fiber optic measurement modules in one set enables comprehensive testing of hybrid networks without switching between different devices. The integrated evaluation software eXport (Download) enables structured documentation of test results, suitable for certification reports. The use of two mainframes with DCS+TM reduces testing time and increases measurement accuracy. The delivery also includes a calibration certificate confirming the accuracy of the measuring devices, as well as a quick start guide to facilitate setup. The carrying case provides secure transport for the devices and accessories.

General
Measurement frequency	600 MHz
Red light diameter	1,25 mm
Number of mainframes	2
Number of fibre optic measurement modules	2
Number of power supplies	2
Number of channel adapters	2
Number of Permanent Link adapters	2
Number of speaker sets	2

---
