Softing IT Networks 230403 Softing WireXpert MP C6A + FS LAN Zertifizierer Paket Kupfer Module Klasse D, E, EA, F 600 MHz mit Glasfaser Singlemode Modul content_copy

The Softing WireXpert MP C6A + FS LAN Certification Package is a professional measurement system for certifying copper and singlemode fiber networks. It is used for testing network cables according to international standards and enables validation of cabling systems in categories D, E, EA, F, and up to 600 MHz bandwidth. The set includes two WireXpert MP mainframes equipped with the Dual Control System PLUS (DCS+TM) to ensure precise and reliable measurement in both directions. The mainframes are each combined with a copper measurement module C6A up to 600 MHz and a fiber optic measurement module FS, which features light sources for 1310 nm and 1550 nm, as well as a broadband power meter covering the range from 700 nm to 1700 nm. Additionally, integrated 1.25 mm and 2.5 mm red light sources enable visual fault location. The measurement modules are equipped with LC and SC adapters for light sources and power meters to ensure flexible adaptation to various connectors.

Applications
This certification package is designed for use in professional network installations, particularly in environments with high demands on cabling performance and reliability. These include office buildings, data centers, industrial facilities, and buildings with structured cabling systems. The combination of copper and fiber optic measurement modules enables comprehensive testing of both Ethernet cabling and fiber optic infrastructures, making the system suitable for complex networks. Certification is performed according to ISO/IEC 11801, TIA/EIA-568, and other relevant standards, ensuring results are acceptable to clients and certification bodies.

Functions and Equipment in Detail

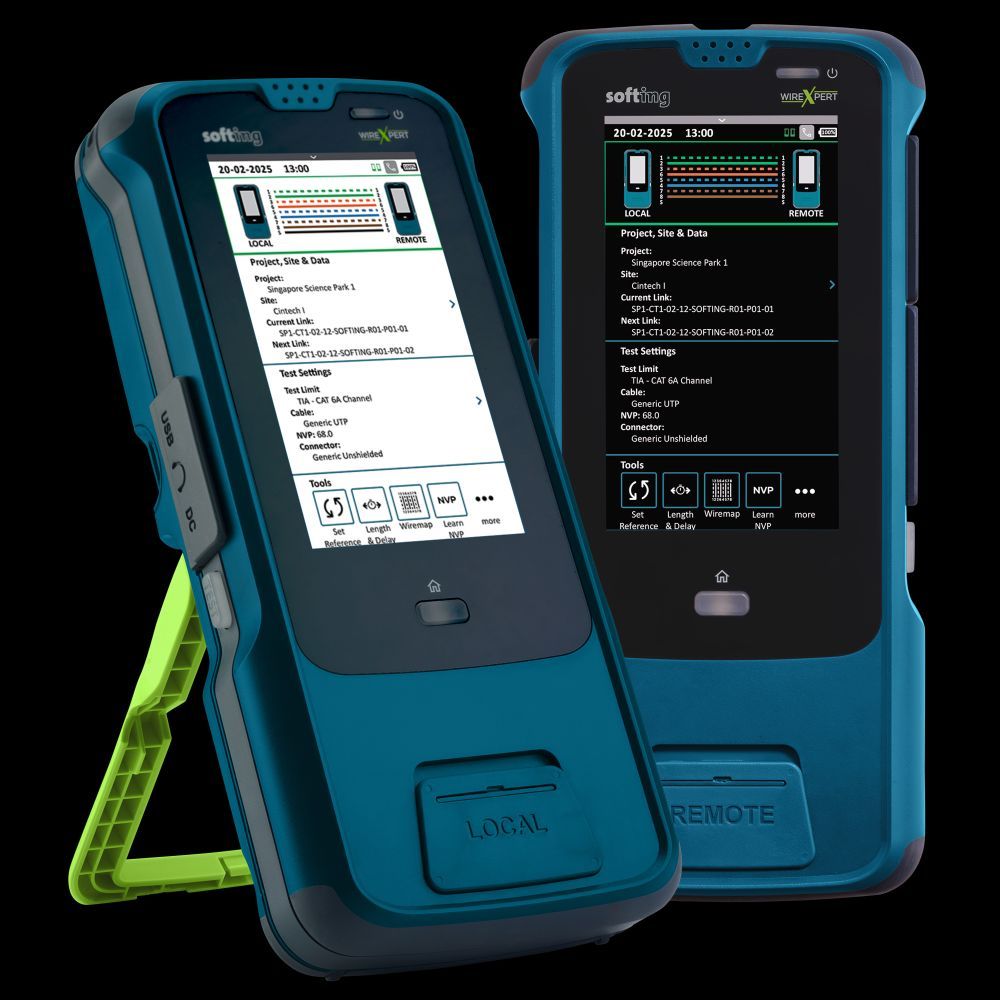

The set includes two WireXpert MP mainframes, each equipped with a copper measurement module C6A up to 600 MHz and a fiber optic measurement module FS. The fiber optic measurement modules feature light sources for 1310 nm and 1550 nm, typical for singlemode cabling. The integrated broadband power meter covers the wavelength range from 700 nm to 1700 nm, enabling precise optical power measurement. The red light sources with 1.25 mm and 2.5 mm diameters are used for visual cable and connection tracing. The mainframes are equipped with LC and SC adapters for light sources and power meters to ensure flexible adaptation to various connectors. Additionally, the delivery includes two Li-ion batteries, two power supplies, a carrying bag, a calibration certificate, the evaluation software eXport (for download), two CAT8.1 Channel adapters, two CAT8.1 Permanent-Link adapters, Longlife Permanent Link test cables, a DCRU calibration artifact, and two speaker sets. The quick start guide supports the initial setup.

Technology Explained Simply
The WireXpert MP mainframes utilize the Dual Control System PLUS (DCS+TM), enabling bidirectional measurement to precisely locate faults in cabling. The copper measurement modules C6A support frequencies up to 600 MHz, which is required for modern networks with high data rates. The fiber optic measurement modules FS are designed for singlemode cabling and use light sources at 1310 nm and 1550 nm, commonly used in telecommunications and high-speed networking standards. The broadband power meter measures optical power over a wide wavelength range, enabling comprehensive fiber performance analysis. The red light sources assist in visually identifying cables, especially in complex installations. The LC and SC adapters ensure compatibility with various fiber optic connectors.

Compatibility and Accessories
The WireXpert MP C6A + FS set is expandable with various accessories suitable for specific requirements. These include interchangeable adapters with SC interface for the RX port and LC/PC interface for the TX port, used for fiber optic modules. A hard-shell case provides protection and transport convenience. Singlemode test cables in SC-LC/APC configuration (2 m duplex, reference quality), individual singlemode test cables (SC-LC/APC), and reference couplers (LC/APC-LC/APC) are available to ensure measurement accuracy. A headset and a camera cover complement the equipment. The combination with additional adapters allows flexible adaptation to different connectors and application scenarios.

Installation and Mounting

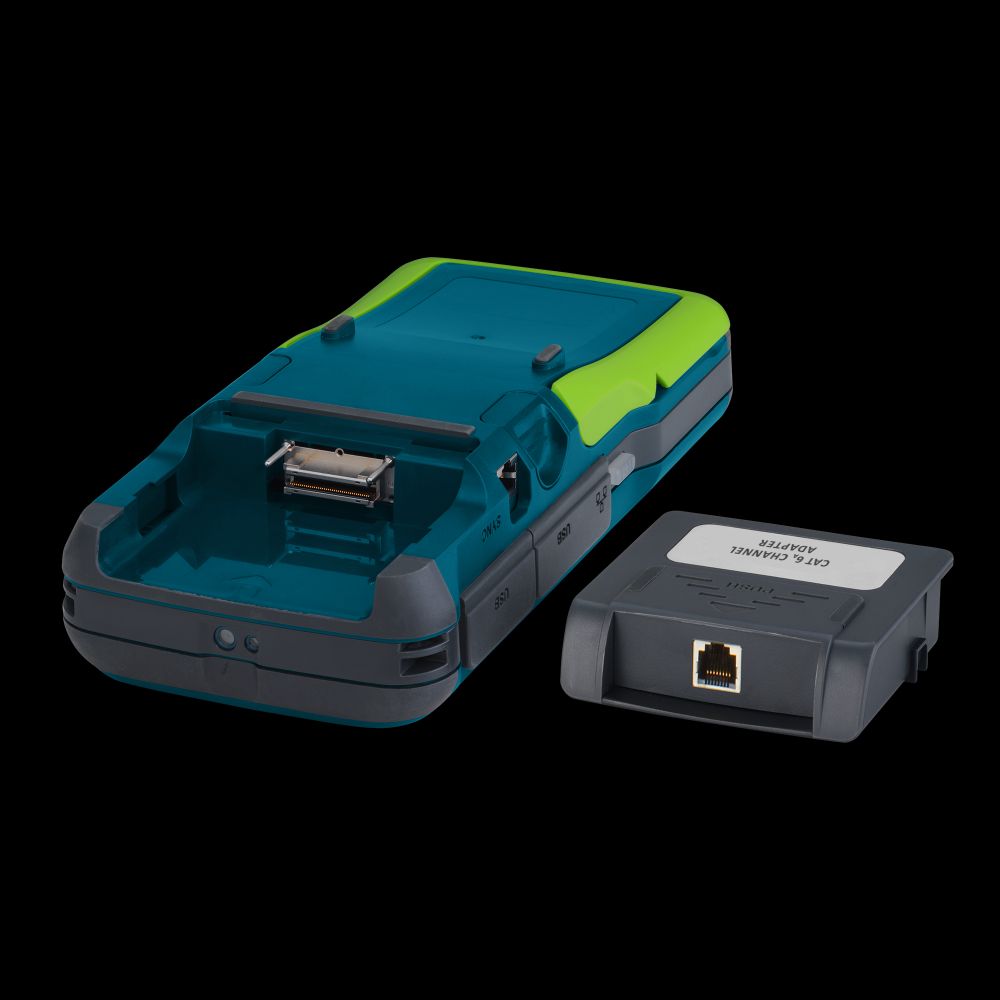

Installation is performed by connecting the mainframes to the respective measurement modules and attaching them to the cables to be tested. The CAT8.1 Channel and Permanent-Link adapters, along with the Longlife Permanent Link test cable, serve as connection elements between the measurement device and the cable under test. The speaker sets enable communication between the two devices during testing. The carrying bag provides transport and protection. The quick start guide supports the user during initial operation.

Operational Advantages
The WireXpert MP C6A + FS set offers a comprehensive certification solution for copper and fiber optic networks. The combination of two mainframes enables fast and precise bidirectional measurement. The integrated light sources and broadband power meter ensure detailed analysis of fiber performance. The use of CAT8.1 adapters and Longlife test cables guarantees high measurement accuracy. The calibration certificate and evaluation software eXport support documentation and validation of results. The speaker sets facilitate communication during testing. The set is designed for professional users requiring reliable and standard-compliant certification.

General
Mainframe quantity	2 Stück
Carry bag	1 Stück

---
