Softing IT Networks 230402 Softing WireXpert MP C8 + FS LAN Zertifizierer Paket Kupfer Module Klasse D, E, EA, F, FA, I, II und höher 3000 MHz mit Glasfaser Singlemode Modulen content_copy

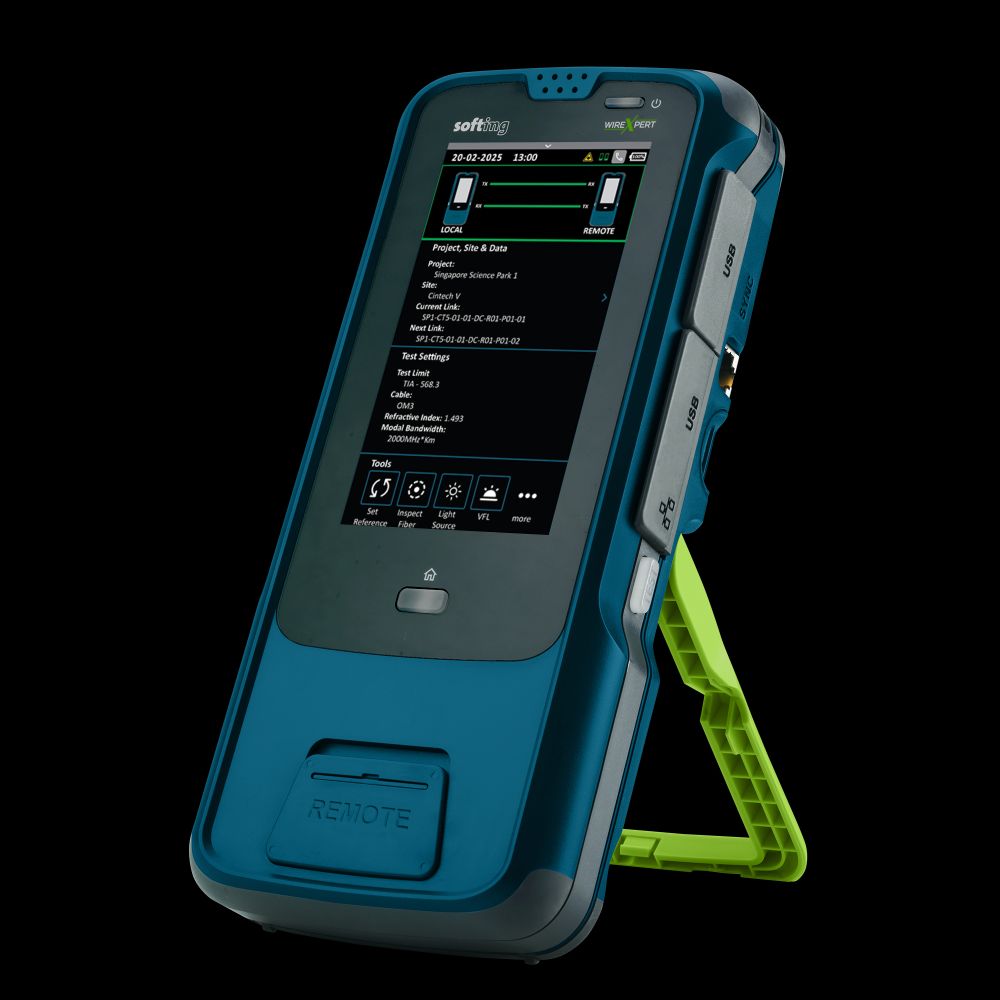

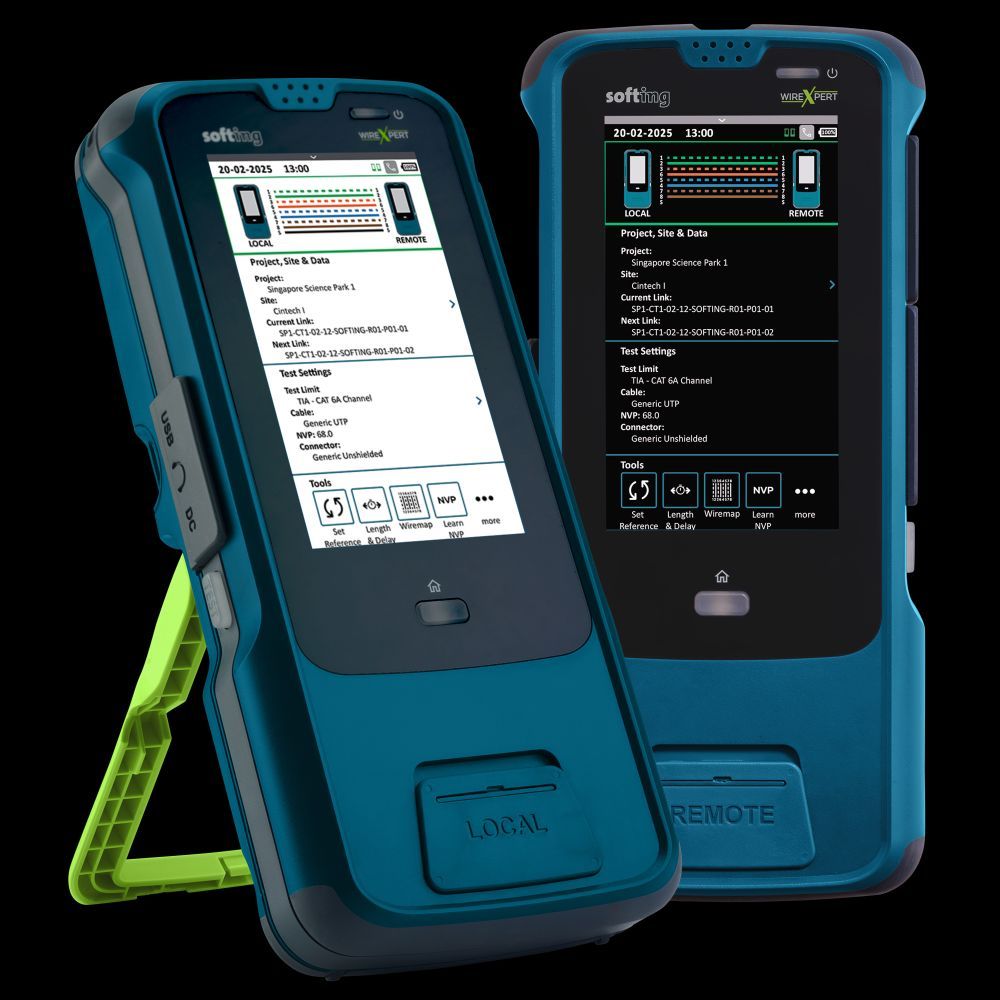

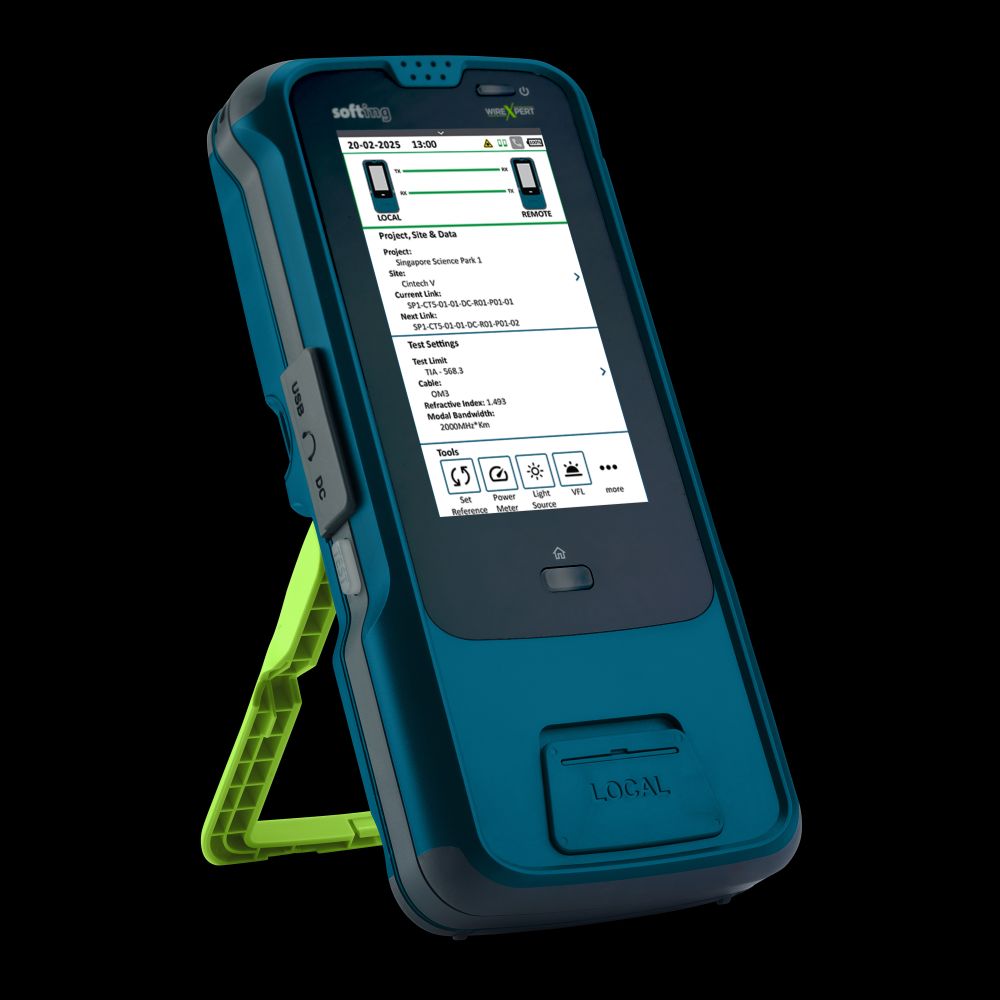

The WireXpert MP C8 + FS LAN Certification Kit from Softing IT Networks is a professional measurement system for quality testing of copper and singlemode fiber optic network cables. It is designed for certifying cable channels according to international standards and enables testing of copper lines up to 3000 MHz as well as singlemode fiber optic lines with light sources at 1310 nm and 1550 nm. The kit is intended for use in the installation, maintenance, and certification of network infrastructures in enterprises, buildings, and data centers. It includes two WireXpert MP Mainframes with Dual Control System PLUS (DCS+TM), enabling simultaneous measurement at both ends of a cable, thereby reducing test time and increasing accuracy.

Applications
This certification kit is intended for testing cable systems according to categories D, E, EA, F, FA, I, II and higher. It is particularly suitable for certifying CAT 8.1 and CAT 8.2 networks, which require high data rates and bandwidths. The integrated fiber optic measurement modules enable testing of singlemode connections used in high-speed and backbone networks. Broadband power measurement in the range of 700 nm to 1700 nm supports analysis of optical signals across various wavelength ranges. Red light sources with 1.25 mm and 2.5 mm diameters are used for visual localization of cables in complex installations.

Functions and Equipment in Detail

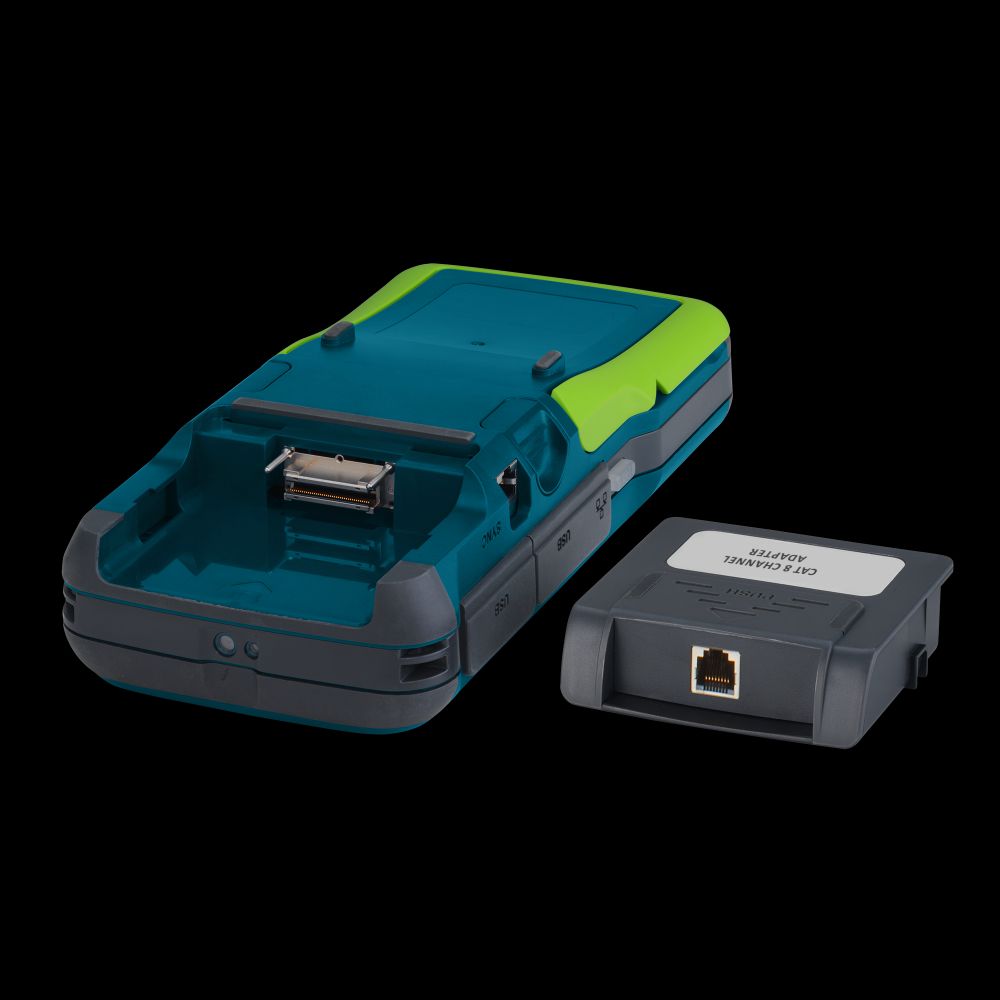

The kit includes two copper measurement modules C8, capable of measuring up to 3000 MHz, as well as two fiber optic measurement modules FS with integrated light sources for 1310 nm and 1550 nm. The measurement modules are equipped with LC and SC adapters for the light sources and power meter to ensure flexible adaptation to various connectors. Two Li-ion batteries enable mobile operation without constant power supply. Two power supplies are also included to operate the devices from a wall socket. The delivery also includes a carrying bag, a calibration certificate, the evaluation software eXport (available for download), two CAT8.1 Channel adapters, two CAT8.1 Permanent-Link adapters, Longlife Permanent Link test cables, a DCRU calibration artifact, and two headset units. A quick start guide is also part of the kit.

Technology Explained Simply
The Dual Control System PLUS (DCS+TM) technology enables simultaneous control of both mainframes, allowing synchronized measurement at both ends of a cable. This reduces test time and increases accuracy, as no manual synchronization is required. The copper measurement modules C8 are designed for testing cables up to 3000 MHz, meeting the requirements of modern high-speed networks. The fiber optic measurement modules FS support singlemode connections with light sources at 1310 nm and 1550 nm, used in long-distance and high-performance networks. Broadband power measurement in the range of 700 nm to 1700 nm enables analysis of signals across various optical bandwidths. The red light sources are used for visual identification of cables, especially in dense cable bundles.

Compatibility and Accessories
The WireXpert MP C8 + FS kit is compatible with additional accessories available as optional items. These include interchangeable adapters with SC/PC and LC/PC interfaces for the TX and RX ports of the fiber optic modules, as well as adapters for APC connectors. A hard-shell case provides protection and convenient transport. Singlemode test cables in LC/APC and SC connections, as well as reference couplers, support precise measurements. A headset and camera cover are also available. The CAT8.2 TERA Channel adapters extend compatibility for specific requirements.

Installation and Mounting

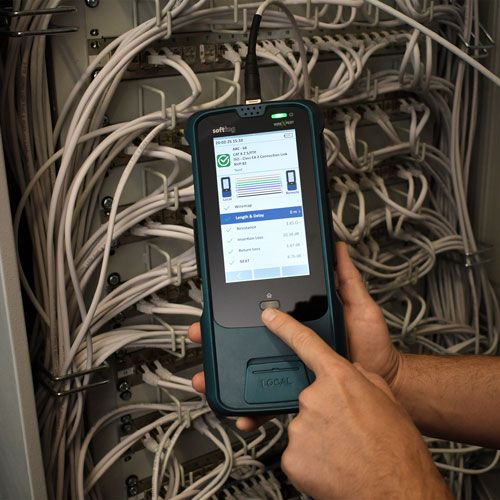

Installation is performed by connecting the mainframes to the ends of the cable to be tested. The CAT8.1 Channel and Permanent-Link adapters are connected to the cable ends to perform measurements according to standards. The headset units enable communication between the two test personnel. The devices can be operated using the Li-ion batteries or the power supplies. The carrying bag facilitates transport and storage.

Operational Advantages
The system offers high measurement accuracy and reliability through DCS+TM technology. Simultaneous measurement at both ends reduces test time and minimizes error sources. The integrated light sources and power meters for fiber optics enable comprehensive testing of optical connections. The evaluation software eXport supports documentation and analysis of measurement results. The included calibration certificate ensures traceability and quality assurance. The combination of copper and fiber optic measurement modules makes the system versatile for use in heterogeneous networks.

General
Number of mainframes	2
Number of Li-ion batteries	2
Number of power supplies	2
Number of CAT8.1 channel adapters	2
Number of speaker sets	2

---
