Softing IT Networks 230401 Softing WireXpert MP C6A + FQ LAN Zertifizierer Paket Kupfer Module Klasse D, E, EA, F 600 MHz mit Glasfaser Quad content_copy

The WireXpert MP C6A + FQ from Softing IT Networks is a professional LAN certifier for copper and fibre optic networks. The device combines copper and fibre optic measurement functions in a compact, robust system and is designed for use on construction sites and during network installations. It enables certification of copper cables up to Category 6A with a bandwidth of 600 MHz, as well as testing of multimode and singlemode fibre optic lines. Measurements are performed according to current international standards, including ISO/IEC, TIA and CENELEC/EN, ensuring reliability and acceptance of results in professional environments.

Applications
This device is suitable for network integrators, IT technicians and electrical installers working on new installations, acceptance tests or fault diagnosis in copper and fibre optic networks. It serves quality control and documentation of network infrastructures, particularly in environments where high measurement accuracy and fast result generation are required. The robust design also makes it suitable for use under construction site conditions.

Functions and Equipment in Detail

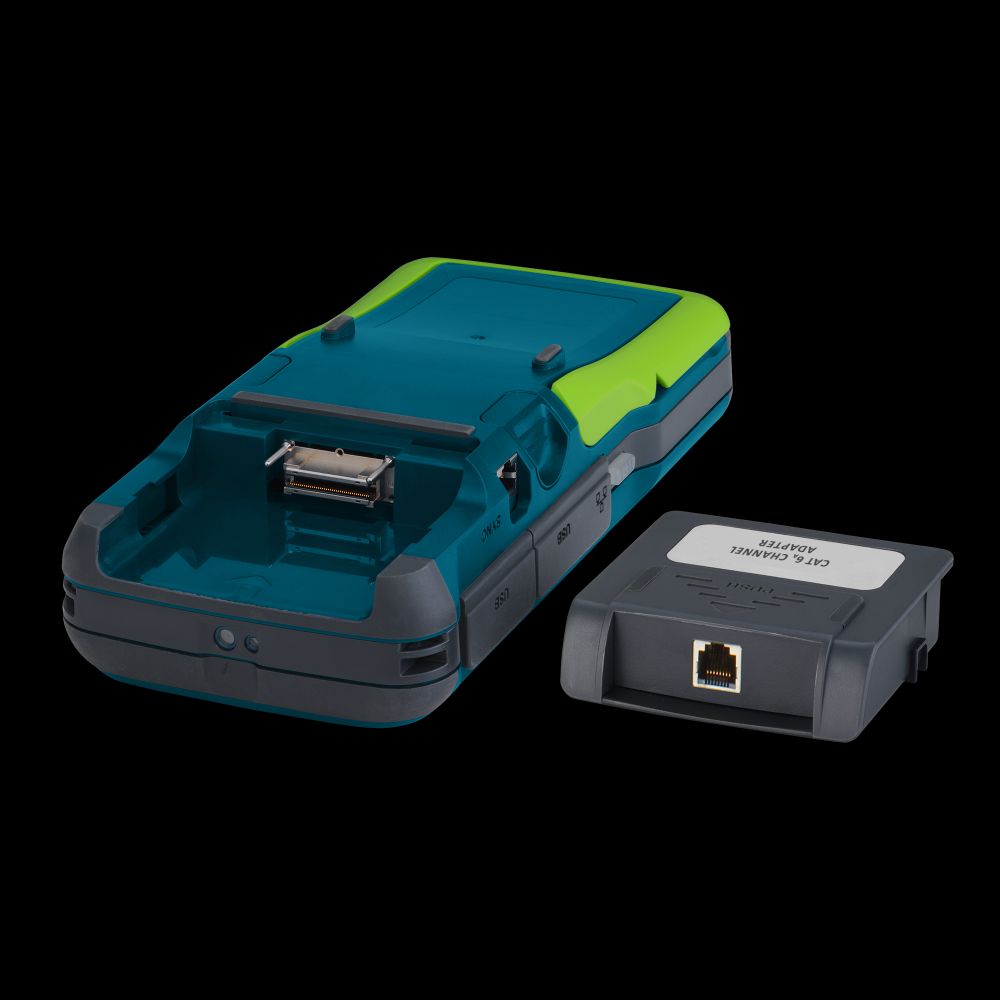

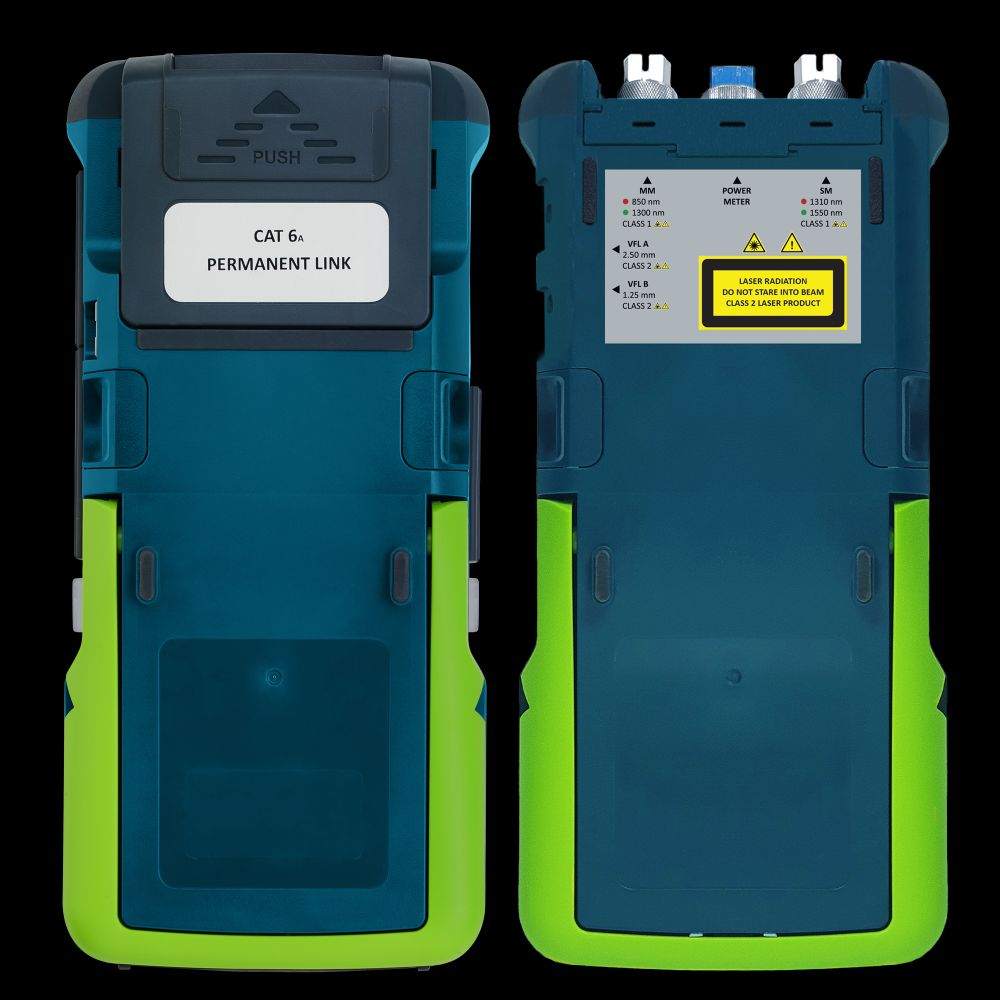

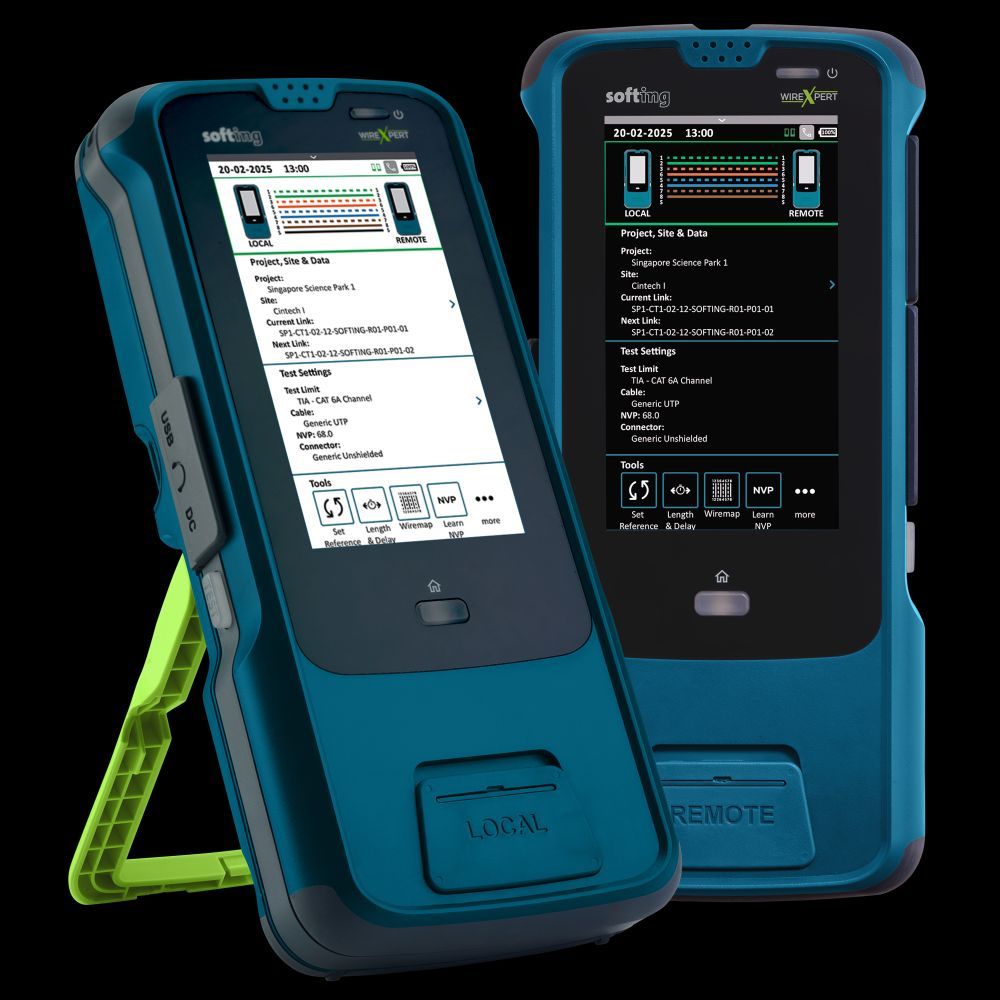

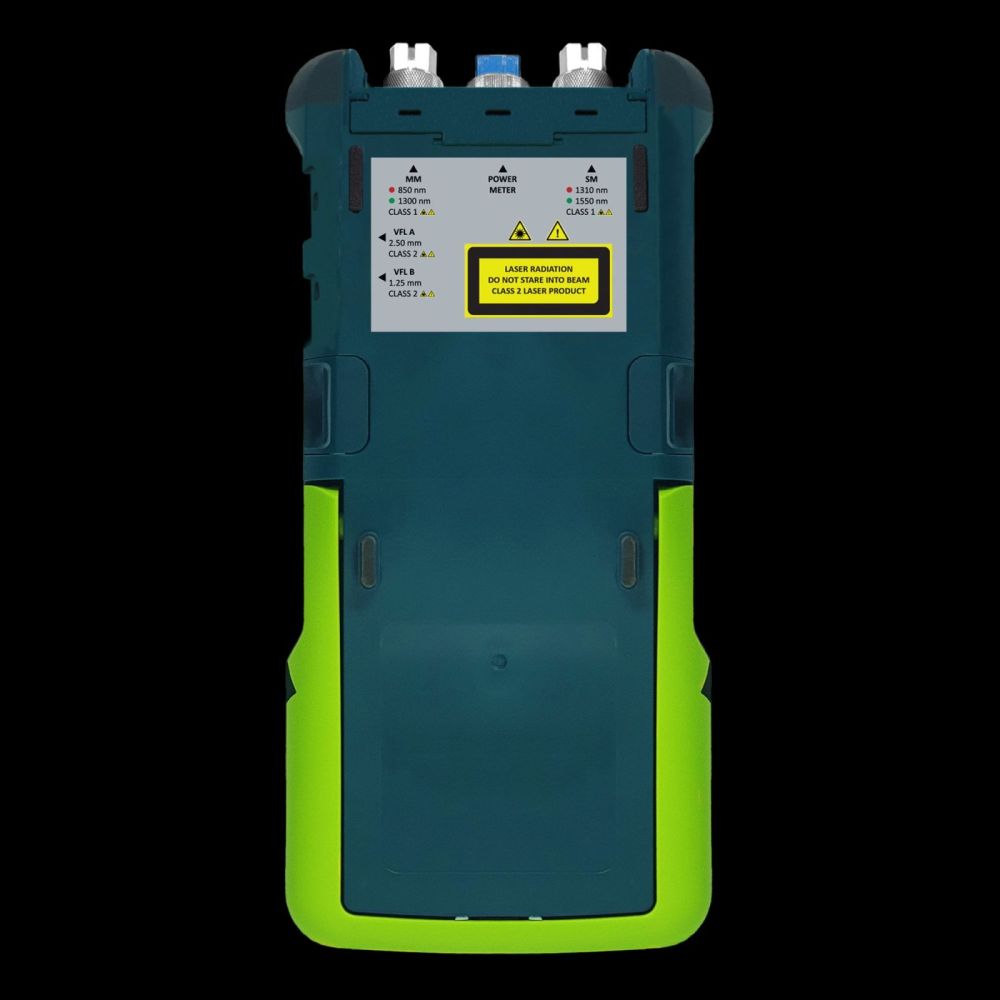

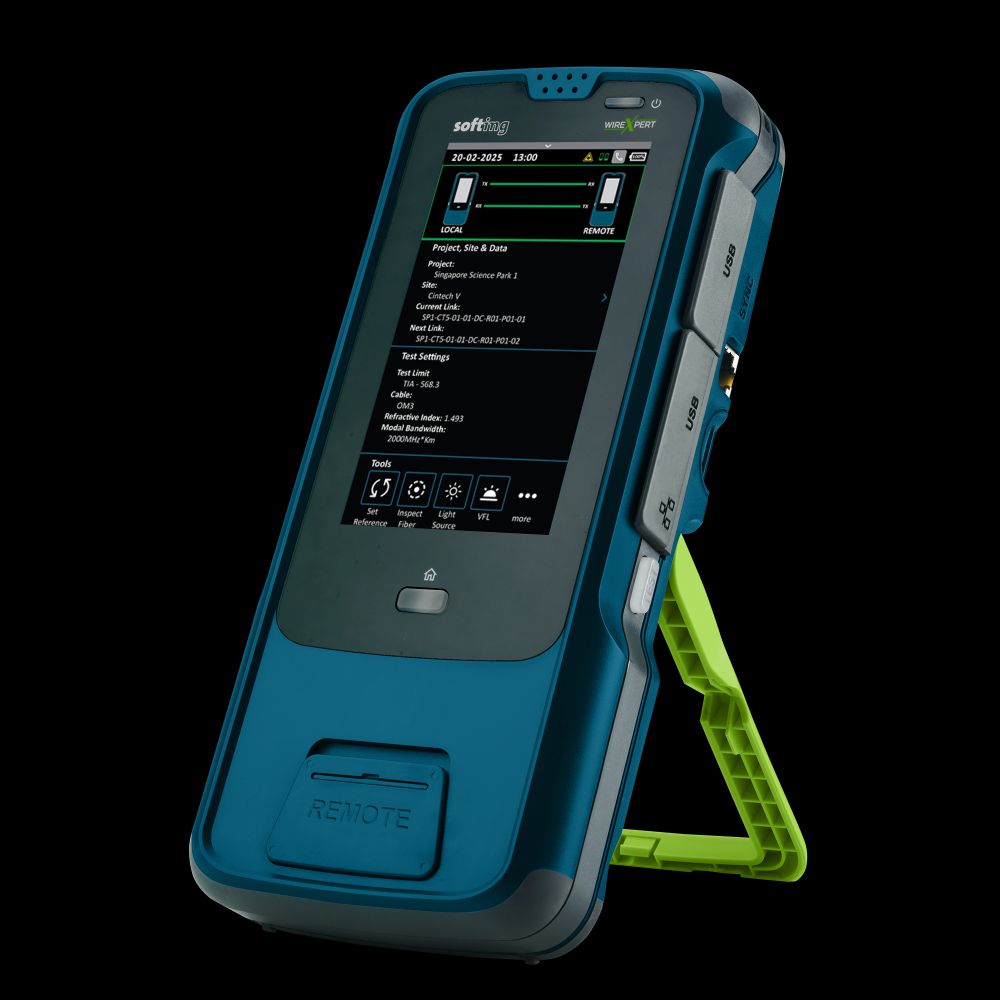

The set includes two WireXpert MP Mainframes with Dual Control System PLUS (DCS+TM), enabling parallel measurements at two locations. Each Mainframe is equipped with a copper measurement module C6A up to 600 MHz and a fibre optic measurement module FQ. The fibre optic module features light sources for multimode (850 nm and 1300 nm) and singlemode (1310 nm and 1550 nm), a broadband power meter in the range of 700 nm to 1700 nm, and red light sources with 1.25 mm and 2.5 mm diameter. The delivery includes LC and SC adapters for the light sources and the power meter. Additionally, two Li-ion batteries, two power supplies, a carrying bag, a calibration certificate, the evaluation software eXport (for download), two CAT6A Channel adapters, two CAT6A Permanent-Link adapters, a Longlife Permanent Link test cable, a DCRU calibration artefact, two speaker sets and a quick start guide are included.

Technology Explained Simply
The copper measurement modules enable certification of cables according to standards for Category D, E, EA, F and 600 MHz, ensuring compatibility with modern network requirements. The fibre optic measurement modules support testing of multimode and singlemode connections at various wavelengths, enabling comprehensive analysis of optical lines. The broadband power meter allows measurement of optical power over a wide spectral range, which is important for diagnosing faults in complex fibre optic networks. The red light sources are used for visual cable location, especially during fault diagnosis. The DCS+TM technology enables coordinated control of both Mainframes, making end-to-end connection testing more efficient.

Compatibility and Accessories
The device is expandable with various accessories, including interchangeable adapters with LC/PC and SC/PC interface for TX port, as well as adapters for RX port with SC and LC interface. There are also singlemode test cable kits SC-LC/APC (2 m duplex, reference quality), singlemode test cables LC/APC-LC/APC (reference quality), singlemode reference couplers LC/APC-LC/APC, hard-shell cases, headsets and camera covers. These accessories can be optionally added to adapt the device's functionality to specific requirements.

Installation and Mounting

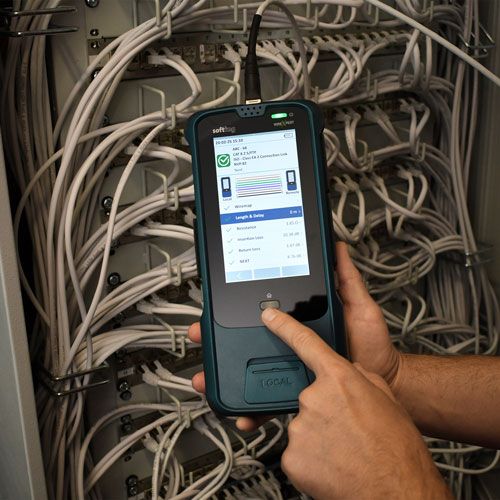

Installation is carried out using the provided adapters and test cables. The devices are designed for use in cabling networks, with the test cables connected at the respective endpoints. The eXport software enables evaluation and documentation of measurement results. The quick start guide supports initial setup. The devices are designed for use by two people, with one Mainframe positioned at each end of the connection to be tested.

Operational Advantages
The WireXpert MP C6A + FQ offers high measurement speed and maximum measurement accuracy, reducing working time and increasing result reliability. The robust construction ensures long service life even under harsh operating conditions. Certification according to international standards ensures acceptance of results in professional environments. The integrated evaluation software eXport enables structured documentation of measurement results.

General
Fibre optic measurement module	FQ
Adapter	LC, SC
Carry bag	1

---
