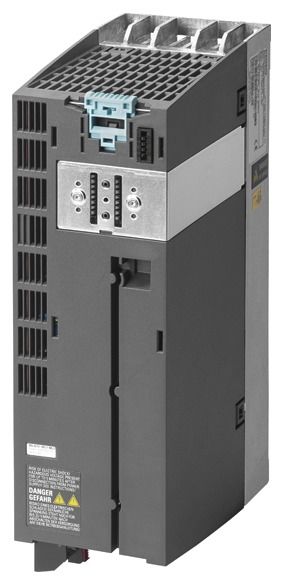

Siemens 6SL32101PB155AL0 SIEM 6SL3210-1PB15-5AL0 SINAMICS G120 Po 1/3AC200-240V+10/- 10% power: 0.75kW content_copy

SINAMICS Power Module PM240-2 with integrated class A filter with integrated brake chopper 1/3AC200-240V+10/-10% 47-63Hz High overload power: 0.75kW at 200% 3S, 150% 57S, 100% 240S, ambient temperature -10 to +50°C, Low overload power: 1.1kW at 150% 3S, 110% 57S, 100% 240S, ambient temperature -10 to +40°C 291x 100x 165 (HxWxD), FSB protection class IP20 without control unit and operator panel released from CU firmware version V4.6 Power Module SINAMICS Power Module PM240-2 the ideal power module for standard applications in mechanical engineering for the modular frequency converter SINAMICS G120. As part of the modular SINAMICS G120 frequency converter (consisting of power unit, control unit, operator panel), the PM240-2 Power Modules (protection class IP20) have a brake chopper (four-quadrant applications) and are suitable for a wide range of applications in general mechanical engineering. The PM240-2 power unit can be flexibly combined with various control units depending on the scope of the application and safety requirements (e.g. STO, SS1, SBC, SLS, SDI, SSM). In combination with the CU230-2, CU240x-2 and CU250S-2 control units, the functional SINAMICS G120 frequency converter is created. The PM240-2 with protection class IP20 is a built-in device for the control cabinet with a power range from 0.55 kW to 250 kW, as well as three voltage variants 200 V, 400 V and 690 V. The power modules are available unfiltered or with an integrated Class A line filter and in seven sizes from FSA to FSG. For optimal dissipation of waste heat outside the control cabinet, the power unit is also available as a push-through variant. The sizes also offer Safety Integrated. Due to the robust design, cable lengths of up to 450 meters (size FSF/FSG) can be achieved. Shield plates and shield connection sets are available for EMC-compliant wiring.SINAMICS - simply my drive.
Type: 6SL3210-1PB15-5AL0
