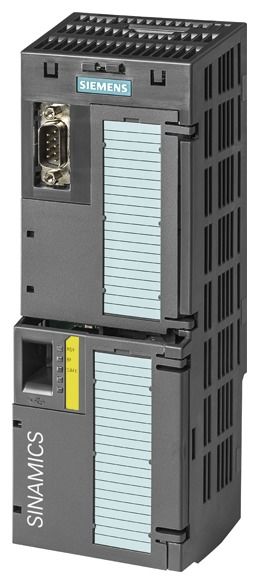

Siemens 6SL32460BA221BA0 SINAMICS G120 Control Unit CU250S-2

SINAMICS G120 Control Unit CU250S-2 integrated RS-485/USS/MODBUS RTU supports vector control Simple positioner EPOS via extended functions license 4 configurable DI/DO 6 DI (3 F-DI), 5 DI 3 DO (1 F-DO) 2 AI, 2 AO Safety integrated STO, SBC, SS1 additional safety functions via EXTENDED SAFETY license Encoder SS: D-CLiQ+HTL/TTL/SSI Resolver/HTL via terminal Protection class IP20 USB and SD/MMC interface Control Unit SINAMICS Control Unit CU250S-2 for high-performance applications in general mechanical engineering for the modular frequency converter SINAMICS G120. The Control Unit CU250S-2 is part of the modular frequency converter SINAMICS G120 (consisting of power section, control unit, operator panel). The control unit is suitable for individual drives with higher requirements for speed control. Extended safety functions and a large I/O framework allow for extensive applications. With vector control, two encoders (position and speed) can be connected. This extension enables use in lifting/swivelling/travel or rotary applications. The CU250S-2 control unit controls and monitors the power module and the connected motor in several selectable control types. It enables communication with a local or central control system and monitoring devices and is used to connect all process-relevant auxiliary units and external components such as sensors, valves, contactors, etc. The extensive I/O interfaces, the fieldbus interfaces and the additional software functions optimally support the application in general mechanical engineering. The CU250S-2 has the integrated safety functions Safe Torque Off (STO), Safe Stop 1 (SS1) and Safe Brake Control (SBC) as standard. In addition, the integrated safety functions Safely Limited Speed (SLS), Safe Speed Monitor (SSM) and Safe Direction (SDI) can be activated with the safety license. The following integrated communication variants are available: CU250S-2 with the protocols USS, Modbus RTU, CU250S-2 DP PROFIBUS as well as CU250S-2 PN PROFINET, EtherNet/IP and CU250S-2 CANopen. The control unit can be operated with the following SINAMICS power units: PM240-2 (0.55 kW to 132 kW) and PM240 (up to 250 kW). SINAMICS - simply my drive.
Type: 6SL3246-0BA22-1BA0
