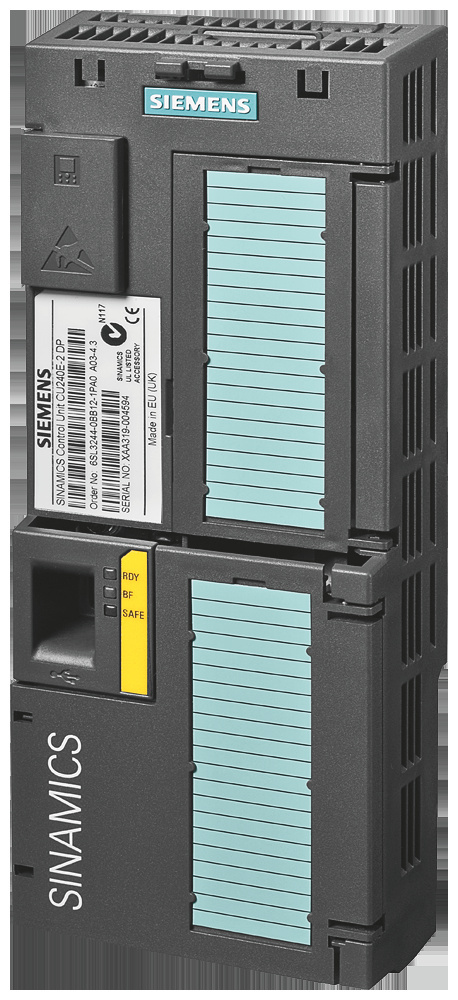

Siemens 6SL32440BB121FA0 6SL3244-0BB12-1FA0 SINAMICS G120 Co E-Type with Safety integrated STO PROFINET

SINAMICS G120 Control Unit CU240E-2 PN E-type with Safety integrated STO PROFINET 6DI, 3DO, 2AI, 2AO, max. 1F-DI PTC/KTY interface USB and SD/MMC interface Protection class IP20 Ambient temperature 0 to +50°C without Power Module Control Unit SINAMICS Control Unit CU240E-2 PN for standard applications in general mechanical engineering for the modular frequency converter SINAMICS G120. The Control Unit CU240E-2 is part of the modular frequency converter SINAMICS G120 (consisting of power unit, control unit, operator panel). The control unit is designed for all common applications with V/f or vector control. These include, for example, sensorless basic applications in general mechanical engineering. The CU240E-2 has the integrated safety function Safe Torque Off (STO) as standard. In addition, the control unit has the integrated safety functions SS1, SLS, SDI and SSM and is therefore versatile. The CU240E-2 control unit controls and monitors the power module and the connected motor in several selectable control types. It enables communication with a local or central control system as well as with monitoring devices and is used to connect all process-relevant auxiliary units and external components such as sensors, valves, contactors, etc. The I/O interface, the fieldbus interfaces and the additional software functions optimally support the application in general mechanical engineering. For intuitive series commissioning, a card slot is available for cloning parameter sets. The communication interface of the converter is determined by selecting the CU240E-2. The following integrated communication variants are available: CU240E-2 with the protocols USS, Modbus RTU, CU240E-2 DP PROFIBUS and CU240E-2 PN PROFINET, EtherNet/IP. The control unit can be operated with the following SINAMICS power units: PM240-2 (0.55 kW to 132 kW) and PM240 (up to 250 kW). SINAMICS - simply my drive.
Type: 6SL3244-0BB12-1FA0
