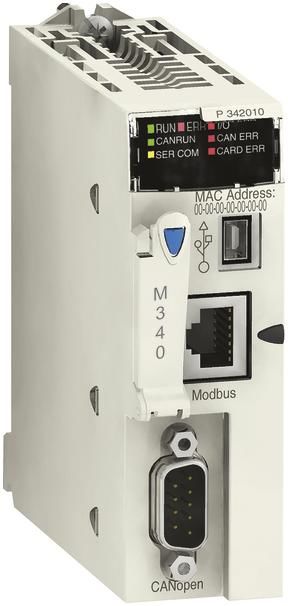

Schneider Electric BMXP3420102
Schneider processor module M340 max.1024 digital + 256 analog I/O

This processor module is part of the Modicon M340 range, a range of programmable logic controllers (PLCs). It offers a maximum configuration of 4 module racks, 36 application-specific channels, 63 CANopen slaves and 11 slots. It is a processor module with a current consumption of 90mA at 24V DC, works with internal power supply. The interfaces of the communication processor module are 2 Ethernet modules and 4 AS-Interface modules. It is supplied with a memory card for backing up programs, constants, symbols and data. It is an IP20 protection product. The module has a discrete I/O processor capacity of 1024 multi-rack, 704 single-rack configurations and an analog I/O processor capacity of 256 multi-rack, 66 single-rack configurations. It supports transfer rate up to 800kbps 0m to 40m, 0m to 6m. It is suitable for applications in process industries, renewable energy, water, cement, manufacturing, infrastructure and machinery. This product is certified by CE. It complies with EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. It comes with a memory card (BMXRMS008MP) to back up programs, constants, symbols and data, internal RAM 4096kB, internal RAM 256kB data, internal RAM 3584kB program constants and symbols. The compact Modicon M340 offers flexibility and integrated features in a small housing. At the core of the process, it offers you plug-and-work solutions with both Schneider Electric and third-party devices.
Type: BMXP3420102
