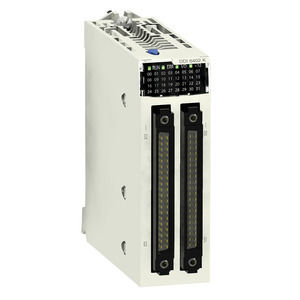

Schneider Electric BMXDDI6402K Schneider M340 64DI 24VDC

This digital input module is part of the Modicon X80 range, a range of common input/output and communication modules, power supplies and module carriers for Modicon M340 and Modicon M580. This product consists of 64 input channels and is powered by 24V DC (positive). This product meets the TC treatment requirements (treatment for all climates) and can operate in a temperature range of 0°C to +60°C/32°F to 140°F. Modicon X80 modules provide a uniform environment for the use of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs. It has an external fuse per channel group 0.5A fast blow and without reverse polarity protection. This product has an IP20 protection class and offers an MTBF of 511,375 hours. This product meets the needs of our customers in the Smart Infrastructure, Water and Wastewater, Consumer Packaged Goods, Mining, Minerals, Metals, Data Center and Power Generation industries. This product is certified by CE, UL, CSA, RCM, EAC, UKCA and Merchant Marine and complies with EN 61000-6-5 and EN 61850-3 standards. This module is compatible with Modicon M340, M580 (Local or Remote I/O) PLCs with two 40-pin connectors. The product must be installed in the module carrier and secured with 2 screws.
