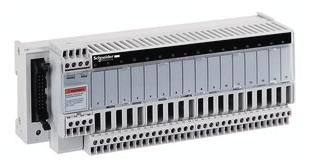

Schneider Electric ABE7S16E2B1 terminal block 16 channels
|
-7% 420,99 EUR 454,48 EUR |
|
|
( 500,98 EUR incl. VAT ) ≈ £351.95 | ≈ $465.19 plus delivery charges: 55,00 € |
|
| Made to order · Delivery time approx. 10 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 583920 |
| Mfg Part No: | ABE7S16E2B1 |
| UPC/EAN: | 3389110546248 |
| Weight: | 0.438 kg |
| Type: | ABE7S16E2B1 |
Further PLC Systems from Schneider ElectricFurther products in category PLC Systems
All products of Schneider Electric
Product information for Schneider Electric ABE7S16E2B1:
This product is part of the Modicon ABE7 range, a range of connection bases for the Telefast pre-wired system. The connection base with soldered solid state output relay offers 16 channels. It has 2 terminals per channel. This product allows the quick connection of I/O modules. It is a relay subassembly with a supply voltage of 19V to 30V DC and a current of 0.012A per channel. It is equipped with screw terminals for electrical connection. It is an IP2x protection product. It weighs 0.37 kg. It is suitable for all types of industrial applications. This product is certified by GL, CSA, DNV, BV, LROS and UL. Fixing is done by clamps (35mm symmetrical DIN rail) and screws (solid plate with fixing kit). Modicon ABE7 simplifies wiring in automation systems. Pre-wired system that allows the connection and adaptation of the control signals of the PLC cards equipped with HE10 connectors.
| Complementary | |
| Terminal block type | Removable |
| Supply voltage limits | 19…30 V DC (PLC end) conforming to IEC 61131-2 |
| Protection type | Internal fuse 1 A 5 x 20 mm fast blow PLC end; Adjustable by external fuse fast blow sensor end |
| Fixing mode | By clips (35 mm symmetrical DIN rail); By screws (solid plate with fixing kit) |
| Current per channel | 0.012 A |
| Current state 1 guaranteed | >= 2 mA (sensor end) |
| Voltage state 1 guaranteed | >= 15 V for sensor end |
| Maximum switching current | 15 mA (PLC end) |
| Minimum switching current | 1 mA for PLC end |
| [Uimp] rated impulse withstand voltage | 2.5 kV conforming to IEC 60947-1 |
| [Ui] rated insulation voltage | 2000 V |
| Installation category | II conforming to IEC 60664-1 |
| Tightening torque | 0.6 N.m with flat Ø 3.5 mm screwdriver |
| Net weight | 0.37 kg |
| Isolation PLC/operative part | |
| Contractual warranty | |
| Warranty (in months) | 18 |
| Environment | |
| Dielectric strength | 2000 V at 50/60 Hz conforming to IEC 60947-1 |
| Product certifications | UL; DNV; CSA; GL; EAC |
| Standards | IEC 61131-2 Type 1 |
| IP degree of protection | IP2X conforming to IEC 60529 |
| Resistance to incandescent wire | 750 °C conforming to IEC 60695-2-11 |
| Shock resistance | 15 gn for 11 ms conforming to IEC 60068-2-27 |
| Vibration resistance | 2 gn (f= 10…150 Hz) conforming to IEC 60068-2-6 |
| Resistance to electrostatic discharge | 4 kV (contact) level 3 conforming to IEC 61000-4-2; 8 kV (air) level 3 conforming to IEC 61000-4-2 |
| Resistance to radiated fields | 10 V/m (26000000…1000000000 Hz) conforming to IEC 61000-4-3 level 3 |
| Resistance to fast transients | 2 kV level 3 conforming to IEC 61000-4-4 |
| Ambient air temperature for operation | -5…60 °C conforming to IEC 61131-2 |
| Ambient air temperature for storage | -40…80 °C conforming to IEC 61131-2 |
| Pollution degree | 2 conforming to IEC 60664-1 |
| Logistical informations | |
| Country of origin | LV |
| Main | |
| Range of product | Modicon ABE7 |
| Product or component type | Solid state input relay sub-base |
| [Us] rated supply voltage | 24 V DC (PLC end); 24 V DC (sensor end) |
| Number of channels | 16 |
| Number of terminal per channel | 2 |
| Connections - terminals | Screw type terminals, 1 x 0.09...1 x 1.5 mm², 0.09…1.5 mm² (28 AWG...16 AWG) flexible with cable end; Screw type terminals, 1 x 0.14...1 x 2.5 mm², 0.14…2.5 mm² (26 AWG...12 AWG) solid; Screw type terminals, 1 x 0.14...1 x 2.5 mm², 0.14…2.5 mm² (26 AWG...14 AWG) flexible without cable end; Screw type terminals, 2 x 0.09...2 x 0.75 mm², 0.09…0.75 mm² (28 AWG...20 AWG) flexible with cable end; Screw type terminals, 2 x 0.2...2 x 2.5 mm², 0.2…2.5 mm² (24 AWG...14 AWG) solid |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 7.0 cm |
| Package 1 Width | 8.3 cm |
| Package 1 Length | 21.0 cm |
| Package 1 Weight | 438.0 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 16 |
| Package 2 Height | 30.0 cm |
| Package 2 Width | 30.0 cm |
| Package 2 Length | 40.0 cm |
| Package 2 Weight | 7.478 kg |
