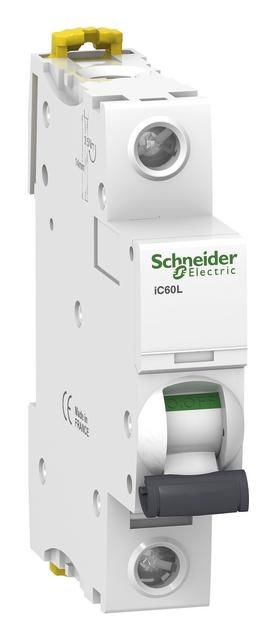

Schneider Electric A9F92104 MCBs iC60L 1p, Z 4A
|
50,54 EUR 52,67 EUR |
|||||||||||
|
( 60,14 EUR incl. VAT ) ≈ £43.46 | ≈ $57.62 plus delivery charges: 53,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 532157 | ||||||||||
| Mfg Part No: | A9F92104 | ||||||||||
| UPC/EAN: | 3606480085413 | ||||||||||
| Weight: | 0.123 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Further Circuit breaker from Schneider ElectricFurther products in category Circuit breaker
All products of Schneider Electric
Product information for Schneider Electric A9F92104:
Circuit breaker Acti 9 iC60L, 15kA (IEC/EN 60898-1), 100kA (IEC/EN 60947-2). 1-pole, nominal current 4A, Z characteristic, operating voltage (Ue) 220-240V AC, insulation voltage (Ui) 500V AC. Double connection terminal for cable and pin comb bar on the top and bottom of the device. Snap action for low-wear switching of the contacts. Moving insulation cover. Operation of the top hat rail fastening element on the front of the device for tool-free installation and easy access for the user. With mechanical front-side fault indication display (VisiTrip) to indicate tripping due to overload or short circuit. Safe contact display (VisiSafe) of the circuit breaker, green display ensures that there is no voltage on the output side. Terminals IP20, moving insulation cover. Single connection terminal from above or below. Easy removal of the individual device when the phase rail is installed, thanks to the fastening element accessible from the front. Can be combined with the residual current circuit breakers from the Acti 9 iID series, as well as the FI Block Vigi iC60. Additional auxiliary modules that can be connected in series (optional) - display of switch position, fault tripping, shunt release, undervoltage release, overvoltage release. Color RAL 9003. The iC60L circuit breaker meets the following standards - IEC/EN 60898-1 (up to 40A) and IEC/EN 60947-2. This series is also VDE certified!
Type: A9F92104
Type: A9F92104
Questions & answers
What is the delivery time of Schneider Electric A9F92104 MCBs iC60L 1p, Z 4A?
The article Schneider Electric A9F92104 MCBs iC60L 1p, Z 4A is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Schneider Electric A9F92104 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Schneider Electric A9F92104 MCBs iC60L 1p, Z 4A always at the best possible price. We can give you a discount of 2% on Schneider Electric A9F92104 MCBs iC60L 1p, Z 4A if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 6 pieces of Schneider Electric A9F92104 MCBs iC60L 1p, Z 4A we can offer you a price of 48,27 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
