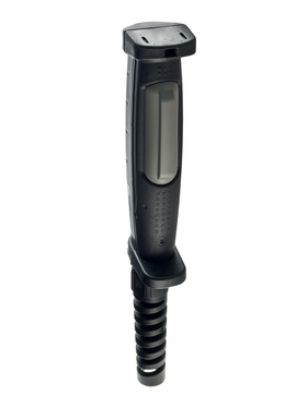

Schmersal ZSD5CC enabling switch complete 103043703
|
348,61 EUR |
|||||||||||
|
( 414,85 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 1104260 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 103043703 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Schmersal 103043703:
The switch features a self-extinguishing thermoplastic housing, which is both lightweight and durable. It is rated IP66, making it resistant to dust and strong water jets, ideal for harsh industrial environments.
With a minimum positive opening force of 70 N and a positive opening travel of 4.7 mm, the ZSD5CC ensures safe separation of contacts. The switch offers a mechanical lifespan of up to 1 million switching cycles and a maximum switching frequency of 1,200 operations per hour.
The spring clamp terminals allow for easy and secure electrical connections. The switch supports cable diameters ranging from 7 mm to 13 mm and wire cross-sections from 0.2 mm² to 1.5 mm².
The ZSD5CC is suitable for voltages up to 250 VAC and currents up to 2.5 A. It is recommended to use a compatible SRB series safety relay with cross-fault monitoring to optimize safety functions.
Technical Data – ZSD5CC:
Order Information:
Product Type Designation: ZSD5CC
Article Number: 103043703
EAN: 4030661623351
Approvals and Standards:
cULus
EN ISO 13849-1
EN IEC 60947-5-1
EN IEC 60947-5-8
Material and Weight:
Housing Material: Plastic, Thermoplastic, Self-Extinguishing
Gross Weight: 490 g
Features:
Number of NC Contacts: 1
Number of NO Contacts: 2
Safety Assessment:
Performance Level (PL): d
Category: 3
B10D Value for NC Contact: 100,000 switching cycles
Mechanical Data:
Positive Opening Travel: 4.7 mm
Positive Opening Force, Min.: 70 N
Mechanical Lifespan:
Stage 1 - 2 - 1: 1,000,000 cycles
Stage 1 - 2 - 3 - 1: 100,000 cycles
For more detailed technical data, refer to the German section.
Type: ZSD5CC
