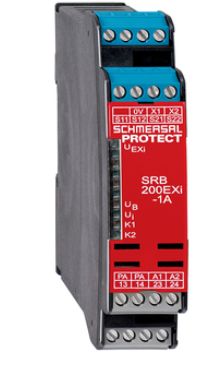

Schmersal SRB 200EXi-1A Ex safety relay module 101196286
|
650,03 EUR |
|||||||||||
|
( 773,54 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 1767716 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 103037577 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Schmersal 103037577:
The relay complies with key standards such as EN ISO 13849-1, EN IEC 60947-5-1, and EN IEC 61508, making it suitable for safety-critical applications in explosive environments where a Safety Integrity Level (SIL) up to 3 is required.
The housing is made of durable glass-fiber reinforced thermoplastic, providing excellent mechanical stability. With an integrated status display featuring 5 LEDs, the relay reliably indicates the operating status and any potential faults. The device includes two positively driven safety contacts and supports an operating voltage of 24 VDC.
The SRB200EXi-1A can be mounted on DIN rails according to DIN EN 60715. Thanks to its compact design and support for cross-fault, wire-break, and ground-fault detection, it offers comprehensive diagnostic capabilities.
The relay is suitable for use in explosive areas of category 3G and carries the marking D II 3 G Ex nA nC IIC T5 Gc.
Applications:
Monitoring of safety sensors
Securing protective devices
Integration into emergency stop circuits
Technical Data – SRB200EXi-1A:
Order Information:
Product Type Designation: SRB200EXi-1A
Article Number: 103037577
EAN: 4030661544939
Approvals and Certificates:
ATEX
IECEx
INMETRO
Explosion Protection:
Standards: EN IEC 60079-0, EN 60079-11, EN IEC 60079-15
Explosion Protection Zones: Zone 2
Explosion Protection Category: 3G
Explosion Protection Marking:
D II 3 G Ex nA nC IIC T5 Gc
D II (2) G [Ex ib Gb] IIC
D II (2) D [Ex ib Db] IIIC
Material and Weight:
Housing Material: Plastic, glass-fiber reinforced thermoplastic, ventilated
Gross Weight: 266 g
Features:
Wire-Break Detection: Yes
Cross-Fault Detection: Yes
Ground-Fault Detection: Yes
Integrated Status Display: Yes
Number of LEDs: 5
Number of Safety Contacts: 2
Safety Assessment:
Standards: EN ISO 13849-1, EN IEC 60947-5-1, EN IEC 61508
Stop Category: 0
Performance Level (PL), Stop 0: Up to PL e
Category (Stop 0): 4
Diagnostic Coverage (DC), Stop 0: ≥ 99 %
PFH Value, Stop 0: 2.00 x 10⁻⁸ /h
Safety Integrity Level (SIL), Stop 0: Suitable for SIL 3 applications
Service Life: 15 years
Type: SRB200EXi-1A
