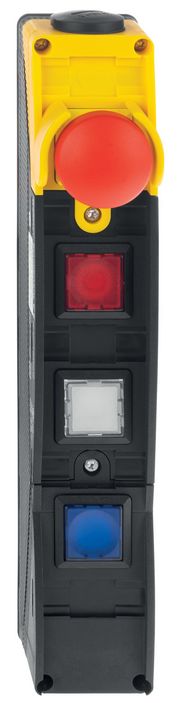

Schmersal BDF 200-NHK-20-LT-LT-LT-2875 control panel 103007786

The BDF200-NHK-20-LT-LT-LT-2875 is a compact and robust command and signaling device, designed for installation on machinery and industrial systems. It features an emergency stop pushbutton with a protective collar, which prevents accidental actuation and enhances safety. The device also includes three illuminated pushbuttons, with interchangeable colors to allow for flexible control and signaling options.

The housing is made of self-extinguishing, glass-fiber reinforced thermoplastic, providing high durability against mechanical and electrical stress. With an IP65 protection rating, the device is dustproof and water-resistant, making it suitable for harsh industrial environments. The electrical connection is facilitated by removable screw terminals, ensuring easy and flexible installation.

The emergency stop system complies with EN ISO 13850 and EN IEC 60947-5-5 standards. The protective collar around the emergency stop button ensures that the switch is only triggered intentionally, preventing unwanted machine shutdowns.

With a mechanical lifespan of up to 1 million switching cycles, the device is highly durable and low-maintenance. The BDF200-NHK is designed for mounting on 40 mm profiles, allowing flexible integration into existing machine setups.
Technical Data – BDF200-NHK-20-LT-LT-LT-2875:

Order Information:

Product Type Designation: BDF200-NHK-20-LT-LT-LT-2875
Article Number: 103007786
EAN: 4030661451824

Approvals and Certificates:

cULus

Standards:

EN ISO 13850
EN IEC 60947-5-1
EN IEC 60947-5-5
EN IEC 60947-1

Material and Weight:

Design: Surface-mounted housing
Housing Material: Plastic, glass-fiber reinforced thermoplastic, self-extinguishing
Gross Weight: 280 g

Occupied Positions:

Position 1: Emergency stop pushbutton with protective collar
Position 2: Illuminated pushbutton (interchangeable color)
Position 3: Illuminated pushbutton (interchangeable color)
Position 4: Illuminated pushbutton (interchangeable color)

Features:

Emergency Stop Button: Yes
Protective Collar in Housing Cover: Yes
Safety Functions: Yes
Removable Terminals: Yes
Number of Cable Wires: 16

Mechanical Data:

Cable Entry Position: Bottom
Mechanical Lifespan, Emergency Stop Button: 100,000 switching cycles
Mechanical Lifespan, Control Devices: 1,000,000 switching cycles
Actuation Stroke: 3 mm
Maximum Actuation Force: 8 N (per contact)
Typical Contact Force: 1 N

Connection Technology:

Cable Entry: M20 cable gland
Clamping Range: 6 mm to 13 mm
Wire Cross-Section: 0.5 mm²
Connection (Mechanical): Removable screw terminals

Dimensions:

Width: 40 mm
Height: 69 mm
Depth: 249 mm

Environmental Conditions:

Protection Rating: IP65
Operating Temperature: -25 to +65 °C
Vibration Resistance: 10 to 100 Hz, with 20 g
Shock Resistance: 100 g / 6 ms

Insulation Ratings:

Rated Insulation Voltage Ui: 250 VAC
Rated Impulse Withstand Voltage Uimp: 2.5 kV
Overvoltage Category: III
Pollution Degree: 3

Electrical Data:

Thermal Continuous Current: 2 A / 2.5 A
LED Current Consumption (Operating Elements): 16 mA
Rated Operating Voltage: 24 VDC
Voltage, Category AC-15: 24 VAC
Current, Category AC-15: 2 A
Voltage, Category DC-13: 24 VDC
Current, Category DC-13: 1 A

Status Indicator:

Indicator Light Color: None (Black plug cover)

Other Information:

Application: Suitable for 40 mm profiles
Type: BDF200-NHK-20-LT-LT-LT-2875
