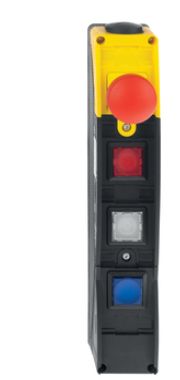

Schmersal BDF 200-NH-20-LT-LT-LT-2875 control panel 103007783

The BDF200-NH-20-LT-LT-LT-2875 is a versatile command and signaling device, specially designed for installation on machinery and industrial systems. The device combines multiple control and safety elements in a compact surface-mounted enclosure. The main component is an emergency stop pushbutton, designed to safely shut down machines in accordance with EN ISO 13850 and EN IEC 60947-5-5. The emergency stop button is complemented by three illuminated pushbuttons, with interchangeable colors to fit various signaling requirements.

The housing is made of robust glass-fiber reinforced thermoplastic, which is self-extinguishing and highly resistant to mechanical stress. The device is protected against dust and water (IP65 protection) and is therefore suitable for demanding environments.

The BDF200 offers a high mechanical lifespan of up to 1 million switching cycles for the pushbuttons and 100,000 switching cycles for the emergency stop button. The electrical connection is made via removable screw terminals, allowing for easy and flexible installation. The built-in cable glands ensure secure wiring with a clamping range of 6 to 13 mm.

Thanks to its compact design with a height of 249 mm and a width of 40 mm, the device is ideal for mounting on 40 mm profiles.
Technical Data – BDF200-NH-20-LT-LT-LT-2875:

Order Information:

Product Type Designation: BDF200-NH-20-LT-LT-LT-2875
Article Number: 103007783
EAN: 4030661451794

Approvals and Certificates:

cULus

Standards:

EN ISO 13850
EN IEC 60947-5-1
EN IEC 60947-5-5
EN IEC 60947-1

Material and Weight:

Design: Surface-mounted housing
Housing Material: Plastic, glass-fiber reinforced thermoplastic, self-extinguishing
Gross Weight: 280 g

Occupied Positions:

Position 1: Emergency stop pushbutton
Position 2: Illuminated pushbutton (interchangeable color)
Position 3: Illuminated pushbutton (interchangeable color)
Position 4: Illuminated pushbutton (interchangeable color)

Features:

Emergency Stop Button: Yes
Safety Functions: Yes
Removable Terminals: Yes
Number of Cable Wires: 16

Mechanical Data:

Mechanical Lifespan, Emergency Stop Button: 100,000 switching cycles
Mechanical Lifespan, Control Devices: 1,000,000 switching cycles
Actuation Stroke: 3 mm
Maximum Actuation Force: 8 N
Typical Contact Force: 1 N

Connection Technology:

Cable Entry: M20 cable gland
Clamping Range: 6 mm to 13 mm
Wire Cross-Section: 0.5 mm²

Dimensions:

Width: 40 mm
Height: 69 mm
Depth: 249 mm

Environmental Conditions:

Protection Rating:(IP65
Operating Temperature: -25 to +65 °C
Vibration Resistance: 10 to 100 Hz, with 20 g
Shock Resistance: 100 g / 6 ms

Insulation Ratings:

Rated Insulation Voltage Ui: 250 VAC
Rated Impulse Withstand Voltage Uimp: 2.5 kV
Overvoltage Category: III
Pollution Degree: 3

Electrical Data:

Thermal Continuous Current: 2 A / 2.5 A
LED Current Consumption (Operating Elements): 16 mA
Rated Operating Voltage: 24 VDC
Voltage, Category AC-15: 24 VAC
Current, Category AC-15: 2 A
Voltage, Category DC-13: 24 VDC
Current, Category DC-13: 1 A

Status Indicator:

Indicator Light Color: None (Black plug cover)

Other Information:

Application: Suitable for 40 mm profiles
Type: BDF200-NH-20-LT-LT-LT-2875
