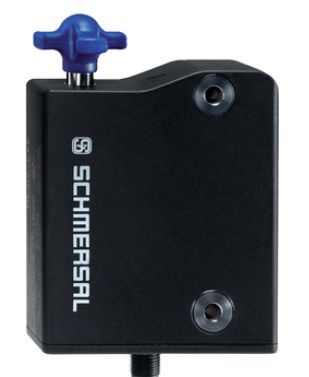

Schmersal AZM 300Z-I1-ST-1P2P safety locking device 103001437
|
468,02 EUR |
|||||||||||
|
( 556,94 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 1134106 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 103001437 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Schmersal 103001437:
Product Description in English:
The AZM300Z-I1-ST-1P2P safety interlock switch with individual coding offers top-tier protection for industrial applications. Leveraging RFID technology and a high coding level per EN ISO 14119, this switch ensures tamper-proof operation. Its latch monitoring function, adjustable latching force (25 N/50 N), and the ability to chain up to 31 devices make it an ideal choice for complex safety systems.
The switch meets safety standards up to Performance Level e (interlocking function) and d (latching function), as well as SIL 3. Built with robust, glass fiber-reinforced plastic, it is designed for demanding environments. With an IP66, IP66, and IP69 protection rating, it also meets hygienic requirements, making it highly versatile.
Technical Data:
Product Type Designation:
- AZM300Z-I1-ST-1P2P
Order Number:
- 103001437
EAN:
- 4030661425979
eCl@ss Numbers:
- Version 12.0: 27-27-26-03
- Version 11.0: 27-27-26-03
- Version 9.0: 27-27-26-03
ETIM Numbers:
- Version 7.0: EC002593
- Version 6.0: EC002593
Approvals:
- TÜV, cULus, ECOLAB, FCC, IC, UKCA, ANATEL
General Data:
- Standards: EN ISO 13849-1, EN ISO 14119, EN IEC 60947-5-3, EN IEC 61508
- Coding: Individual Coding
- RFID Frequency: 125 kHz
- Housing Material: Glass fiber-reinforced thermoplastic
- Gross Weight: 550 g
Safety Consideration:
- Interlocking Function: PL e, Category 4, SIL 3
- Latching Function: PL d, Category 2, SIL 2
- Service Life: 20 years
Mechanical Data:
- Holding Force: 1,150 N (FZh), max. 1,500 N (Fmax)
- Latching Force: Adjustable (25 N / 50 N)
- Dimensions: 120 mm x 87.5 mm x 35 mm
Electrical Data:
- Operating Voltage: 24 VDC -15 % / +10 %
- Secure Digital Outputs: 2, short-circuit proof, p-switching
- Diagnostic Output: Yes
- Rated Operating Current: 800 mA
Environmental Conditions:
- Protection Class: IP66, IP66, IP69
- Operating Temperature: +0 ... +60 °C
- Relative Humidity: Max. 93 %, non-condensing
Scope of Delivery:
- Actuator not included.
Accessories:
- Recommended Actuator: AZ/AZM300-B1
Notes:
- Optional mounting plate MP-AZ/AZM300-1 available for flush doors.
- Suitable for glass and Makrolon doors with mounting kit MS-AZ/AZM300-B1-1.
Type: AZM 300Z-I1-ST-1P2P
Questions & answers
What is the delivery time of Schmersal AZM 300Z-I1-ST-1P2P safety locking device 103001437?
The article Schmersal AZM 300Z-I1-ST-1P2P safety locking device 103001437 is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Schmersal 103001437 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Schmersal AZM 300Z-I1-ST-1P2P safety locking device 103001437 always at the best possible price. We can give you a discount of 2% on Schmersal AZM 300Z-I1-ST-1P2P safety locking device 103001437 if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 4 pieces of Schmersal AZM 300Z-I1-ST-1P2P safety locking device 103001437 we can offer you a price of 461,00 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
