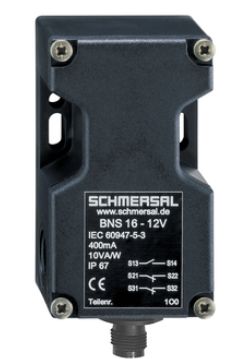

Schmersal BNS 16-12ZR-ST1 safety sensor 101214058
|
125,06 EUR |
|||||||||||
|
( 148,82 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 1134804 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 101214058 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Schmersal 101214058:
Product Description in English:
The BNS 16-12ZR-ST1 is a magnetic safety sensor designed for applications requiring reliable and precise switching functions. With a robust housing made of fiberglass-reinforced thermoplastic, this sensor offers high durability and an IP67 protection rating, making it suitable for demanding environments.
The sensor operates with a magnetic actuator and features two safety contacts (2 normally closed, NC) and one auxiliary contact (1 normally open, NO). A secure switching distance of 8 mm (Sao) and a release distance of 18 mm (Sar) ensure top-notch safety according to EN IEC 60947-5-3. The sensor requires an evaluation unit for operation.
Thanks to its compact design and centrally positioned M12 connector, the BNS 16-12ZR-ST1 is easy to install. It offers a mechanical lifespan of up to 25 million switching cycles and is ideal for non-flush mounting conditions.
Technical Data:
Product Type Designation:
- BNS 16-12ZR-ST1
Order Number:
- 101214058
EAN:
- 4030661397603
eCl@ss Numbers:
- Version 12.0: 27-27-44-01
- Version 11.0: 27-27-24-02
- Version 9.0: 27-27-24-02
ETIM Numbers:
- Version 7.0: EC002544
- Version 6.0: EC002544
Approvals:
- cULus
General Data:
- Standards: BG-GS-ET-14, EN IEC 60947-5-3
- Coding Level: Low
- Operating Principle: Magnetic
- Housing Material: Fiberglass-reinforced thermoplastic
- Gross Weight: 175 g
Mechanical Data:
- Lifespan: 25 million switching cycles
- Switching Distances: Sao: 8 mm, Sar: 18 mm
- Dimensions: Length: 39 mm, Width: 52 mm, Height: 90 mm
Electrical Data:
- Switching Voltage: Maximum 100 VAC / 100 VDC
- Switching Current: Maximum 0.4 A
- Power: Maximum 10 W
- Contacts: 1 normally open (NO), 2 normally closed (NC)
- Switching Frequency: Maximum 5 Hz
Environmental Conditions:
- Protection Class: IP67
- Operating Temperature: -25 ... +70 °C
Scope of Delivery:
- Actuator not included.
Accessories:
- Recommended Actuator: BPS 16
- Recommended Safety Control Devices: SRB-E-301ST, SRB-E-201LC
Note:
- Contact symbols are represented for a closed safety enclosure.
Type: BNS 16-12ZR-ST1
Questions & answers
What is the delivery time of Schmersal BNS 16-12ZR-ST1 safety sensor 101214058?
The article Schmersal BNS 16-12ZR-ST1 safety sensor 101214058 is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Schmersal 101214058 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Schmersal BNS 16-12ZR-ST1 safety sensor 101214058 always at the best possible price. We can give you a discount of 2% on Schmersal BNS 16-12ZR-ST1 safety sensor 101214058 if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 5 pieces of Schmersal BNS 16-12ZR-ST1 safety sensor 101214058 we can offer you a price of 123,18 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
