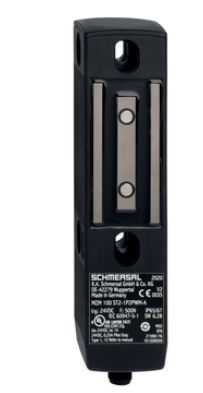

Schmersal MZM 100 ST2-1P2PWREM-A safety locking device 101211067
|
540,88 EUR |
|||||||||||
|
( 643,65 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 1320568 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 101211067 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Schmersal 101211067:
Product Description in English:
The MZM 100 ST2-1P2PWREM-A safety sensor is a highly reliable safety interlock with an inductive operating principle and universal coding, designed for securing protective devices in machines and systems. Compliant with EN ISO 13849-1, EN ISO 14119, EN IEC 60947-5-3, and EN IEC 61508, this sensor meets the highest functional safety requirements.
The sensor features integrated latching, locking monitoring, short-circuit and cross-circuit detection, and the ability to connect up to 31 devices in series. With two safe digital outputs and a diagnostic output, the sensor offers easy integration into existing safety systems. The LED status indicator provides users with immediate insights into the operational and fault status.
Technical Data:
Product Type:- MZM 100 ST2-1P2PWREM-A
Order Number:
- 101211067
EAN:
- 4030661389134
eCl@ss Numbers:
- Version 12.0: 27-27-26-03
- Version 11.0: 27-27-26-03
- Version 9.0: 27-27-26-03
ETIM Numbers:
- Version 7.0: EC002593
- Version 6.0: EC002593
Approvals:
- TÜV
- cULus
- UKCA
Standards:
- EN ISO 13849-1
- EN ISO 14119
- EN IEC 60947-5-3
- EN IEC 61508
Coding:
- Universal
Housing Material:
- Plastic, glass-fiber reinforced thermoplastic, self-extinguishing
Reaction Time:
- 150 ms
Risk Time:
- 150 ms
Gross Weight:
- 698 g
Features:
- Operating Current Principle: Yes
- Lock Monitoring: Yes
- Latching: Yes
- Short-Circuit Detection: Yes
- Cross-Circuit Detection: Yes
- Series Connection: Yes
Mechanical Data:
- Mechanical Life: at least 1,000,000 switching cycles
- Holding Force: typical 750 N, guaranteed 500 N
- Latching Force: 45 N to 115 N
Electrical Data:
- Operating Voltage: 24 VDC -15 % / +10 %
- No-Load Current: typically 100 mA
- Magnet Activation Current: 350 mA (average)
Indicator Lights:
Pin Assignment:
Scope of Delivery:
Accessories:
Note:
Type: MZM 100 ST2-1P2PWREM-A
Questions & answers
What is the delivery time of Schmersal MZM 100 ST2-1P2PWREM-A safety locking device 101211067?
The article Schmersal MZM 100 ST2-1P2PWREM-A safety locking device 101211067 is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Schmersal 101211067 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Schmersal MZM 100 ST2-1P2PWREM-A safety locking device 101211067 always at the best possible price. We can give you a discount of 2% on Schmersal MZM 100 ST2-1P2PWREM-A safety locking device 101211067 if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 3 pieces of Schmersal MZM 100 ST2-1P2PWREM-A safety locking device 101211067 we can offer you a price of 532,77 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
