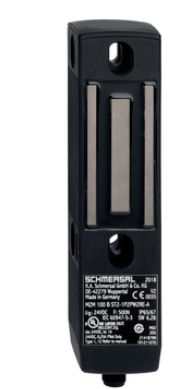

Schmersal MZM 100 ST2-1P2PWRE-A safety locking device 101211066
|
517,96 EUR |
|||||||||||
|
( 616,37 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 1320573 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 101211066 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Schmersal 101211066:
Product Description in English:
The MZM 100 ST2-1P2PWRE-A safety sensor is an innovative safety interlock system with an inductive operating principle and universal coding. The sensor ensures a high safety level according to EN ISO 13849-1, EN ISO 14119, and EN IEC 60947-5-3, achieving up to Performance Level (PL) e, Category 4, and SIL 3.
It provides a typical holding force of 750 N and supports series connections of up to 31 devices with serial diagnostics (SD). The robust sensor is made of glass-fiber reinforced thermoplastic, offering IP65 IP65 protection, making it dust- and water-resistant.
The device connects via an 8-pin M12 connector and features safe digital outputs as well as diagnostic outputs with short-circuit protection. The integrated LED indicator displays operational status, malfunctions, and power supply.
Technical Data:
Product Type:- MZM 100 ST2-1P2PWRE-A
Order Number:
- 101211066
EAN:
- 4030661389127
eCl@ss Numbers:
- Version 12.0: 27-27-26-03
- Version 11.0: 27-27-26-03
- Version 9.0: 27-27-26-03
ETIM Numbers:
- Version 7.0: EC002593
- Version 6.0: EC002593
Approvals:
- TÜV
- cULus
- UKCA
Standards:
- EN ISO 13849-1
- EN ISO 14119
- EN IEC 60947-5-3
- EN IEC 61508
Housing Material:
- Plastic, glass-fiber reinforced thermoplastic, self-extinguishing
Reaction Time:
- 150 ms
Risk Time:
- 150 ms
Gross Weight:
- 700 g
Features:
- Operating Current Principle: Yes
- Lock Monitoring: Yes
- Latching: Yes
- Short-Circuit Detection: Yes
- Cross-Circuit Detection: Yes
- Series Connection: Yes
Environmental Conditions:
Electrical Data:
- Operating Voltage: 24 VDC -15 % / +10 %
- No-Load Current: 100 mA
- Magnet Activation Current: 350 mA (average)
- External Fuse: 2A gG
Indicator Lights:
- Operating Status: Yellow LED
- Malfunction: Red LED
- Power Supply: Green LED
Pin Assignment:
Scope of Delivery:
Accessories:
Note:
Type: MZM 100 ST2-1P2PWRE-A
Questions & answers
What is the delivery time of Schmersal MZM 100 ST2-1P2PWRE-A safety locking device 101211066?
The article Schmersal MZM 100 ST2-1P2PWRE-A safety locking device 101211066 is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Schmersal 101211066 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Schmersal MZM 100 ST2-1P2PWRE-A safety locking device 101211066 always at the best possible price. We can give you a discount of 2% on Schmersal MZM 100 ST2-1P2PWRE-A safety locking device 101211066 if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 3 pieces of Schmersal MZM 100 ST2-1P2PWRE-A safety locking device 101211066 we can offer you a price of 510,19 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
