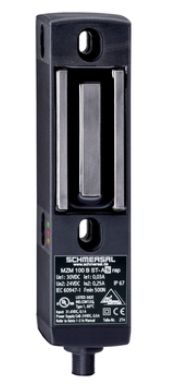

Schmersal MZM 100B-ST-AS REMAP AS-i safety locking device 101209551
|
543,95 EUR |
|||||||||||
|
( 647,30 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 1320626 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 101209551 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Schmersal 101209551:
Product Description in English:
The MZM 100 B ST-AS REMAP is an advanced safety interlock with inductive operating principles and universal coding. Its compatibility with the AS-Interface (ASi) enables seamless integration into industrial networks. This device ensures top-level safety standards with Performance Level e and Category 4, making it ideal for critical safety applications. With a typical holding force of 750 N and a compact, robust design made of glass-fiber-reinforced thermoplastic, it meets the demands of modern machine and plant safety concepts.
Technical Data:
Product Type Designation:
- MZM 100 B ST-AS REMAP
Order Number:
- 101209551
EAN:
- 4030661383200
Certifications:
- TÜV
- cULus
- ASi-SaW
- UKCA
Material Information:
- Housing Material: Plastic, glass-fiber-reinforced thermoplastic
General Properties:
- Coding Type: Universal Coding
- Coding Level: Low as per EN ISO 14119
- Operating Principle: Inductive
- Safety Functions: Yes
- Integrated Status Display: Yes
Safety Considerations:
- Standards: EN ISO 13849-1, EN IEC 61508
- Performance Level: Up to PL e
- Category: Up to Cat. 4
- SIL: Suitable for SIL 3 applications
- PFH Value: 5.00 x 10⁻⁹ /h
- Mechanical Lifespan: ≥ 1,000,000 operations
- Service Life: 20 years
Mechanical Data:
- Typical Holding Force: 750 N
- Maximum Holding Force: 500 N
- Dimensions (L x W x H): 40 mm x 40 mm x 179 mm
- Latching Force: 30-100 N
- Connection: M12, 4-pin, A-coded
Electrical Data:
- AS-i Operating Voltage: 26.5 ... 31.6 VDC
- Auxiliary Voltage Current Consumption: 600 mA
- AS-i Specification: Safety Slave, Profile S-7.B.F.E
- Max. Switching Frequency: 1 Hz
Environmental Conditions:
- Protection Class: IP67
- Ambient Temperature: -25 °C to +55 °C
- Maximum Relative Humidity: 95 % (non-condensing)
Features:
- AS-i communication for flexible control
- LEDs for status indication (operation, device error)
- Suitable for sliding, removable, or rotating protective devices
Included Items:
- Actuator not included
Accessories:
- Recommended Actuator: MZM 100-B1.1
Notes:
- Safety interlocks with current-operated principles should only be used following a thorough risk assessment.
- Safety outputs can be reactivated without opening the protective device if the actuator unit remains inserted.
Type: MZM 100 B ST-AS REMAP
