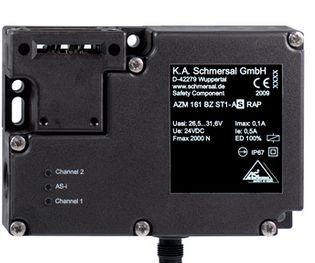

Schmersal AZM 161 Z ST1-AS RA AS-i safety locking device 101209104

The AZM 161 Z ST1-AS RA from K.A. Schmersal GmbH & Co. KG is an electromechanical safety interlock with AS-Interface (AS-i) Safety connectivity. It is used to securely monitor and lock movable, removable, or rotating protective devices to prevent access to hazardous areas of machinery.

The interlock operates on a power-to-lock principle and offers a maximum locking force of 2,600 N. The housing is made of fiber-reinforced thermoplastic, making it highly durable and resistant to mechanical stress. A manual release mechanism allows the lock to be manually opened during maintenance or setup. The device supports AS-Interface Safety-at-Work (ASi-SaW) and features dynamic code transmission for secure communication with control systems.

It complies with international safety standards, including EN ISO 13849-1 and EN IEC 61508, and achieves various Performance Levels (PL c, d, e) and Safety Integrity Levels (SIL).

The actuator is not included and must be ordered separately.

Technical Data (English):

Product Type Designation:

• AZM 161 Z ST1-AS RA

Item Number (Order Number):

• 101209104

EAN (European Article Number):

• 4030661396477

eCl@ss Number:

• Version 12.0: 27-27-26-03
• Version 11.0: 27-27-26-03
• Version 9.0: 27-27-26-03

ETIM Number:

• Version 7.0: EC002593
• Version 6.0: EC002593

Approvals:

• TÜV
• cULus
• ASi-SaW

General Data:

• Operating Principle: Electromechanical
• Coding Level: Low (according to EN ISO 14119)
• Housing Material: Fiber-reinforced thermoplastic
• Reaction Time: Max. 100 ms
• Gross Weight: 465 g

Features:

• Power-to-lock principle
• Lock monitoring
• Manual release mechanism
• Integrated status display
• Approaches from 3 directions

Safety Assessment:

• Performance Level: PL c to PL e
• Category: 1, 3
• PFH Value: 1.14 x 10⁻⁶ /h (PL c), 1.01 x 10⁻⁷ /h (PL d)
• SIL: 1, 2

Mechanical Data:

• Mechanical Lifetime: 1,000,000 operations
• Locking Force: 2,600 N
• Latching Force: 30 N

Connection Technology:

• Connector Type: M12, 4-pin, A-coded

Dimensions:

• Length: 30 mm
• Width: 130 mm
• Height: 90 mm

Environmental Conditions:

• Protection Class: IP67
• Operating Temperature: -25 ... +60 °C
• Storage Temperature: -25 ... +85 °C

Scope of Delivery:

• Actuator not included

Notes:

• Use power-to-lock safety interlocks only in special cases after careful risk assessment
• Manual release with M5 triangular key (sold separately)

Type: AZM 161 Z ST1-AS RA
