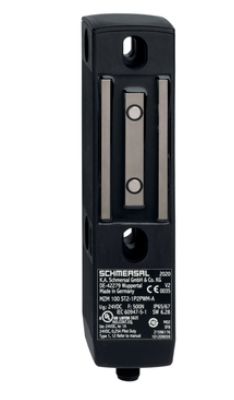

Schmersal MZM 100 ST2-1P2PWM-A safety locking device 101209059
|
540,88 EUR |
|||||||||||
|
( 643,65 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 1320612 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 101209059 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Schmersal 101209059:
Product Description in English:
The MZM 100 ST2-1P2PWM-A safety sensor is a dependable safety interlock with an inductive operating principle and universal coding, making it ideal for use in safety-critical industrial applications. The sensor complies with EN ISO 13849-1, EN ISO 14119, EN IEC 60947-5-3, and EN IEC 61508, ensuring maximum protection for personnel and machinery.
With its locking monitoring, latching function, and short-circuit and cross-circuit detection, the sensor provides an effective solution for safeguarding protective devices. The sensor supports series connection of up to 31 devices and features LED status indicators for quick identification of operating and fault conditions. It has two safe digital outputs and one diagnostic output.
Technical Data:
Product Type:- MZM 100 ST2-1P2PWM-A
Order Number:
- 101209059
EAN:
- 4030661390154
eCl@ss Numbers:
- Version 12.0: 27-27-26-03
- Version 11.0: 27-27-26-03
- Version 9.0: 27-27-26-03
ETIM Numbers:
- Version 7.0: EC002593
- Version 6.0: EC002593
Approvals:
- TÜV
- cULus
- UKCA
Standards:
- EN ISO 13849-1
- EN ISO 14119
- EN IEC 60947-5-3
- EN IEC 61508
Coding:
- Universal
Housing Material:
- Plastic, glass-fiber reinforced thermoplastic, self-extinguishing
Reaction Time:
- 150 ms
Risk Time:
- 150 ms
Gross Weight:
- 699 g
Features:
- Operating Current Principle: Yes
- Lock Monitoring: Yes
- Latching: Yes
- Short-Circuit Detection: Yes
- Cross-Circuit Detection: Yes
- Series Connection: Yes
Mechanical Data:
- Mechanical Life: at least 1,000,000 switching cycles
- Holding Force: typical 750 N, guaranteed 500 N
- Latching Force: 15 N
Electrical Data:
- Operating Voltage: 24 VDC -15 % / +10 %
- No-Load Current: typically 100 mA
- Magnet Activation Current: 350 mA (average)
Indicator Lights:
Pin Assignment:
Scope of Delivery:
Accessories:
Note:
Type: MZM 100 ST2-1P2PWM-A
