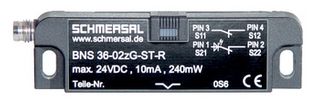

Schmersal BNS 36-02ZG-ST-R safety sensor 101193168
|
62,82 EUR |
|||||||||||
|
( 74,76 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 1237524 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 101193168 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Schmersal 101193168:
Product Description in English:
The BNS 36-02ZG-ST-R is a compact magnetic safety sensor featuring a fiberglass-reinforced plastic housing, which is both lightweight and durable. Operating on a magnetic principle, it is optimized for flush mounting. With an IP67 protection rating and a long lifespan of up to 25 million switching cycles, it is ideal for industrial applications in demanding environments.
The sensor includes two safety contacts (2 normally closed) and an integrated LED status indicator, which lights up when the protective device is correctly closed. Axial tolerances allow for horizontal or vertical misalignment between the sensor and actuator, as long as the switching distance is maintained.
The convenient M8 (4-pin) connector with snap-locking ensures easy installation. The sensor operates reliably in temperatures from -25 °C to +70 °C and is optimized for right-hand hinged doors with frontal movement toward the active surface.
Recommended accessories include the BPS 36-2 actuator and safety relay modules such as the SRB-E-301ST or SRB-E-201LC.
Technical Data:
Product Type Designation:
- BNS 36-02ZG-ST-R
Order Number:
- 101193168
EAN:
- 4030661359700
eCl@ss Numbers:
- Version 12.0: 27-27-44-01
- Version 11.0: 27-27-24-02
- Version 9.0: 27-27-24-02
ETIM Numbers:
- Version 7.0: EC002544
- Version 6.0: EC002544
Approvals:
- cULus
General Data:
- Standards: BG-GS-ET-14, EN IEC 60947-5-3
- Operating Principle: Magnetic
- Housing Material: Fiberglass-reinforced thermoplastic
- Gross Weight: 30 g
Mechanical Data:
- Lifespan: 25,000,000 switching cycles
- Assured Switching Distance ON (Sao): 7 mm
- Assured Switching Distance OFF (Sar): 17 mm
- Dimensions: 13 mm x 88 mm x 25 mm
Electrical Data:
- Maximum Switching Voltage: 24 VDC
- Maximum Switching Power: 0.24 W
- Contact Elements: 2 Normally Closed (NC)
- Maximum Switching Frequency: 5 Hz
Environmental Conditions:
- Protection Class: IP67
- Operating Temperature: -25 ... +70 °C
Scope of Delivery:
- Actuator not included.
Accessories:
- Recommended Actuator: BPS 36-2
- Recommended Safety Relay Modules: SRB-E-301ST, SRB-E-201LC
Note:
- The LED indicates when the protective door is closed.
- Pin configurations for versions with integrated connectors are labeled.
Type: BNS 36-02ZG-ST-R
