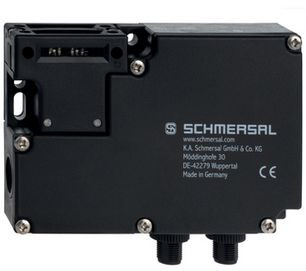

Schmersal AZM 161ST-11/12RKA-024 safety locking device 101192434
|
326,10 EUR |
|||||||||||
|
( 388,06 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 1237117 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 101192434 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Schmersal 101192434:
Product Description in English:
The AZM 161ST-11/12RKA-024 is an electromechanical safety switch designed for applications requiring high safety standards and reliability. Featuring a fiberglass-reinforced, self-extinguishing plastic housing, this switch provides an IP67 protection rating, making it suitable for demanding environments.
The switch operates on the working current principle and includes three safety contacts and two auxiliary contacts. With a maximum retention force of 2,600 N and a mechanical lifespan of at least 1,000,000 switching cycles, the switch is robust and durable. Flexible installation is supported by built-in connectors (M12, 4-pin and 8-pin, A-coding), ensuring quick and secure connections.
An integrated auxiliary release can be operated using a separately available M5 triangular key, simplifying maintenance and setup tasks. The switch is designed for sliding, removable, and rotating protective devices and complies with EN ISO 13849-1 and EN IEC 60947-5-1 standards.
Technical Data:
Product Type Designation:
- AZM 161ST-11/12RKA-024
Order Number:
- 101192434
EAN:
- 4030661352343
eCl@ss Numbers:
- Version 12.0: 27-27-26-03
- Version 11.0: 27-27-26-03
- Version 9.0: 27-27-26-03
ETIM Numbers:
- Version 7.0: EC002593
- Version 6.0: EC002593
Approvals:
- IFA
- cULus
- CCC
General Data:
- Standards: EN ISO 13849-1, EN ISO 14119, EN IEC 60947-5-1
- Operating Principle: Electromechanical
- Housing Material: Fiberglass-reinforced thermoplastic
- Gross Weight: 420 g
Mechanical Data:
- Lifespan: At least 1,000,000 switching cycles
- Retention Force: Up to 2,600 N
- Dimensions: Length: 30 mm, Width: 130 mm, Height: 90 mm
Electrical Data:
- Thermal Continuous Current: 2 A
- Operating Voltage: 24 VAC/DC
- Contact Elements: Normally Open (NO), Normally Closed (NC)
- Power Consumption: Maximum 10 W
Environmental Conditions:
- Protection Class: IP67
- Operating Temperature: -25 ... +60 °C
Scope of Delivery:
- Actuator not included.
Note:
- Auxiliary release for maintenance and setup with M5 triangular key (available separately).
- Suitable for sliding, removable, and rotating protective devices.
Type: AZM 161ST-11/12RKA-024
Questions & answers
What is the delivery time of Schmersal AZM 161ST-11/12RKA-024 safety locking device 101192434?
The article Schmersal AZM 161ST-11/12RKA-024 safety locking device 101192434 is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Schmersal 101192434 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Schmersal AZM 161ST-11/12RKA-024 safety locking device 101192434 always at the best possible price. We can give you a discount of 2% on Schmersal AZM 161ST-11/12RKA-024 safety locking device 101192434 if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 4 pieces of Schmersal AZM 161ST-11/12RKA-024 safety locking device 101192434 we can offer you a price of 316,32 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
