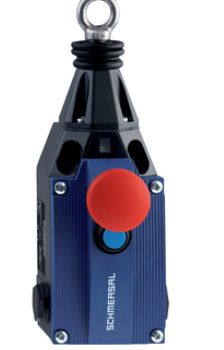

Schmersal 101186147 pull-wire switches, ZQ-900 N
|
200,68 EUR |
|||||||||||
|
( 238,81 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 588682 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 101186147 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Schmersal 101186147:
Order Data:
Product Type:
ZQ 900-02NArticle Number:
101186147EAN (European Article Number):
4030661325941eCl@ss Number, Version 12.0:
27-37-12-01
eCl@ss Number, Version 11.0:
27-37-12-01
eCl@ss Number, Version 9.0:
27-37-12-01
ETIM Number, Version 7.0:
EC002033
ETIM Number, Version 6.0:
EC002033
Approvals - Regulations:
Certificates:
cULus
CCC
General Data:
Regulations:
EN ISO 13850
EN IEC 60947-5-1
EN IEC 60947-5-5
Housing Material:
Metal, Zinc Die-CastHousing Coating Material:
PaintedHousing Cover Material:
Plastic, ThermoplasticRope Length, Maximum:
75 m
Gross Weight:
1,248 gGeneral Data - Features:
Emergency Stop Button:
Yes
Indicator Light:
NoNumber of Safety Contacts:
2Safety Considerations:
Regulations:
EN ISO 13849-1
Service Life:
20 yearsSafety Consideration - Safety Outputs:
B10D Normally Closed (NC):
100,000 switching cycles
Mechanical Data:
Minimum Mechanical Life:
1,000,000 switching cycles
Mechanical Data - Connection Technology:
Connection Type:
Screw Connection M20 x 1.5
Minimum Conductor Cross-Section:
0.75 mm²Maximum Conductor Cross-Section:
2.5 mm²Note:
All details include ferrules.Mechanical Data - Dimensions:
Sensor Length:
97.2 mm
Sensor Width:
71.5 mmSensor Height, Minimum:
220.3 mm
Sensor Height, Maximum:
236.3 mm
Environmental Conditions:
Protection Class:
IP65
Ambient Temperature:
-25 ... +70 °CMaximum Relative Humidity:
95 %Environmental Conditions - Insulation Ratings:
Rated Insulation Voltage Ui:
500 V
Rated Impulse Withstand Voltage Uimp:
6 kVElectrical Data:
Thermal Continuous Current:
6 A
Voltage, Utilization Category AC-15:
230 VAC
Current, Utilization Category AC-15:
4 A
Voltage, Utilization Category DC-13:
24 VDC
Current, Utilization Category DC-13:
1 A
Switching Element:
Normally Closed (NC)Switching Principle:
Snap-ActionContact Material, Electrical:
Silver
Notes:
- For rope lengths over 10 m, rope supports are required every 3 to 5 m.
- Recommended rope length for rope-pull emergency switches depending on the ambient temperature range.
- After installation, the rope should be pulled forcefully several times to address deformation of the thimbles. Subsequently, the rope should be retensioned using the eye bolt or turnbuckle.
- Rope supports are required every 2 to 5 meters, see accessories.
- The screw-in indicator light G24-M20 must be ordered separately, see accessories.
Type: ZQ900-02-N
