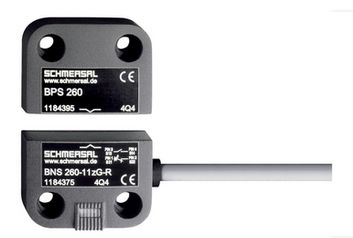

Schmersal BNS 260-11/01Z-R safety sensor 101184372
|
80,08 EUR |
|||||||||||
|
( 95,30 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 1241199 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 101184372 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Schmersal 101184372:
Product description in English:
The BNS 260-11/01Z-R magnetic safety sensor is a robust and reliable solution for safety-critical applications in industrial environments. It is specifically designed for right-hinged doors and tolerates a certain offset between the sensor and actuator. The sensor is rated according to EN ISO 13849-1 for a service life of up to 20 years and 25,000,000 switching cycles (B10D).
With its high IP67 protection class and fiberglass-reinforced thermoplastic housing, it is highly resistant to environmental influences. The sensor includes one normally open (NO) and two normally closed (NC) contacts, with a maximum switching voltage of 75 VDC.
Technical specifications:
Ordering information:
- Product designation: BNS 260-11/01Z-R
- Article number: 101184372
- EAN: 4030661321707
- eCl@ss number: 27-27-44-01
- ETIM number: EC002544
Approvals and standards:
- Certifications: cULus
- Standards: BG-GS-ET-14, EN IEC 60947-5-3
General specifications:
- Coding level: Low
- Operating principle: Magnetic
- Material: Fiberglass-reinforced thermoplastic
- Gross weight: 56 g
Mechanical specifications:
- Door hinge: Right
- Dimensions: Length 13 mm, Width 26 mm, Height 36 mm
- Switching distances: - Secured switching distance ON (Sao): 5 mm
- Connection: Cable, cable length 1 m
- Wire cross-section: 0.25 mm² / 23 AWG
- Movement direction: Frontal to the active surface
- Secured switching distance OFF (Sar): 15 mm
Electrical specifications:
- Switching voltage: max. 75 VDC
- Switching current: max. 0.4 A
- Switching power: max. 10 VA
- Switching elements: 1 normally open (NO), 2 normally closed (NC)
- Switching frequency: max. 5 Hz
Environmental conditions:
- Protection class: IP67
- Operating temperature: -25 °C to +70 °C
- Vibration resistance: 10–55 Hz, amplitude 1 mm
- Shock resistance: 30 g / 11 ms
Delivery:
- Actuator not included in the scope of delivery.
Accessories:
- Recommended actuators: BPS 260
- Recommended safety control units: SRB-E-301ST, SRB-E-201LC
Notes:
- Contact assignments for versions with or without LEDs are identical.
- Contact symbols are shown with the safety device closed.
Type: BNS 260-11/01Z-R
Questions & answers
What is the delivery time of Schmersal BNS 260-11/01Z-R safety sensor 101184372?
The article Schmersal BNS 260-11/01Z-R safety sensor 101184372 is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Schmersal 101184372 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Schmersal BNS 260-11/01Z-R safety sensor 101184372 always at the best possible price. We can give you a discount of 2% on Schmersal BNS 260-11/01Z-R safety sensor 101184372 if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 6 pieces of Schmersal BNS 260-11/01Z-R safety sensor 101184372 we can offer you a price of 78,88 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
