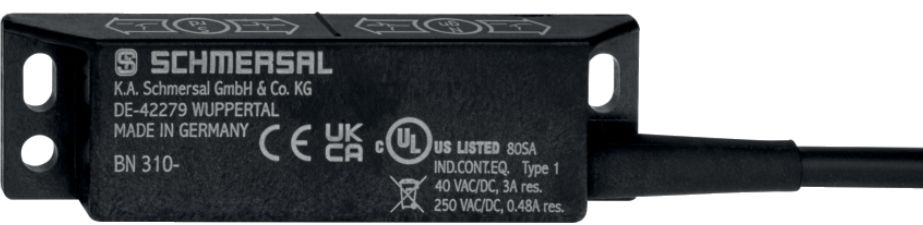

Schmersal BN 310-2RZ magnetic switch 101182138
|
60,95 EUR |
|||||||||||
|
( 72,53 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 662826 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 101182138 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Schmersal 101182138:
The switch operates on a magnetic principle and features a latching function with two latching contacts. It offers a minimum mechanical lifespan of 1 billion switching cycles, making it suitable for applications with high switching frequencies.
The switching distance depends on the actuator magnet used and can reach up to 60 mm. The BN 310-2RZ comes with a 1-meter connection cable and offers a high protection rating of IP67, ensuring reliable performance in dusty or humid environments.
The switch supports switching currents up to 3 A and switching power up to 30 W / 30 VA. The actuator is not included and must be ordered separately.
Technical Data – BN 310-2RZ:
Order Information:
Product Type Designation: BN 310-2RZ
Article Number: 101182138
EAN: 4030661316970
Approvals:
Certificates: cULus
General Data:
Operating Principle: Magnetic
Housing Design: Rectangular
Housing Material: Plastic, Glass Fiber-Reinforced Thermoplastic
Gross Weight: 50 g
Features:
Latching: Yes
Suitable for Elevators: No
Number of Latching Contacts: 2
Mechanical Data:
Actuation Element: Magnet
Minimum Mechanical Lifespan: 1,000,000,000 switching cycles
Maximum Actuation Speed: 18 m/s
Mounting: Housing with slotted holes
Switching Distances According to EN IEC 60947-5-3:
Switching Distance: Up to 60 mm (depending on actuator magnet)
Repeat Accuracy R: 0.3 mm
Connection Technology:
Cable Length: 1 m
Conductor Cross-Section: 0.75 mm² / 18 AWG
Cable Jacket Material: H03VV-F
Dimensions:
Sensor Length: 13 mm
Sensor Width: 88 mm
Sensor Height: 25 mm
Environmental Conditions:
Protection Rating: IP67
Ambient Temperature: -25 °C to +75 °C
Vibration Resistance: 10 … 55 Hz, Amplitude 1 mm
Shock Resistance: 30 g / 11 ms
Electrical Data:
Maximum Switching Current: 3 A
Maximum Switching Power: 30 W / 30 VA
Digital Outputs:
Switching Elements: Reed Contact
Scope of Delivery:
The actuator is not included.
Recommended Actuators:
BP 10 S, BP 20 S, BP 15 S, BP 31 S, BP 34 S, BP 21 S
BP 10 N, BP 20 N, BP 15 N, BP 31 N, BP 34 N, BP 21 N
Various combinations such as 2x BP 11 S, 2x BP 15/2 N, etc.
Notes:
The normally open or normally closed function depends on the actuation direction, actuator magnet, and magnet polarity.
Ensure the color alignment between the switch and actuator: Red (S) on Red (S) and Green (N) on Green (N).
The switch must be mounted on iron with a non-magnetic spacer of at least 20 mm.
Type: BN 310-2RZ
